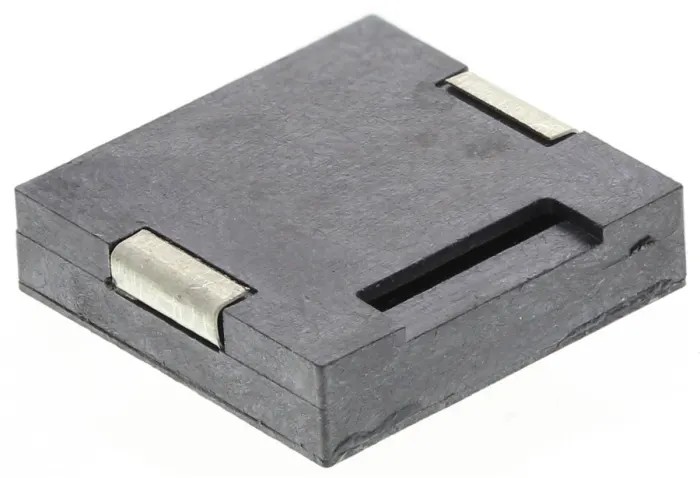

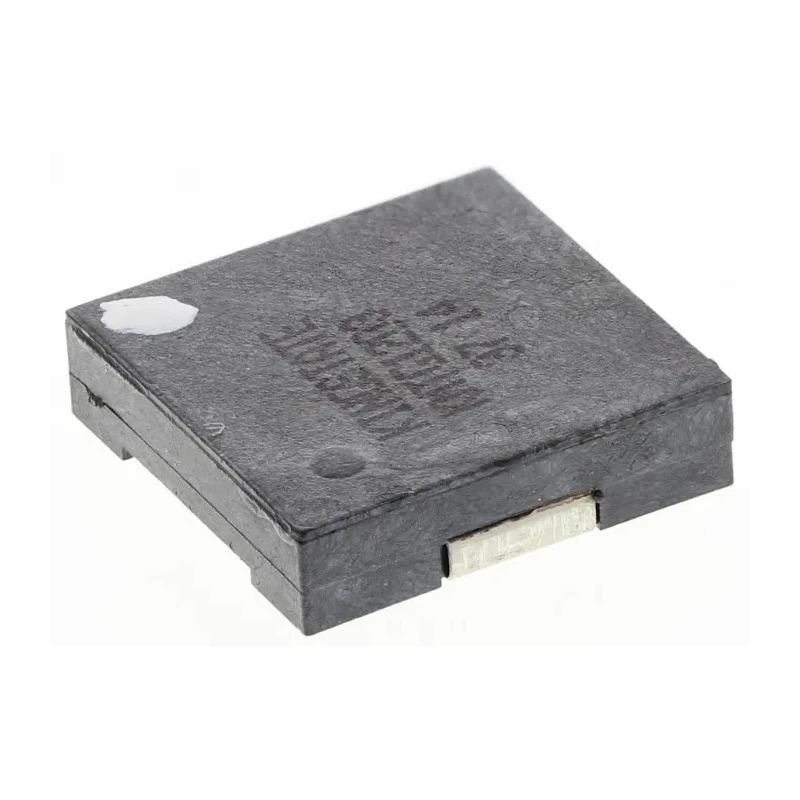

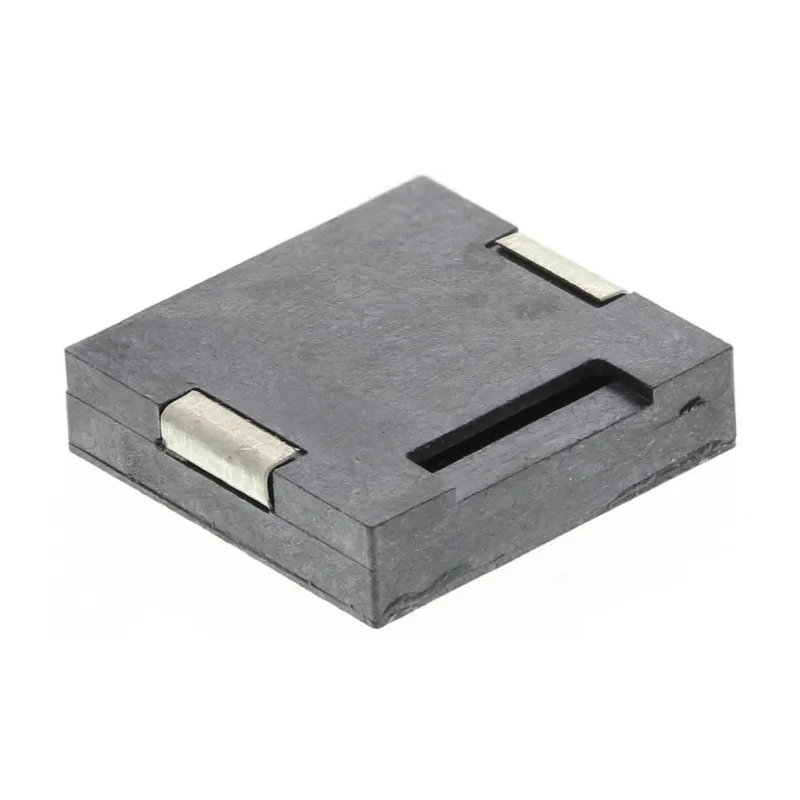

RS PRO 81 dB Surface Mount Square Wave External Drive 3 mm Height 12 mm Depth Piezo Buzzer Component 754-1980
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Sound Level | 81dB |
| Height | 3mm |
| Length | 12mm |
| Model | 754-1980 |
| Depth | 12mm |
| Drive Type | External |
| Mount Type | Surface |
| Maximum Operating Temperature | 120°C |
| Capacitance | 16nF |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Maximum Frequency | 4kHz |
| Maximum Supply Voltage | 25V ac |
| Supply Current | 5mA |
| Tone Type | Square Wave |
| Minimum Frequency | 4kHz |
Key Features
- Piezo buzzer designed for surface mount installation.
- Operates at maximum supply voltage of 25V AC for safe performance.
- Sound level reaches up to 81 dB with square wave tone type.
- Works reliably within temperature range from -40°C to 120°C.
- Compact design features 3 mm height and 12 mm length and depth dimensions.
- Requires low supply current of 5 mA, ensuring energy efficiency.
- Construction adheres to RoHS standards for material safety.
- Suitable for industrial and commercial electronic systems requiring audio signaling.
Product Description
RS PRO 754-1980 Piezo Buzzer Component is a precision-engineered surface mount device designed to provide clear audio notifications with a high sound level of 81 dB. Operating with an external drive system, this buzzer emits a square wave tone at a fixed frequency of 4 kHz, making it ideal for integration into electronic circuits requiring audible signaling.
The compact 3 mm height and 12 mm length and depth dimensions allow seamless mounting in space-constrained electronic equipment such as mobile printers, payment terminals, and digital still cameras. The device is capable of withstanding operational temperatures between -40°C and 120°C, offering durability and reliability in various industrial or commercial environments.
This piezo buzzer consumes low supply current at 5 mA, enhancing energy efficiency while maintaining strong acoustic output. Compliance with RoHS standards assures users of the product's environmentally safe construction and lead-free manufacturing process.
Designed for surface mount installation in electronic assemblies. Maximum supply voltage of 25V AC ensures appropriate device protection. Loud sound output at 81 dB for effective signaling. Square wave tone type delivering consistent signal clarity.
Robust temperature operating range from -40°C to 120°C. Small form factor supporting compact device design. Low power consumption with 5 mA supply current. Uniform frequency output of 4 kHz for stable sound. Manufactured in Taiwan with high quality standards.
Ideal for applications in Industrial Electronics, Automation, HVAC Systems, Security Systems, and Consumer Electronics.
This RS PRO product is a reliable choice for engineers and manufacturers seeking a durable and efficient piezo buzzer for their electronic components lineup. Browse the Electronics Components category on EnvMart for similar high-quality devices.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 25V AC, ensuring appropriate device protection during operation.
This piezo buzzer produces a sound level of 81 dB, providing effective audio signaling.
It operates reliably within a temperature range from -40°C to 120°C, suitable for various environments.
The buzzer emits a square wave tone type at a fixed frequency of 4 kHz, ensuring consistent signal clarity.
The dimensions of this model are 3 mm in height and 12 mm in both length and depth, allowing for compact installation.
This model requires a low supply current of 5 mA, enhancing its energy efficiency during operation.
Yes, it adheres to RoHS standards, ensuring environmentally safe construction and lead-free manufacturing.
It operates with an external drive system, which is essential for its audio output functionality.
This buzzer is suitable for applications in industrial electronics, automation, HVAC systems, security systems, and consumer electronics.
This piezo buzzer is manufactured in Taiwan, adhering to high quality standards.
The capacitance of this model is 16nF, which is relevant for its electrical characteristics.
This model is designed for surface mount installation, making it suitable for compact electronic assemblies.
