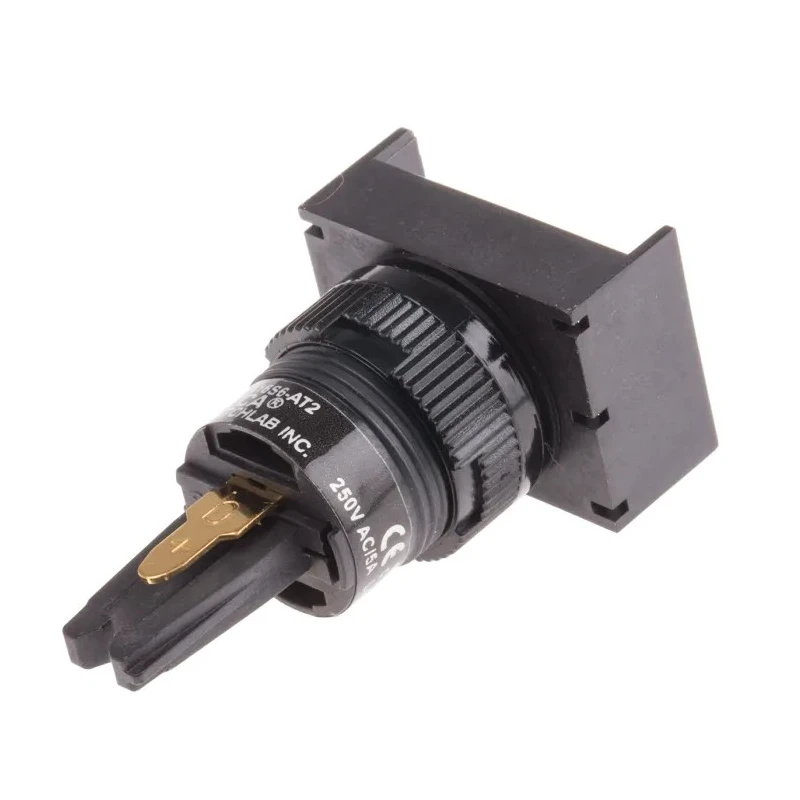

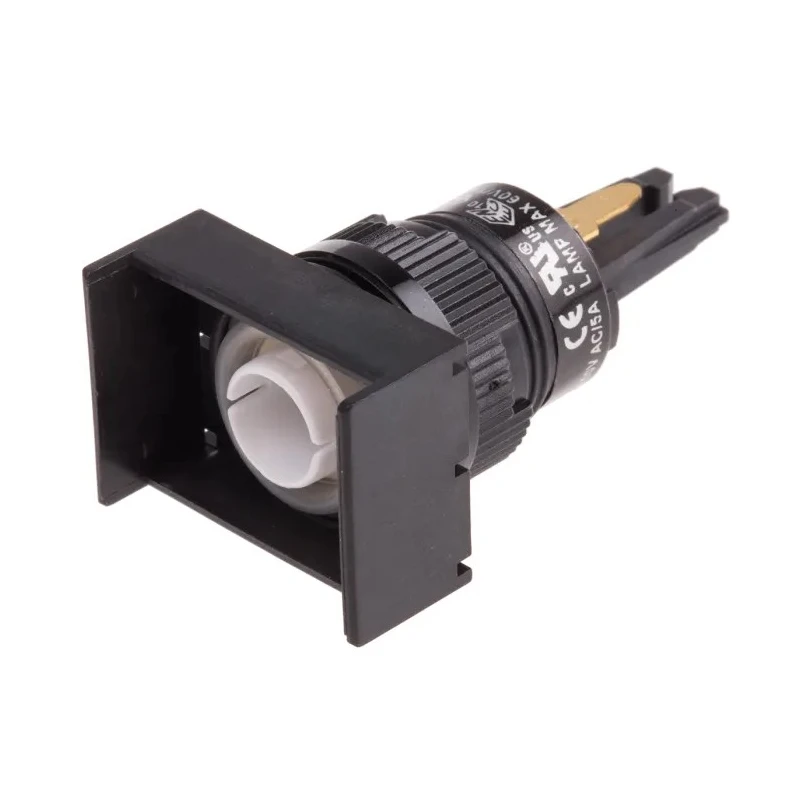

RS PRO Illuminated Push Button Switch, Latching, 16 mm Panel Cutout, IP65, 125 V ac 745-2451
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Model | 745-2451 |
| IP Rating | IP65 |
| Mount Type | Panel |
| Panel Cutout Size | 16 mm |
| Terminal type | Tab |
| Standards/Approvals | CE, cUL, VDE, UL |
| Switch Operation | Latching |
| Actuator Colour | Black |
| Actuator Style | High |
| Switch Contact Current | 5A |
| Contact AC Voltage | 125V ac |
Key Features
- Equipped with a black high-style actuator for precise operation.
- Designed for latching switch operation with illumination capability.
- Panel mount type with 16 mm diameter cutout and IP65 waterproof rating.
- Rated for 125 V ac contact voltage and 5A switch contact current.
- Fitted with tab terminal type ensuring easy connectivity.
- Certified to CE, cUL, VDE, and UL standards for quality and safety.
- Constructed for panel thickness between 0.5 mm and 5 mm.
- Operating temperature range from -25 to +55°C without lamp.
Product Description
RS PRO 745-2451 Illuminated Push Button Switch is a robust, latching panel-mounted switch designed to fit industry standard 16 mm diameter cut-outs. It offers IP65 waterproof sealing, making it ideal for use in industrial and commercial automation applications requiring reliable and durable switch operation.
This push button switch features a high style black actuator for tactile feedback and easy operation. The latching switch operation ensures the button remains in position until manually reset, suitable for control panels requiring maintained activation.
The unit complies with international standards including CE, cUL, VDE, and UL, ensuring safety and quality in electrical control environments. The switch operates at a contact AC voltage of 125 V and supports switch contact current up to 5A, making it suitable for moderate electrical loads.
It is quick and easy to assemble with modular, sub-assembled construction and supports panel thickness from 0.5 to 5 mm. The push button switch is equipped with tab terminals sized 2.8 x 0.5 mm, allowing direct soldering or plug-in receptacles for versatile installation.
RS PRO's ADA16S series includes various illuminated and non-illuminated push button switches and pilot light indicators, designed to match various operational needs. This model ensures enhanced protection against dust and water ingress (IP65), suitable for harsh environments.
Equipped with a black high-style actuator for precise operation. Supports latching operation with illumination. Panel mounted with 16 mm cutout diameter and IP65 sealing. Rated 125 V ac and 5A switch contact current. Tab terminal connection for easy wiring.
Certified to CE, cUL, VDE, and UL standards. Suitable for panel thickness between 0.5 to 5 mm. Operating temperature range from -25 to +55°C without lamp. Manufactured in Taiwan, Province Of China.
This illuminated push button switch is widely used in industrial control panels, automation systems, and electrical machinery requiring robust and reliable user input devices. It fits applications where waterproof protection, standard sizing, and certified electrical ratings are essential.
Explore EnvMart's extensive range of RS PRO Push Button Switches & Components for compatible contact blocks, lenses, and accessories to customize your control solutions further.
Explore more products in our Push Button Switches & Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The illuminated push button switch is rated for a contact AC voltage of 125 V.
This model supports a maximum switch contact current of 5A.
It has an IP65 rating, providing protection against dust and water ingress.
The required panel cutout size for this switch is 16 mm in diameter.
It is fitted with tab terminals sized 2.8 x 0.5 mm, allowing for easy connectivity.
The operating temperature range is from -25 to +55°C without the lamp.
This switch is certified to CE, cUL, VDE, and UL standards.
It features modular, sub-assembled construction for quick and easy assembly.
The switch has a high-style actuator in black for tactile feedback and easy operation.
It can accommodate panel thicknesses ranging from 0.5 mm to 5 mm.
It is widely used in industrial control panels, automation systems, and electrical machinery.
This model features latching switch operation, meaning it remains in position until manually reset.
