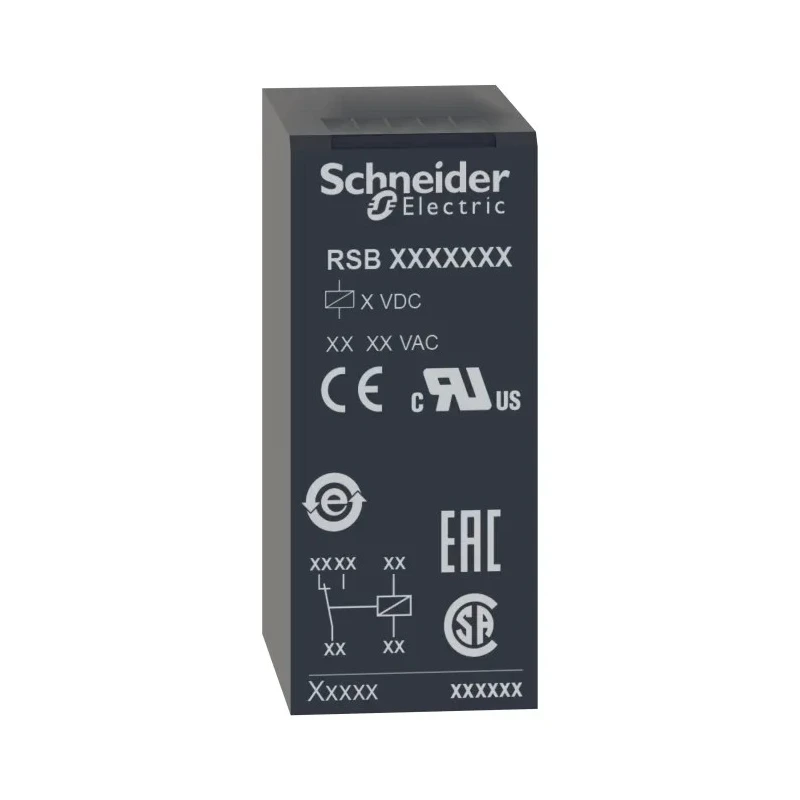

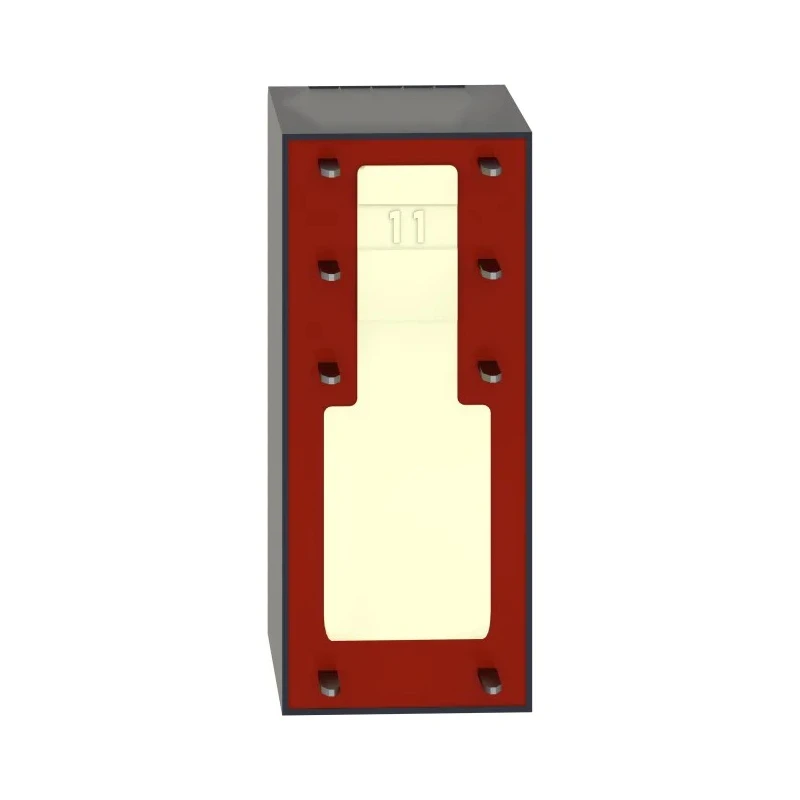

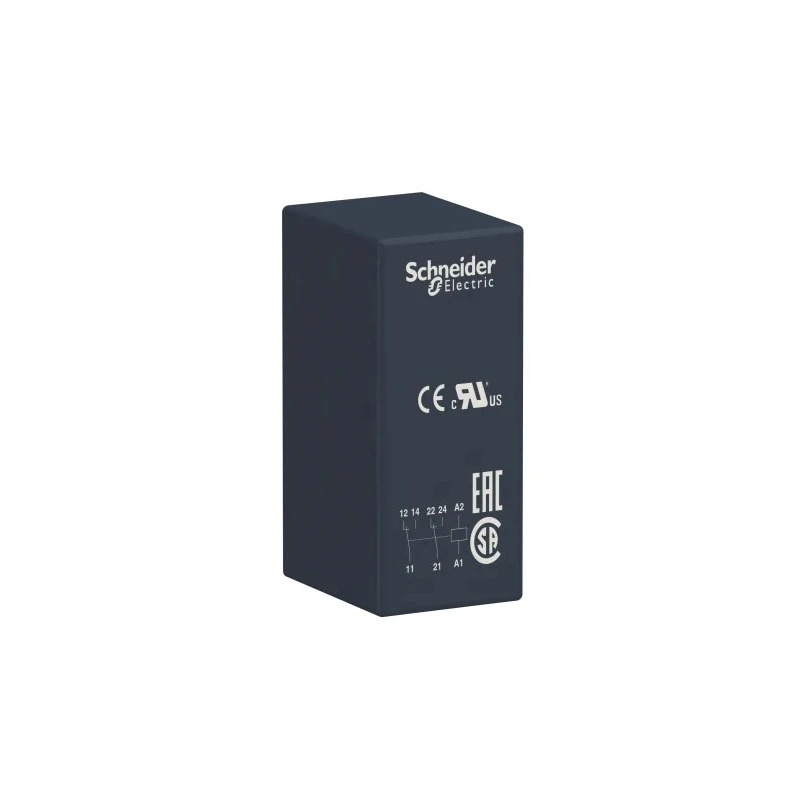

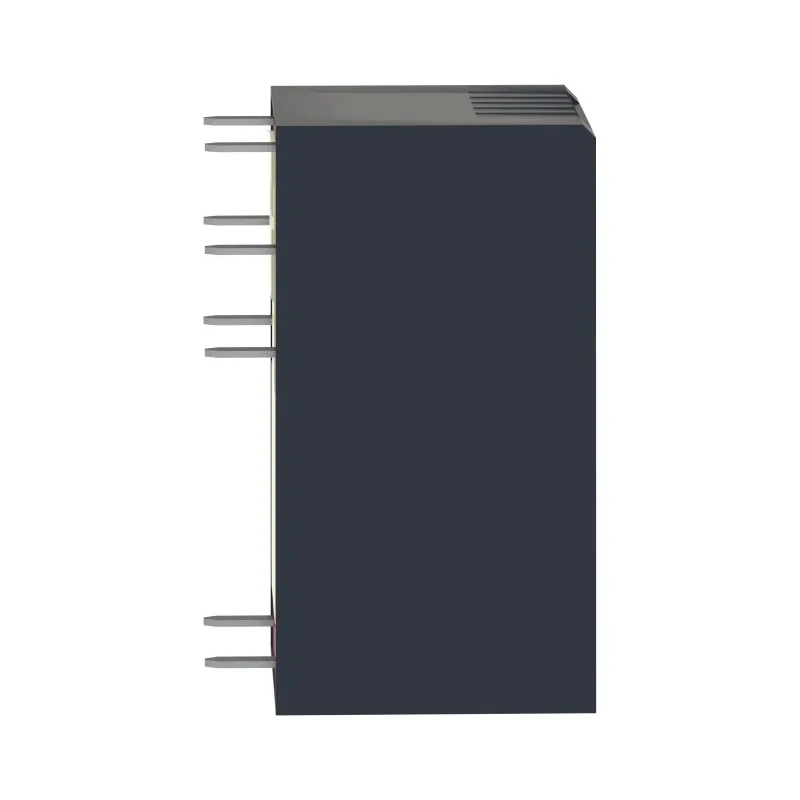

Schneider Electric Power Relay PCB Mount DPDT, 24V DC Coil Voltage, 8A Switching Current RSB2A080BD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Height | 15.7mm |
| Length | 29mm |
| Model | RSB2A080BD |
| Width | 12.5mm |
| Mount Type | PCB |
| Series | Harmony Relay RSB |
| Contact Configuration | DPDT |
| Switching Current | 8A |
| Terminal type | Through Hole |
| Standards/Approvals | EN, UL, CSA |
| Coil Voltage | 24V dc |
| Better World Claim | Designed for Disassembly |
| Schneider Electric Telefast Solid State Interface Relay, Control | 24V DIN RailBrand: Schneider Electric |
Key Features
- Features dual pole double throw (DPDT) silver alloy contacts for enhanced durability.
- Designed for automated control systems, industrial machinery, HVAC, and lighting circuits.
- Compact dimensions suit installation in space-restricted environments.
- Supports both resistive and inductive loads up to 8A switching capacity.
- Compliant with EN, UL, and CSA standards ensuring quality and safety.
- Through hole terminal type with plug-in mounting for easy PCB installation.
- Operates reliably in temperature ranges from -40°C to 85°C.
- Better World product designed for disassembly to support sustainability.
Product Description
Schneider Electric RSB2A080BD power relay is a part of the Harmony Relay RSB series designed for demanding industrial and automation applications requiring reliable switching. Operating at 24V DC coil voltage and delivering an 8A switching current, this DPDT relay provides dual pole double throw contacts made of silver alloy, enhancing contact durability and performance.
Its compact dimensions of 29mm length, 12.5mm width, and 15.7mm height make it suitable for installations in restricted spaces and standard PCB mounting environments. The through hole terminal and plug-in type mount simplify assembly and replacement.
Certified to EN, UL, and CSA standards, it ensures safety and quality compliance. This relay supports switching of both resistive and inductive loads, making it versatile for industrial machinery, HVAC systems, lighting control circuits, process automation, and other automated control systems.
The relay is rated for operation between -40°C and 85°C, enabling durability in varying environmental conditions. It is indoor use only and designed for easy disassembly, aligning with sustainability initiatives under Schneider Electric's Better World program.
Dual pole double throw (DPDT) silver alloy contacts offer reliable switching performance. 24V DC coil voltage with average coil resistance of 1440Ω for stable control. Compact size facilitates placement in tight spaces and on PCBs.
8A switching current capacity suitable for resistive and inductive loads. Through hole terminal and plug-in mounting enhance ease of installation. Compliance with EN, UL, and CSA standards for industrial safety and quality.
Designed for indoor use, protecting against external elements is recommended. Wide operating temperature range from -40°C to 85°C supports diverse environments. Part of Schneider Electric Harmony Electromechanical Relay series optimized for automation.
Better World product designed for disassembly to promote sustainability.
This Schneider Electric RSB2A080BD power relay is ideal for industrial, manufacturing, HVAC, and process control sectors requiring dependable interface relays. Consider exploring additional Schneider Electric components in the EnvMart catalog for integrated automation solutions.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 24V DC.
It has a switching current capacity of 8A, suitable for both resistive and inductive loads.
This model features dual pole double throw (DPDT) contacts made of silver alloy, enhancing durability and performance.
The relay has dimensions of 29mm in length, 12.5mm in width, and 15.7mm in height.
It is designed for PCB mounting with a through hole terminal type.
This relay is compliant with EN, UL, and CSA standards, ensuring safety and quality.
It operates reliably within a temperature range of -40°C to 85°C.
This relay is designed for indoor use only, and it is recommended to protect it against external elements.
It is suitable for industrial machinery, HVAC systems, lighting control circuits, and process automation.
The average coil resistance is 1440Ω, providing stable control.
It is designed for disassembly, supporting sustainability initiatives under Schneider Electric's Better World program.
This relay is part of the Harmony Relay RSB series, optimized for demanding industrial and automation applications.
