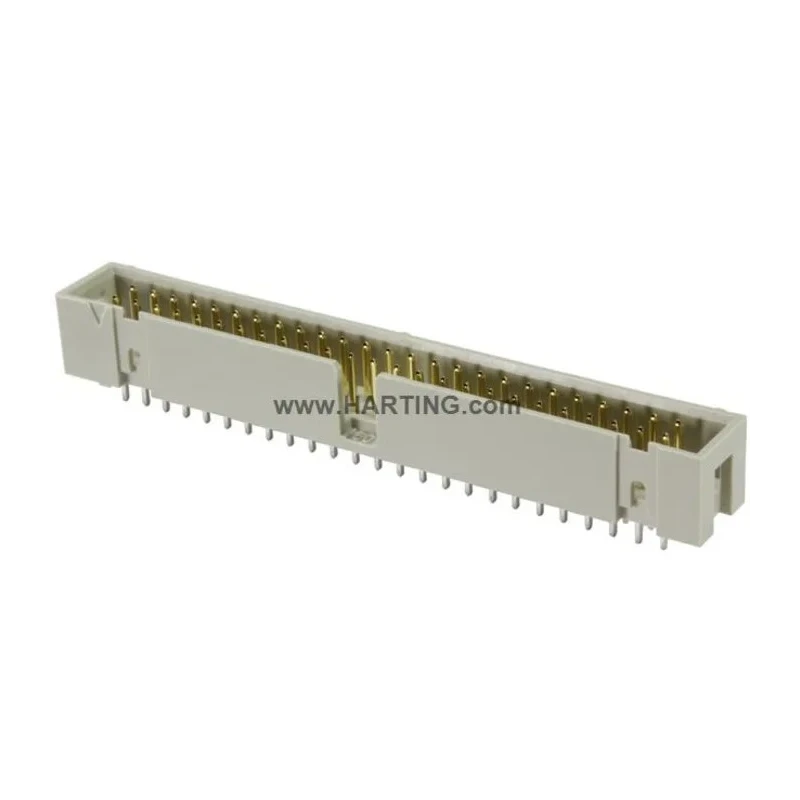

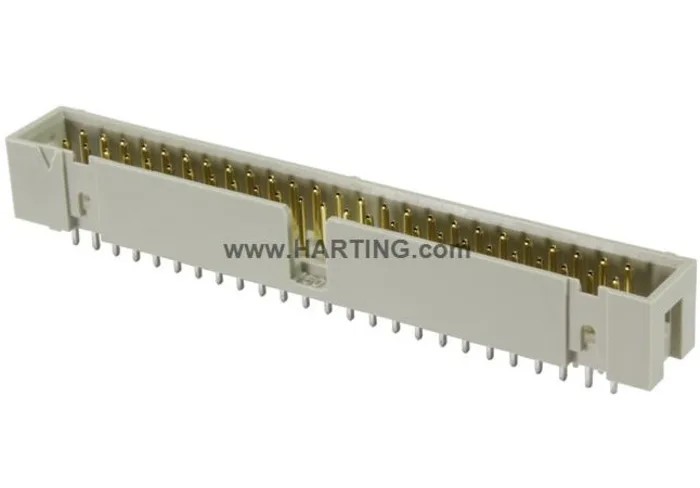

HARTING SEK 18 Series Straight Through Hole PCB Header, 26 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 09185267324
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 500V |
| Brand | HARTING |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | SEK 18 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Suitable for wire-to-board connections ensuring stable and reliable contact.
- Constructed from polybutylene terephthalate housing for durability and stability.
- Gold-plated copper alloy contacts provide excellent conductivity and corrosion resistance.
- Rated for current up to 1A and voltage up to 500V for safe operation.
- Operates reliably in temperature ranges from -55°C to 125°C.
- Designed according to IEC 60603-13 standards ensuring industrial compatibility.
- Mount type is through-hole, suitable for solder termination.
- Male contact gender with shrouded connector design for protection.
Product Description
HARTING 09185267324 SEK 18 Series Straight Through Hole PCB Header offers a high-quality connector solution with 26 contacts arranged in two rows featuring a 2.54 mm pitch. Designed for electronic applications requiring reliable wire-to-board connections, this shrouded header ensures secure mating and protection against damage.
The housing is made from polybutylene terephthalate, known for excellent mechanical strength and thermal stability. Copper alloy contacts plated with gold guarantee superior electrical conductivity and resistance to corrosion, making this connector ideal for prolonged industrial use.
Rated to safely carry currents up to 1 ampere and withstand voltages up to 500 volts, it operates efficiently across a wide temperature range from -55°C to 125°C. Its through-hole mount type enables secure solder termination on PCBs.
Compliant with IEC 60603-13 standards, the SEK 18 Series headers are widely used in industrial, manufacturing, laboratory, and electronic assembly applications where robust, high-density connectors are required.
Suitable for wire-to-board connections ensuring stable and reliable contact. Durable polybutylene terephthalate housing material. Gold-plated copper alloy contacts for enhanced conductivity. Rated for 1A current and 500V voltage operation.
Operating temperature range from -55°C to 125°C. IEC 60603-13 compliant design. Through-hole mount with solder termination. Male contact gender with shrouded protection.
This PCB header enables efficient signal transmission and mechanical stability essential in electronics manufacturing, testing equipment, and industrial automation systems. Choosing HARTING SEK 18 ensures quality and durability for demanding environments.
Discover more quality PCB connectors and headers in the HARTING range and expand your industrial and electronics assembly capabilities at EnvMart.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header is rated for a current of up to 1 ampere and a voltage of up to 500 volts.
The SEK 18 Series header features a pitch of 2.54 mm and has 26 contacts arranged in two rows.
The housing is constructed from polybutylene terephthalate, which provides durability and stability.
This model uses solder termination, suitable for through-hole mounting on PCBs.
It operates reliably within a temperature range from -55°C to 125°C.
Yes, it is designed according to IEC 60603-13 standards, ensuring compatibility for industrial applications.
The contact gender of this header is male, featuring a shrouded design for added protection.
The country of origin for this product is Switzerland.
This header supports a wire-to-board connector system, ensuring stable and reliable contact.
The contacts are made from copper alloy and are gold-plated for enhanced conductivity and corrosion resistance.
The shrouded design helps protect the contacts from damage and ensures secure mating during connections.
This PCB header is suitable for industrial, manufacturing, laboratory, and electronic assembly applications.
