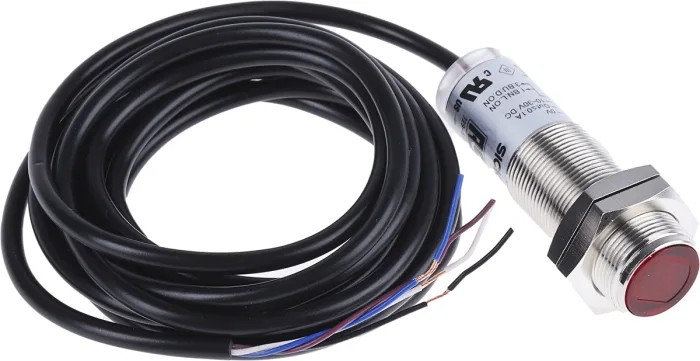

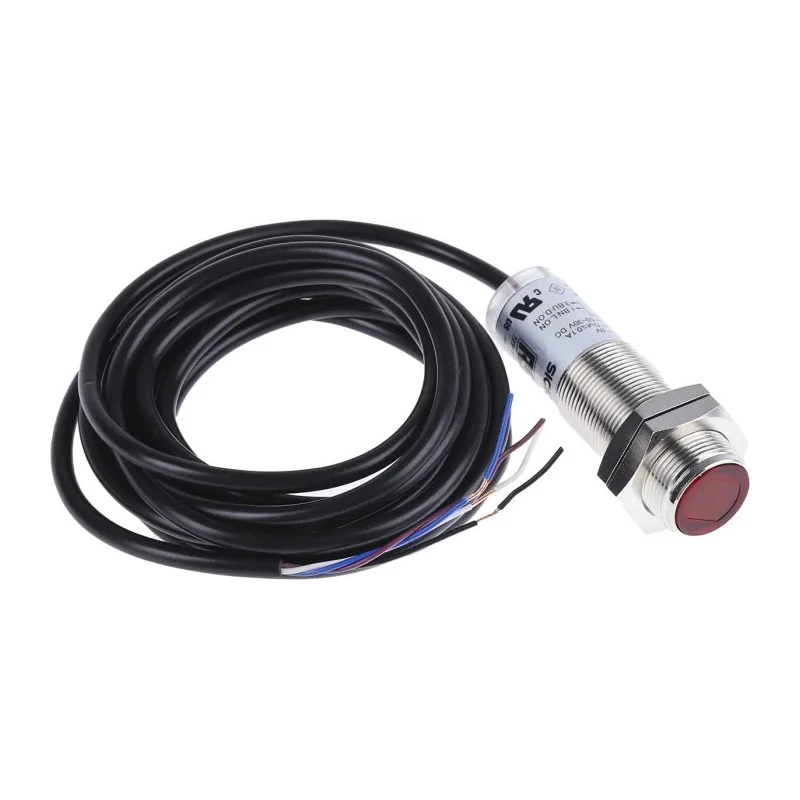

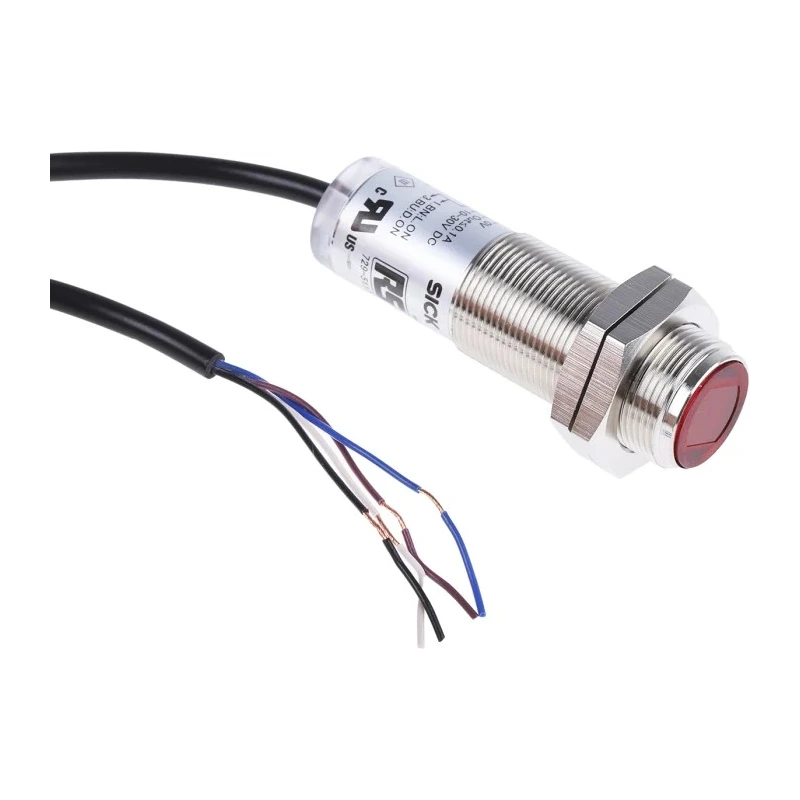

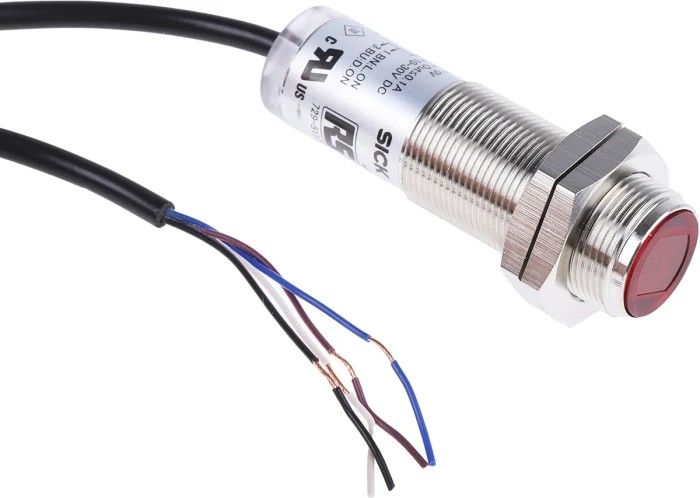

RS PRO Retroreflective Photoelectric Sensor Barrel Style 50 mm to 7 m Detection Range, PNP Output, IP67 Rated 729-5117
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Response time | 500μs |
| Light Source | LED |
| Detection range | 50 mm → 7 m |
| Model | 729-5117 |
| IP Rating | IP67 |
| Mount Type | Flange |
| Housing Material | Nickel Plated Brass, Polycarbonate |
| Output type | PNP |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Interfaces | lanes Used with automated assembly stations requiring flange mounting Can be used for quality inspection where non-contact detection is required |
| Maximum Current | 100mA |
| DetectIon Type | Retroreflective |
| Terminal type | 4-Pin M12 Connector |
| Maximum dc Voltage | 30V dc |
| Materials Detected | Polymethyl Methacrylate |
| Sensor Style | Barrel |
Key Features
- Retroreflective sensing with LED light source ensures accurate detection.
- PNP output enables straightforward interfacing with PLCs and control systems.
- Robust IP67 rated enclosure allows for use in harsh environments including dust and washdown conditions.
- Flange mount design provides secure and versatile installation options.
- Wide operating temperature range from -25°C to 55°C supports diverse industrial climates.
- Maximum operating voltage is 30V DC with a current limit of 100 mA for safety and efficiency.
- Response time of 500 microseconds allows high-speed detection suitable for fast processes.
- Housing constructed from nickel plated brass and polycarbonate for durability and corrosion resistance.
Product Description
RS PRO 729-5117 Retroreflective Photoelectric Sensor is designed for reliable detection tasks in demanding industrial automation environments. This barrel sensor features a detection range of 50 mm to 7 m and utilizes a PNP output for easy interfacing with programmable logic controllers and automation control inputs.
The sensor employs a bright LED light source for retroreflective detection, providing precise and repeatable object sensing. Its IP67-rated nickel plated brass and polycarbonate housing offers robustness against dust, moisture, and mechanical wear, making it suitable for washdown and harsh conditions commonly found on manufacturing and assembly lines.
Equipped with a flange mount for flexible installation, it also boasts a wide operating temperature range from -25°C up to 55°C to accommodate typical plant floor climates. The maximum operating voltage is 30V DC, with a current load of up to 100 mA, ensuring safe and efficient operation within industrial control systems.
With a swift response time of 500 microseconds, this sensor enables high-speed detection required for conveyors, sorting lanes, extrusion lines, and quality inspection stations where non-contact sensing of polymethyl methacrylate (PMMA) panels or components is essential.
Retroreflective detection with LED light source offers precise sensing performance. PNP output supports easy interfacing with PLCs and control inputs. IP67-rated enclosure enables use in dust and washdown environments. Response time 500 microseconds permits high-speed detection in fast processes.
Maximum 30V DC operation limits supply requirements for safety planning. Maximum current 100mA reduces load on upstream drivers or switches. Housing material provides mechanical robustness and corrosion resistance. Flange mount type allows secure installation on automation lines.
Detection range 50 mm to 7 m covers varied sensing distances. Detects polymethyl methacrylate (PMMA) materials effectively.
This sensor is ideal for industrial, automation, manufacturing, and quality control applications requiring precise and reliable object detection. Suitable uses include extrusion panel presence checks, automated conveyor sorting, flange mounted assembly stations, and non-contact quality inspection tasks.
Explore a wide range of Sensors and Photoelectric Sensors at EnvMart for industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this model is from 50 mm to 7 m.
It features a PNP output, which allows for straightforward interfacing with programmable logic controllers and control systems.
The maximum operating voltage is 30V DC.
The response time is 500 microseconds, enabling high-speed detection suitable for fast processes.
This sensor is designed to effectively detect polymethyl methacrylate (PMMA) materials.
It has an IP67 rating, making it suitable for use in dusty and washdown environments.
The operating temperature range is from -25°C to 55°C, accommodating various industrial climates.
It features a flange mount design, allowing for secure and versatile installation options.
The housing is made from nickel plated brass and polycarbonate, providing durability and corrosion resistance.
It uses a 4-pin M12 connector for interfacing.
It is suitable for applications such as extrusion panel presence checks, automated conveyor sorting, and non-contact quality inspection tasks.
The maximum current limit is 100 mA, ensuring safe and efficient operation.
