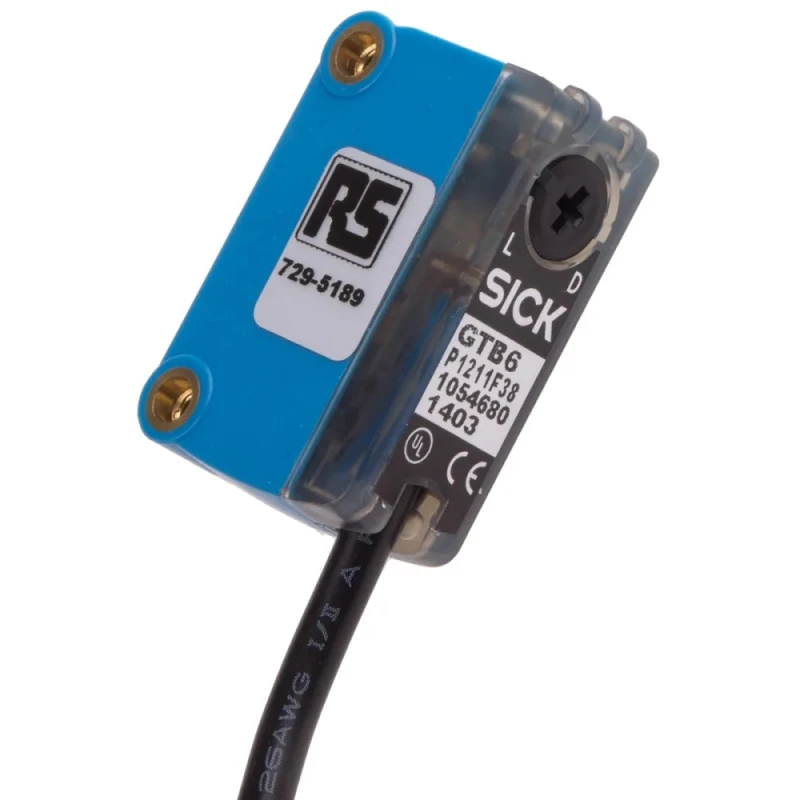

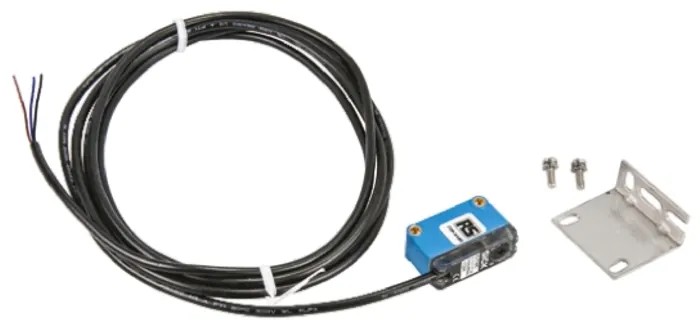

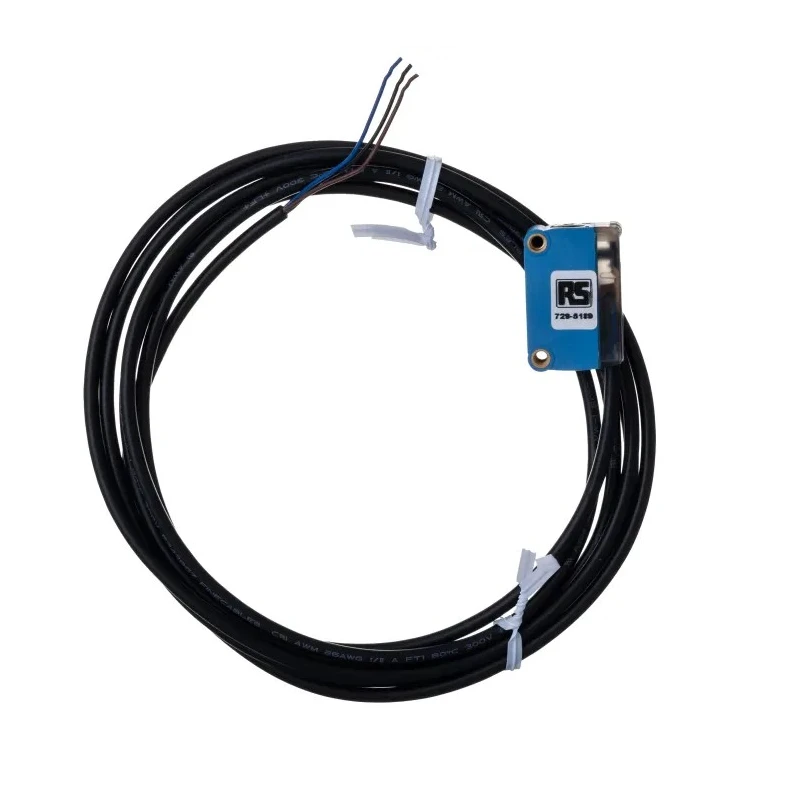

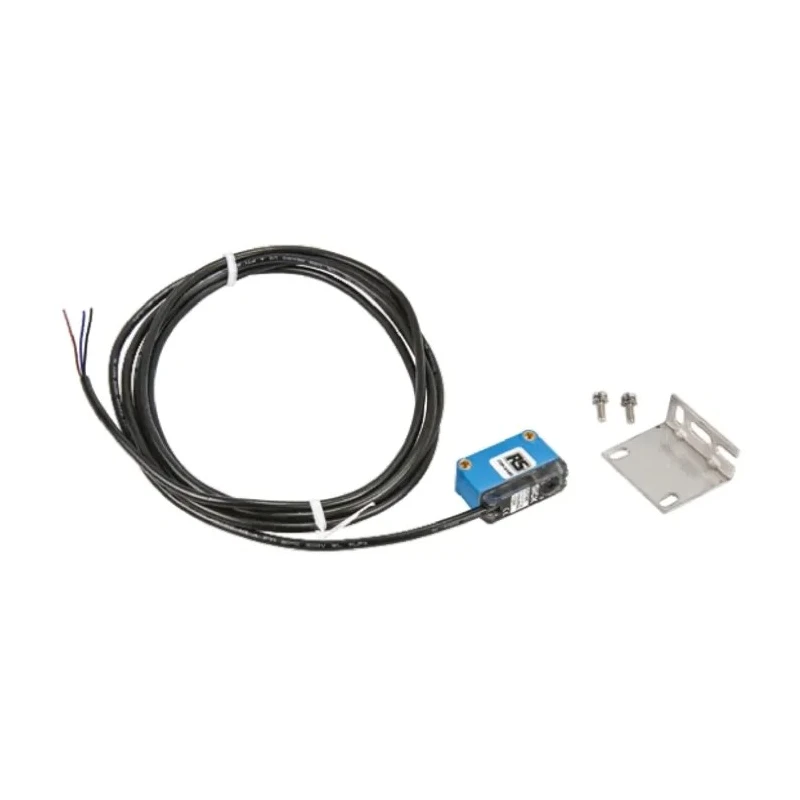

RS PRO Background Suppression Photoelectric Sensor, Block Sensor, Detection Range 5 mm to 250 mm, PNP Output, IP67 729-5189
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Response time | 625μs |
| Light Source | LED |
| Detection range | 5 mm → 250 mm |
| Model | 729-5189 |
| IP Rating | IP67 |
| Mount Type | Bracket Mount |
| Housing Material | Polycarbonate, ABS |
| Output type | PNP |
| Series | RS PRO |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 100mA |
| Terminal type | 3-Wire |
| Interface Type | 3 Wire |
| Maximum dc Voltage | 30V |
| Standards/Approvals | CE, E348498, NRKH7, RoHS Compliant, UL Listed (NRKH |
| Materials Detected | Polymethyl Methacrylate, Plastic |
| Sensor Style | Block |
Key Features
- The sensor uses a visible LED light source for background suppression and plastic material detection.
- It supports a maximum DC voltage of 30V and a maximum current of 100mA with PNP output type.
- The device is built with polycarbonate and ABS housing, offering durability in industrial environments.
- It includes a 3-wire terminal interface and bracket mount type for secure installation.
- The sensor operates efficiently in temperatures ranging from -25°C to +55°C.
- Its response time is 625 microseconds, enabling fast detection for automation tasks.
- The IP67 rating ensures protection from dust and water ingress for harsh conditions.
- Suitable for detecting polymethyl methacrylate and plastic materials in manufacturing and assembly lines.
Product Description
RS PRO 729-5189 Background Suppression Photoelectric Sensor is a block sensor with a detection range from 5 mm to 250 mm, featuring a PNP output type and an IP67-rated enclosure designed for industrial applications. It uses a visible LED light source optimized for detecting polymethyl methacrylate (PMMA) and plastic materials, ensuring precise background suppression for machine vision and automation systems.
The sensor operates on a maximum DC supply voltage of 30V and supports a current up to 100mA, allowing direct device drive with its PNP transistor output. The housing is constructed of durable polycarbonate and ABS, designed for bracket mounting to ensure secure and stable installation in factory automation environments.
Operating reliably from -25°C to +55°C, this sensor is suitable for a wide range of industrial uses including presence detection on assembly lines, object discrimination in automated feeders, and packaging position verification. Its rapid response time of 625 microseconds ensures quick switching and detection, critical for high-speed manufacturing processes.
The sensor features a 3-wire interface with a terminal connection and comes equipped with a mechanical sensitivity adjustment for accurate tuning. The IP67 enclosure rating guarantees protection against dust and water, making it ideal for harsh operating conditions.
The visible LED light source enables effective background suppression and material detection. Bracket mounting simplifies integration into existing industrial setups. Mechanical sensitivity adjustment allows precise calibration for diverse applications.
Robust housing materials ensure longevity and resistance to industrial wear. Fast response time supports high-speed automation tasks. Wide operating temperature and robust IP rating enhance versatility. PNP output type with 3-wire interface facilitates easy connection with PLCs and control systems.
This RS PRO Photoelectric Sensor is designed for industrial, manufacturing, assembly line, and packaging applications requiring precise object detection and discrimination. It is well suited for automation systems requiring reliable background suppression detection with high accuracy and durability.
Explore more industrial sensors and automation control gear products at EnvMart for comprehensive solutions tailored to your process automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this model is from 5 mm to 250 mm.
It features a PNP output type, allowing for easy integration with control systems.
The maximum operating temperature is 55°C.
The response time is 625 microseconds, enabling fast detection for automation tasks.
This model is designed to detect polymethyl methacrylate (PMMA) and plastic materials.
The sensor has an IP67 rating, ensuring protection against dust and water ingress.
The housing is constructed from polycarbonate and ABS, providing durability in industrial environments.
It is designed for bracket mounting, which facilitates secure installation in various setups.
The maximum DC voltage supported by this model is 30V.
It features a 3-wire terminal interface for connection.
This model is CE marked, RoHS compliant, and UL listed (NRKH).
The minimum operating temperature is -25°C, allowing for use in a wide range of environments.
