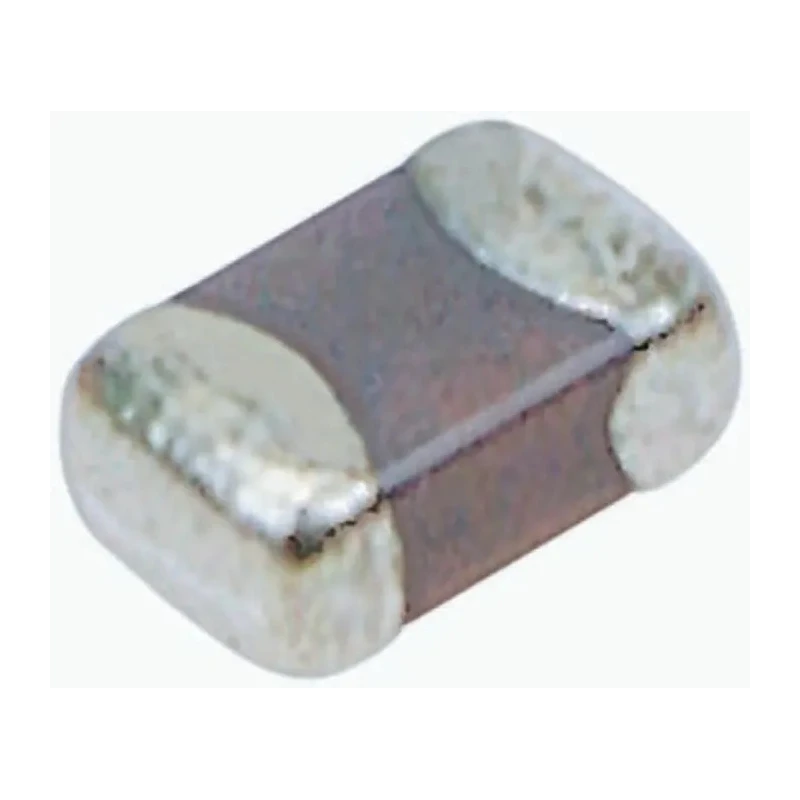

KYOCERA AVX 680 pF Multilayer Ceramic Capacitor, 50V DC, ±10% Tolerance, Surface Mount 0805 Case FLEXITERM 08055F681KAZ2A

KYOCERA AVX 08055F681KAZ2A is a high-quality 680 pF Multilayer Ceramic Capacitor designed for surface mount applications, rated for 50V DC voltage. This component utilizes an X8R dielectric, classified as temperature stable, making it appropriate for industrial and commercial electronics requiring reliable capacitance over wide temperature ranges.

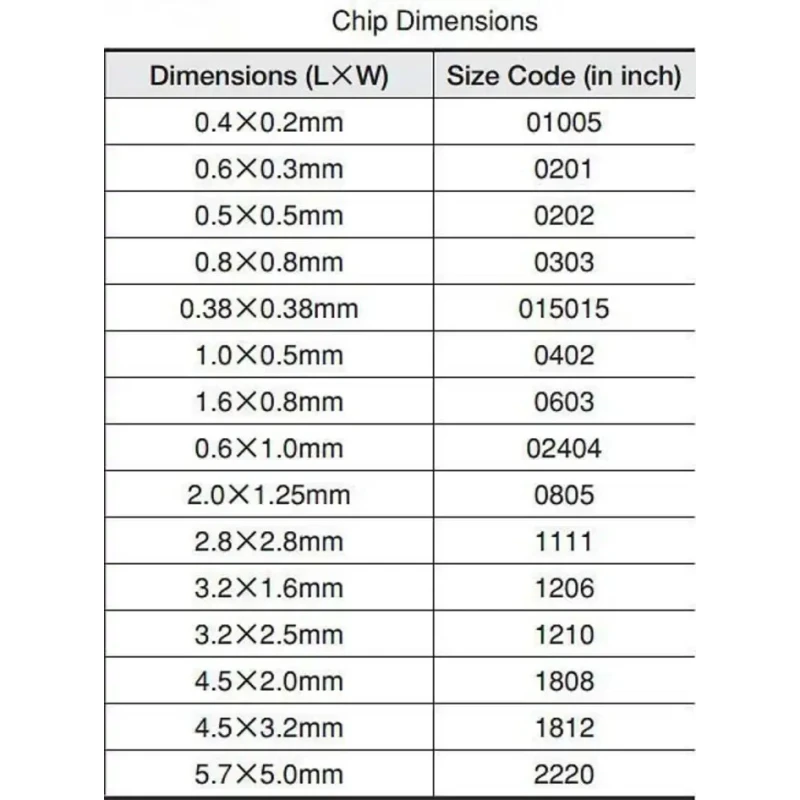

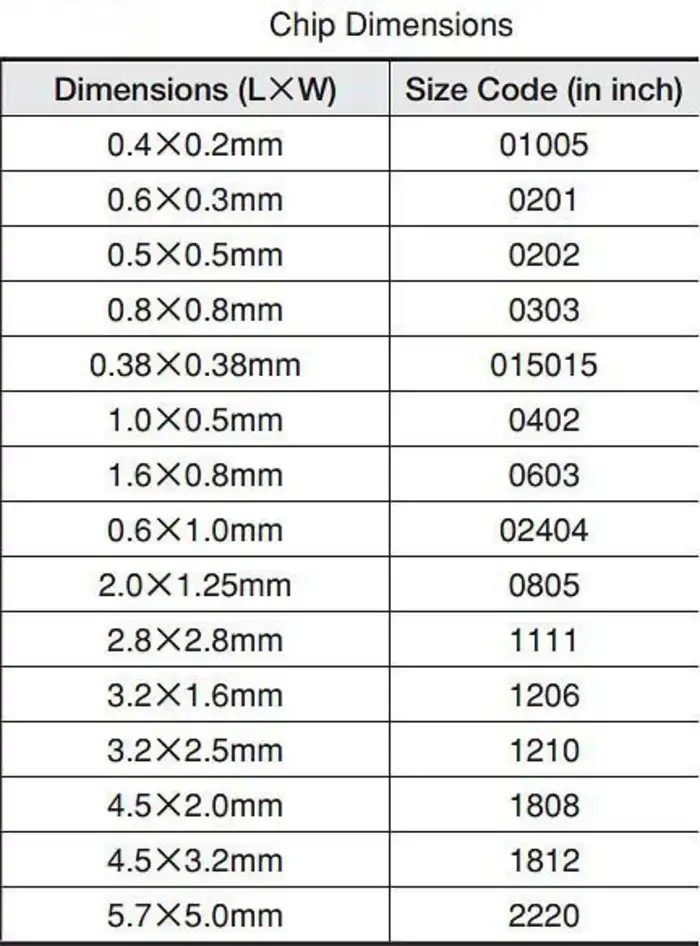

The capacitor belongs to the FLEXITERM series featuring nickel barrier terminations covered with a plated tin layer to enhance solderability and environmental protection. It comes in an 0805 package size with precise dimensions of 2.01 mm length, 1.25 mm width, and 0.94 mm height allowing compact PCB layouts and efficient space usage.

Operating temperature capability ranges from -55°C minimum to a maximum of 150°C, making it suitable for demanding environmental conditions including telecommunications, automotive electronics, and power management systems. The ±10% tolerance ensures stability and precision for filtering, decoupling, and timing circuits.

Applications of this MLCC include use as snubbers in high frequency power converters, resonators in switched-mode power supplies (SMPS), and high voltage coupling or DC blocking purposes. Its low equivalent series resistance (ESR) at high frequencies reduces signal noise, improving overall circuit performance.

The product is supplied in reel form, suitable for automated pick-and-place machines in volume production environments. This capacitor does not conform to automotive standards but offers robust performance for general-purpose industrial, laboratory, and commercial electronics manufacturing.

This capacitor uses X8R dielectric, providing stable capacitance across temperature variations. It has a temperature range from -55°C to 150°C suitable for industrial applications. The FLEXITERM series offers nickel barrier terminations with a plated tin layer ensuring durability.

Compact dimensions of 2.01mm length, 1.25mm width, and 0.94mm height enable high-density PCB designs. Suitable for use in power converters, resonators, and high voltage coupling applications. Available in reel packaging optimized for automated assembly processes.
