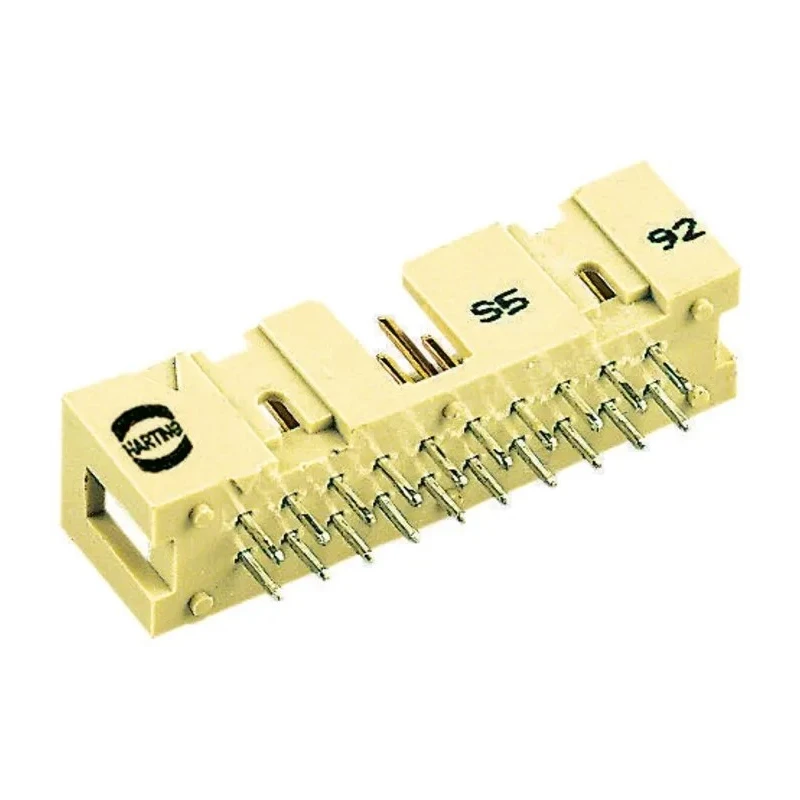

HARTING SEK 18 Series Straight Through Hole PCB Header, 14 Contacts, 2 Rows, 2.54 mm Pitch, Shrouded, 1A 09185146324
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 1kV |
| Brand | HARTING |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | SEK 18 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Designed for wire-to-board connector system applications.
- Constructed with polybutylene terephthalate housing for durability.
- Contacts made of copper alloy with gold plating for reliable conductivity.
- Operates safely between -55°C to 125°C temperature range.
- Terminated with solder pins suitable for through-hole mounting.
- Rated for 1 amp current and withstands up to 1kV voltage.
- Meets IEC 60 603-13 standards ensuring quality and performance.
- Compact 2.54 mm row pitch compatible with standard PCB designs.
Product Description
HARTING 09185146324 PCB Header is a high-quality straight through hole connector designed with 14 contacts arranged in 2 rows. It has a 2.54 mm pitch and features a shrouded design that offers enhanced protection and durability in industrial and electronic component applications.
Constructed with a polybutylene terephthalate housing, this header ensures long-lasting performance and mechanical stability. The copper alloy contacts plated with gold provide excellent electrical conductivity and corrosion resistance, suitable for demanding environments.
Its solder termination pins support through-hole mounting for secure PCB integration. The connector operates reliably within a temperature range of -55°C to 125°C and can handle a current rating of 1 amp with voltage endurance up to 1kV, making it suitable for various electronic assemblies.
Compliant with IEC 60 603-13 standards, it guarantees adherence to industry quality norms. This product is ideal for applications in industrial electronics, automation equipment, instrumentation, and communication devices requiring robust and reliable PCB connections.
Designed for wire-to-board connector system applications. Constructed with polybutylene terephthalate housing for durability. Contacts made of copper alloy with gold plating for reliable conductivity. Operates safely between -55°C to 125°C temperature range.
Terminated with solder pins suitable for through-hole mounting. Rated for 1 amp current and withstands up to 1kV voltage. Meets IEC 60 603-13 standards ensuring quality and performance. Compact 2.54 mm row pitch compatible with standard PCB designs.
Made in Switzerland, ensuring precision manufacturing. Explore HARTING connectors and components at EnvMart for high-performance electronics solutions.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 1 amp.
It can withstand a maximum voltage of 1kV.
The contacts have a pitch of 2.54 mm, making it compatible with standard PCB designs.
The housing is constructed from polybutylene terephthalate, which provides durability.
It features solder termination, suitable for through-hole mounting.
It operates reliably within a temperature range of -55°C to 125°C.
This model has a total of 14 contacts arranged in 2 rows.
The contacts are plated with gold, ensuring reliable conductivity and corrosion resistance.
This model features a shrouded design, providing enhanced protection.
It meets IEC 60 603-13 standards, ensuring quality and performance.
This product is made in Switzerland, ensuring precision manufacturing.
It is designed for wire-to-board connector system applications in industrial electronics and automation equipment.
