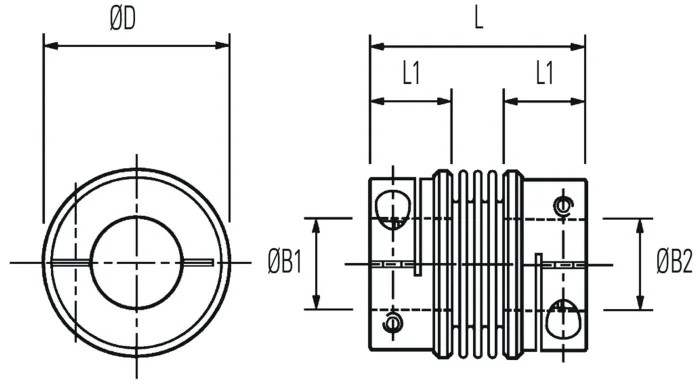

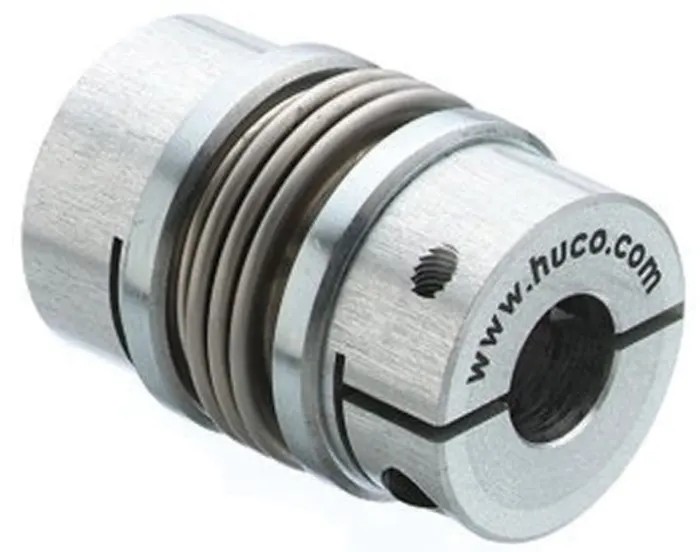

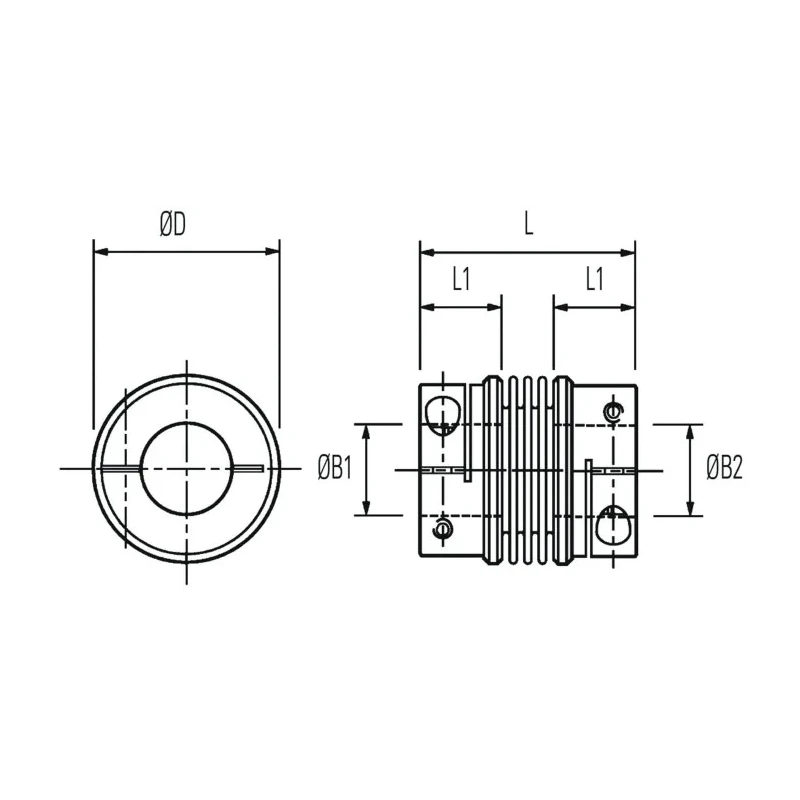

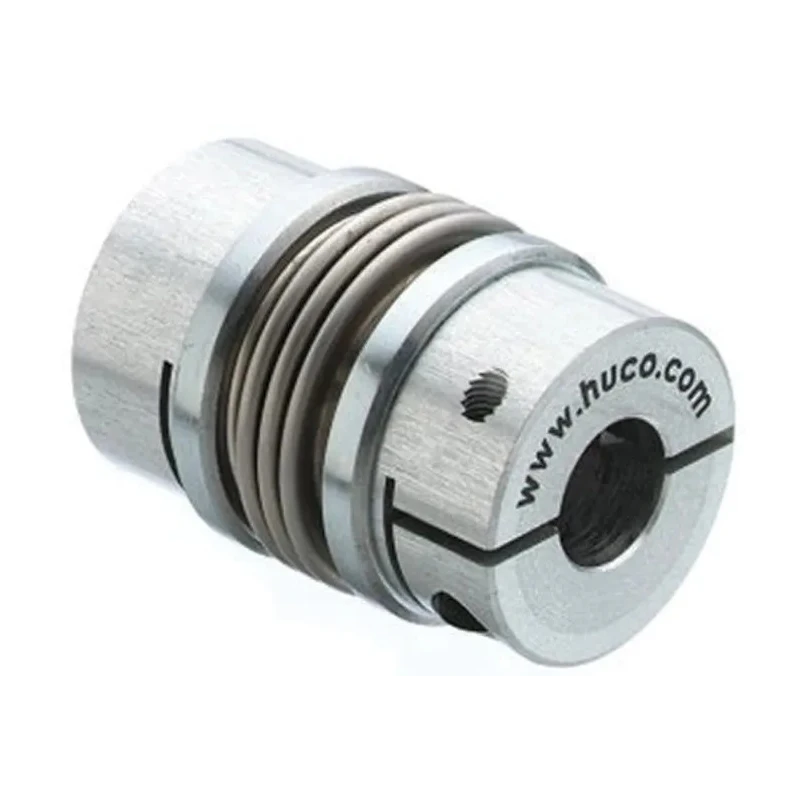

Huco Flexible Clamp Style Stainless Steel Bellows Coupler 45 mm OD 63 mm Length 554.45.5252
Specifications
| Country of Origin | Germany |
|---|---|
| Screw Size | M5 |
| Brand | Huco |
| Length | 63mm |
| Maximum Speed | 15000rpm |
| Series | Flex K |
| Maximum Operating Temperature | 120°C |
| Minimum Operating Temperature | -30°C |
| Torque Rating | 8Nm |
| Hub Material | Aluminium |
| Moment of Inertia | 3560 x 10-8 kg/m² |
| Misalignment - Angular | 1.5° |
| Misalignment - Parallel | 0.2mm |
| Misalignment - Axial | 0.5mm |
| Bellows Material | Stainless Steel |
| Clamp style bellows coupling,51x25x25mmBrand | Ruland |
Key Features
- Constructed with aluminium hub and stainless steel bellows for durability.
- Provides high torsional stiffness ensuring positional accuracy.
- Supports maximum speed up to 15000 rpm for dynamic motion control.
- Torque rating of 8 Nm suitable for moderate torque transmission.
- Accommodates angular misalignment up to 1.5 degrees and parallel misalignment of 0.2 mm.
- Operates reliably between -30°C to 120°C temperature range.
- Clamp style coupling with M5 screws for secure attachment.
- Low moment of inertia (3560 x 10^-8 kg/m²) ideal for servo drive precision.
Product Description
Huco 554.45.5252 is a flexible bellows coupling designed for mechanical power transmission applications requiring high precision and reliability. The clamp style stainless steel bellows coupler features a robust aluminium hub paired with stainless steel bellows, providing excellent torsional stiffness and low inertia. Its 45 mm outside diameter and 63 mm length dimensions make it suitable for compact installations where precise positioning and dynamic control are essential.
This coupling supports a maximum rotational speed of 15000 rpm and torque rating of 8 Nm, making it ideal for servo drive systems where high precision dynamic position control is critical. It allows angular misalignment of 1.5 degrees, parallel misalignment up to 0.2 mm, and axial misalignment to 0.5 mm, ensuring operational flexibility under installation or operational deviations.
The coupling operates reliably across a wide temperature range from -30°C to 120°C, thanks to the stainless steel bellows and aluminium hub materials that provide durability and corrosion resistance. The clamp style with M5 screw size ensures secure coupling attachment during demanding mechanical and industrial environments.
Constructed with aluminium hub and stainless steel bellows for durability. Provides high torsional stiffness ensuring positional accuracy. Supports maximum speed up to 15000 rpm for dynamic motion control. Torque rating of 8 Nm suitable for moderate torque transmission.
Accommodates angular misalignment up to 1.5 degrees and parallel misalignment of 0.2 mm. Operates reliably between -30°C to 120°C temperature range. Clamp style coupling with M5 screws for secure attachment. Low moment of inertia (3560 x 10^-8 kg/m²) ideal for servo drive precision.
This product is manufactured in Germany and is part of the Flex K series of couplings. It is widely used in industrial applications involving precision servo drives, robotics, automation, and other mechanical power transmission systems.
Explore related products in the Mechanical Power Transmission Couplers category for additional compatible components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum rotational speed of 15000 rpm, making it suitable for dynamic motion control applications.
It has a torque rating of 8 Nm, which is suitable for moderate torque transmission in various applications.
The coupler has an outside diameter of 45 mm and a length of 63 mm, making it compact for installations requiring precise positioning.
It can accommodate angular misalignment of up to 1.5 degrees, parallel misalignment of 0.2 mm, and axial misalignment of 0.5 mm.
The coupler features an aluminium hub and stainless steel bellows, providing durability and corrosion resistance.
It operates reliably within a temperature range of -30°C to 120°C, suitable for various industrial environments.
It uses a clamp style attachment with M5 screws, ensuring secure coupling during operation.
The moment of inertia is 3560 x 10^-8 kg/m², which is beneficial for applications requiring low inertia for precision control.
This product is manufactured in Germany, ensuring adherence to quality standards.
It is part of the Flex K series of couplings, designed for high precision and reliability in mechanical power transmission.
This model is widely used in industrial applications involving precision servo drives, robotics, and automation.
The coupler is designed to be used with M5 screws for secure attachment; no additional accessories are specified for installation.
