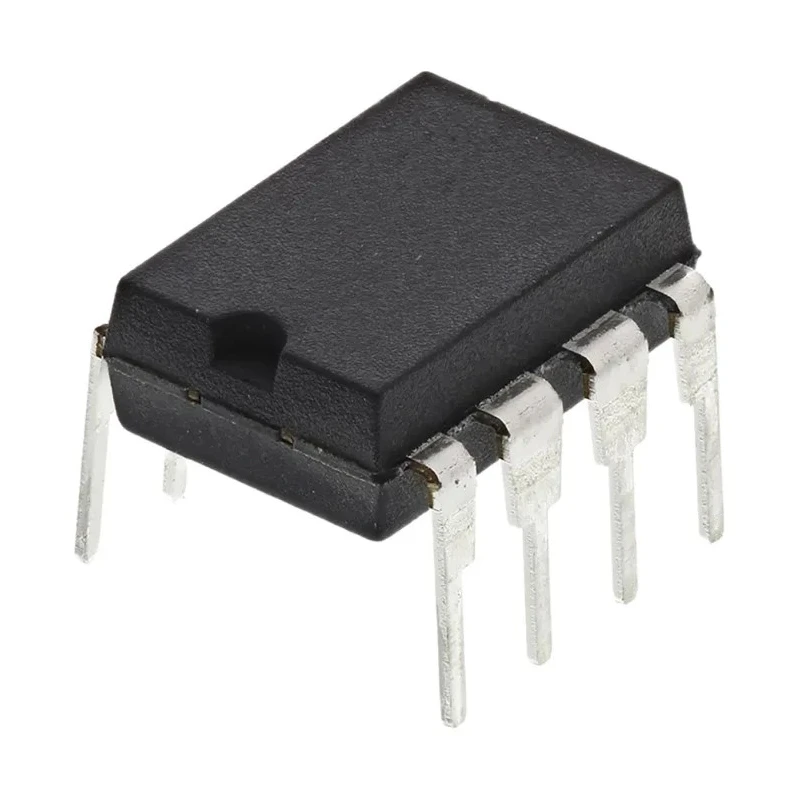

Lite-On DC Input Optocoupler 8-Pin DIP Through Hole 1.7V Max Forward Voltage 20mA Max Input Current 6N138-L
Specifications
| Country of Origin | India |
|---|---|
| Brand | Lite-On |
| Model | 6N138-L |
| Mount Type | Through Hole |
| Series | 6N138 |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 20mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL |
| Maximum Forward Voltage | 1.7V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Maximum Current Transfer Ratio | 2600% |
| Minimum Current Transfer Ratio | 2000% |
Key Features
- Features a Darlington transistor output for enhanced current gain.
- Maximum forward voltage of 1.7V ensures efficient signal reception.
- Supports maximum input current of 20mA for robust input handling.
- Offers logic output capability suitable for digital circuits.
- Operates reliably between -40°C to 85°C ambient temperatures.
- Ensures high current transfer ratio between 2000% to 2600% for improved performance.
- Mount type is through hole, facilitating standard PCB assembly.
- Package type is Dual Inline Package (DIP) with 8 pins for easy integration.
Product Description
Lite-On 6N138-L model DC Input Optocoupler is a precision semiconductor device packaged in a through hole 8-Pin Dual Inline Package (DIP), offering reliable optical isolation of input and output circuits.
This optocoupler employs a Darlington transistor output configuration, delivering enhanced current gain and signal integrity in electronic applications.
Electrical characteristics include a maximum forward voltage of 1.7 volts and a maximum input current rating of 20 milliamperes, suitable for interface circuits requiring isolation with DC input signals.
The 6N138-L operates effectively across a broad temperature range from -40 degrees Celsius up to a maximum of 85 degrees Celsius, making it suitable for industrial and commercial environments.
Its high current transfer ratio, ranging between 2000% minimum to 2600% maximum, ensures efficient signal transfer across the isolation barrier. The device is designed and tested to meet UL standards and has a rated isolation voltage of 5 kV RMS which guarantees safety and prevention of electrical interference.
The through hole mounting type allows for easy assembly into printed circuit boards via 8 standard pins arranged in DIP format. Darlington transistor output enhances signal gain. Maximum forward voltage of 1.7V for low power loss.
Maximum input current of 20mA ensures stable input performance. Logic output suitable for digital circuit interfacing. Operating temperature range from -40°C to 85°C. Current transfer ratio from 2000% to 2600% ensures high efficiency.
Through hole mount type for traditional PCB assembly. 8-Pin DIP package facilitating easy integration. 5kVrms isolation voltage for electrical safety. Compliant with UL standards for quality assurance. This Optocoupler finds broad use in industrial electronics, telecommunications, signal processing, and power supply applications where isolation of control signals is essential.
Explore a wide range of Lite-On optoelectronic components within the EnvMart catalog for your industrial and commercial project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current for the 6N138-L optocoupler is 20mA.
This model operates effectively within a temperature range from -40°C to 85°C.
The Lite-On 6N138-L uses a through hole mounting type, allowing for standard PCB assembly.
The maximum forward voltage of the 6N138-L optocoupler is 1.7V.
The current transfer ratio for the 6N138-L ranges from a minimum of 2000% to a maximum of 2600%.
The 6N138-L optocoupler features 8 pins arranged in a Dual Inline Package (DIP).
Yes, the 6N138-L is compliant with UL standards for quality assurance.
This model provides a logic output suitable for digital circuit interfacing.
The 6N138-L has a rated isolation voltage of 5 kV RMS, ensuring electrical safety.
The 6N138-L is suitable for applications in industrial electronics, telecommunications, signal processing, and power supply where isolation of control signals is essential.
The 6N138-L supports DC input current.
The 6N138-L employs a Darlington transistor output configuration, which enhances current gain and signal integrity.
