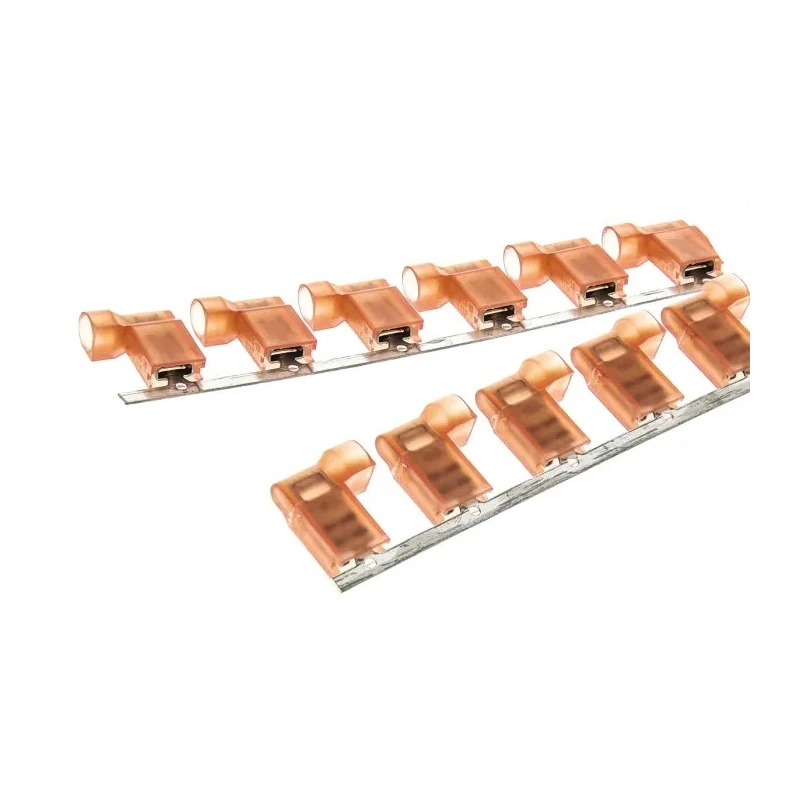

TE Connectivity Ultra-Fast .187 Red Insulated Female Spade Connector Crimp 4.75 x 0.81 mm Tab Size 2-520336-2
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| Orientation | Angled |
| Gender | Female |
| Insulation | Insulated |
| Overall Length | 16.14mm |
| Contact Material | Brass |
| Series | Ultra-Fast .187 |
| Termination Type | Crimp |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.9mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Tab Width | 4.75mm |
| Tab Thickness | 0.81mm |
| Tab Size | 4.75 x 0.81 mm |
Key Features
- Constructed with brass contact material and tin plating for excellent conductivity and corrosion resistance.
- Insulated with nylon material to prevent shock and electrical short circuits.
- Compatible with wire sizes from 22 AWG to 18 AWG (0.3 mm² to 0.9 mm²) ensuring versatility.
- Features an angled female spade termination with 4.75 mm width and 0.81 mm thickness tabs.
- Overall length of the connector is 16.14 mm to suit various assembly requirements.
- Part of the Ultra-Fast .187 series designed for easy, secure crimp connections.
- Colour coded red for easy identification of wire gauge and application.
Product Description
TE Connectivity 2-520336-2 Ultra-Fast .187 Red Insulated Female Spade Connector is a high-quality crimp terminal designed to provide secure, reliable electrical connections in industrial and commercial applications.
The connector features a brass contact plated with tin, combined with a UL 94 V-2 nylon insulation housing that fully encloses the contact to prevent shock and electrical shorts. The insulated housing is specifically designed for 22 AWG to 18 AWG wire sizes, supporting a wire cross-section from 0.3 mm² to 0.9 mm².
The angled female spade terminal includes tabs measuring 4.75 mm in width and 0.81 mm in thickness, with an overall length of 16.14 mm. The housing membrane has slots to accommodate shouldered tab styles, enabling a precise and positive mating connection even in blind locations.
This Ultra-Fast .187 series connector is designed for ease of installation with a two-stage roll configuration and cantilever mounted dimples, ensuring positive lead-in of the mating tab contact during assembly.
The bright red nylon insulation provides clear color coding suited for 22 AWG to 18 AWG wires. This enables quick identification and assists in wiring safety and standards compliance, ideal for industrial electrical assemblies, machinery, HVAC, automotive, and manufacturing applications.
Constructed with highly conductive brass contact plated with tin. Insulation material is UL 94 V-2 rated nylon to resist heat and shock. Supports wire sizes from 22 AWG (0.3 mm²) to 18 AWG (0.9 mm²). Angled female spade design with 4.75 x 0.81 mm tab dimensions.
Overall length of 16.14 mm for versatile application fit. Part of the Ultra-Fast .187 series designed for quick and secure crimping. Red insulation color for easy wire gauge identification.
This product is manufactured in the United States in compliance with recognized quality standards and suits a wide range of electronic and electrical connector requirements. It is recommended for use in industrial, automotive, manufacturing, and HVAC wiring applications where secure and safe terminations are critical.
Explore more connectors and electrical components in the Electronics & Electricals category at EnvMart for your project and maintenance needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is compatible with wire sizes from 22 AWG to 18 AWG, which corresponds to a cross-section range of 0.3 mm² to 0.9 mm².
The tabs of this female spade connector measure 4.75 mm in width and 0.81 mm in thickness.
The overall length of this connector is 16.14 mm, allowing for versatile application fit.
It is constructed with brass contact material plated with tin for conductivity, and the insulation is made of UL 94 V-2 rated nylon.
This model features a two-stage roll configuration and cantilever mounted dimples to ensure positive lead-in of the mating tab contact during assembly.
The insulation of this connector is red, which aids in the quick identification of wire gauge and application.
It utilizes a crimp termination type, designed for secure electrical connections.
The connector is designed with an angled orientation, facilitating easier connections in tight spaces.
This product is manufactured in the United States.
It is suitable for industrial electrical assemblies, machinery, HVAC, automotive, and manufacturing applications.
The insulation material is rated UL 94 V-2, which indicates its resistance to heat and shock.
This connector is part of the Ultra-Fast .187 series, designed for easy and secure crimp connections.
