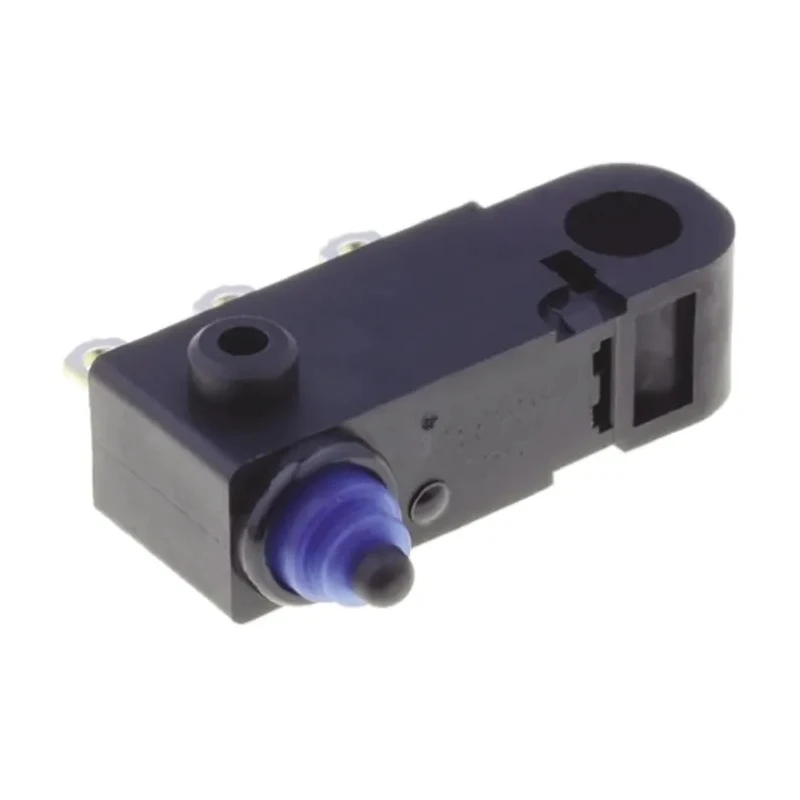

Omron Ultra Subminiature Sealed Pin Plunger Micro Switch, Solder Terminal, 2A Contact Current, SPDT, IP67 D2HW-C201H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Model | D2HW-C201H |
| IP Rating | IP67 |
| Series | D2HW |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Actuator Type | Pin Plunger |
| Contact Rating | 2A @ 12Vdc, 0.1A @ 125Vac |
| Minimum Operating Temperature | -40°C |
| Minimum Load | 1mA @ 5Vdc |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Contact Current | 2A |
| Operating Force | 0.75N |
| Mechanical Life | 1000000Operations |
| Microswitch Type | Sealed Ultra Subminiature |
Key Features
- Designed for ultra subminiature sealed applications ensuring durability.
- Equipped with pin plunger actuator suitable for precise switching.
- Contact rating of 2A at 12 Vdc and 0.1A at 125 Vac ensures versatility.
- Has SPDT contact configuration for flexible circuit designs.
- IP67 rating offers complete protection against dust and water ingress.
- Operating force of 0.75N enables sensitive actuation.
- Suitable for use in temperatures from -40°C to 85°C.
- Mechanical life expectancy of 1,000,000 operations ensures long service life.
Product Description
Omron D2HW-C201H is a high-quality ultra subminiature sealed micro switch designed with a pin plunger actuator and solder terminal connection, rated for 2A contact current. It features a Single Pole Double Throw (SPDT) contact configuration and is rated IP67 for dust and water protection, making it ideal for industrial and automation applications where reliability and precision are critical.
This micro switch offers an operating force of 0.75N, allowing for sensitive and dependable switch actuation. It is engineered to operate reliably in a wide temperature range from -40°C to 85°C, suitable for harsh environments. The mechanical life is rated for one million operations, ensuring long-term durability and stability in electrical circuits.
Its extra-long stroke design is compact, with dimensions approximately 78% that of conventional models, supporting space-saving requirements. The micro switch meets RoHS standards, ensuring environmental compliance and safer usage in modern electronics.
The switch contact current is rated at 2A at 12V DC and 0.1A at 125V AC, supporting a broad range of electrical applications. The SPDT configuration allows versatile switching applications in control circuits, position detection, and safety interlocks.
Designed for ultra subminiature sealed applications ensuring durability. Equipped with pin plunger actuator suitable for precise switching. Contact rating of 2A at 12 Vdc and 0.1A at 125 Vac ensures versatility. Has SPDT contact configuration for flexible circuit designs.
IP67 rating offers complete protection against dust and water ingress. Operating force of 0.75N enables sensitive actuation. Suitable for use in temperatures from -40°C to 85°C. Mechanical life expectancy of 1,000,000 operations ensures long service life.
RoHS compliant, meeting environmental standards.
This Omron micro switch is widely used in industrial automation, HVAC systems, manufacturing machinery, and other electrical control applications requiring miniature, sealed, and reliable switching solutions.
Explore more Micro Switches and related components in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact rating is 2A at 12V DC and 0.1A at 125V AC, providing versatility for various electrical applications.
It has an IP67 rating, offering complete protection against dust and water ingress, making it suitable for sealed applications.
The operating temperature range is from -40°C to 85°C, allowing it to function reliably in harsh environments.
This model features a pin plunger actuator, which is suitable for precise switching applications.
The mechanical life expectancy is rated for 1,000,000 operations, ensuring long-term durability in use.
The minimum load is 1mA at 5V DC, which is necessary for reliable operation.
The operating force is 0.75N, allowing for sensitive actuation of the switch.
It features a solder terminal type, which is suitable for secure electrical connections.
It is widely used in industrial automation, HVAC systems, manufacturing machinery, and other electrical control applications requiring miniature, sealed, and reliable switching solutions.
It meets RoHS standards, ensuring environmental compliance for safer usage in modern electronics.
The contact configuration is SPDT (Single Pole Double Throw), allowing for flexible circuit designs.
The country of origin is India, where it is manufactured.
