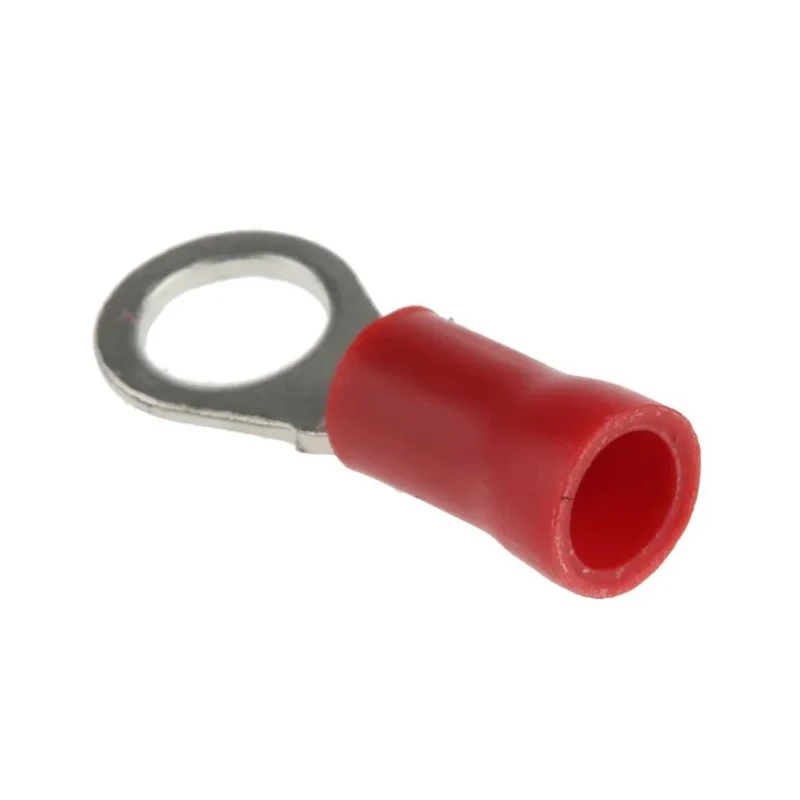

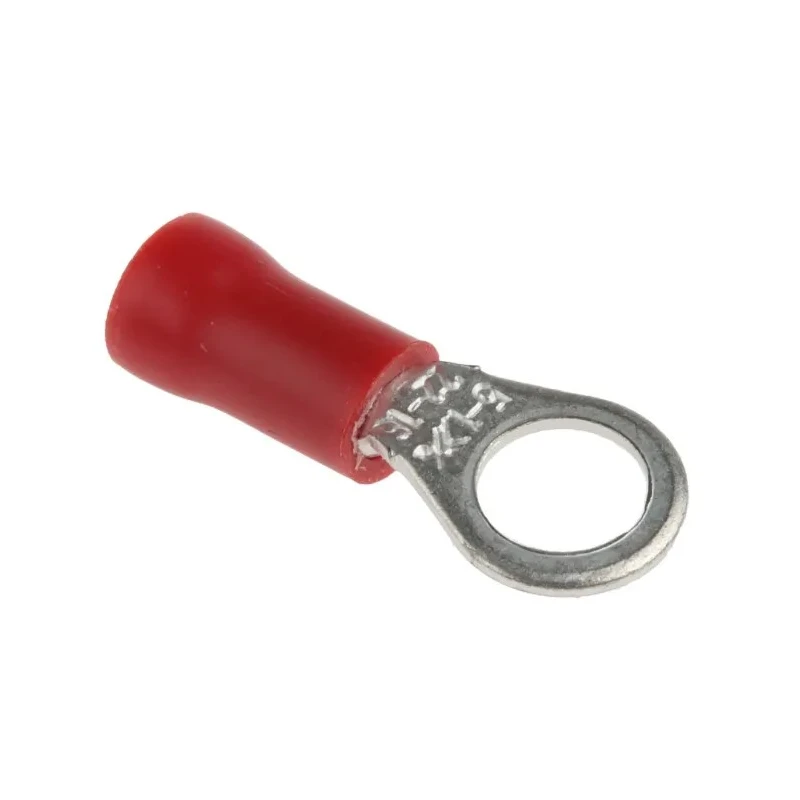

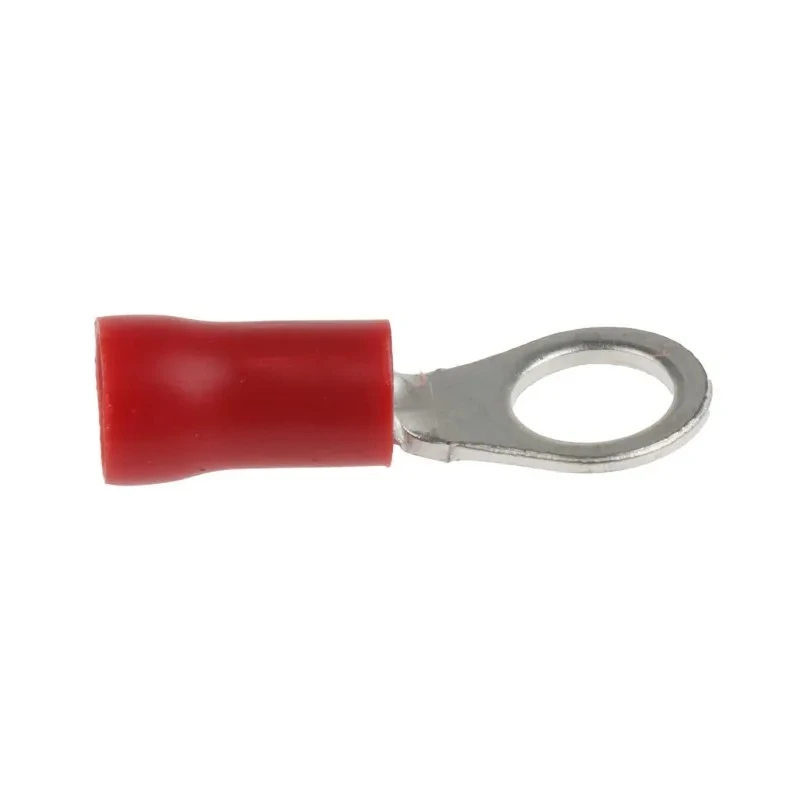

RS PRO Insulated Ring Terminal M5 Stud, Wire Size 22 AWG to 16 AWG, Red, Polyvinyl Chloride Insulation 534-200
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Colour | Red |
| THICKNESS | 0.8mm |
| Model | 534-200 |
| Insulation | Insulated |
| Overall Length | 26.7mm |
| Contact Material | Copper |
| Insulation Material | Polyvinyl Chloride |
| Minimum Operating Temperature | 75°C |
| Standards/Approvals | ANSI/ESD S20.20:2021 Electrostatic Control Standard, RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 8mm |
| Inner Ring Diameter | 5.3mm |
| Stud Size | M5 |
| Standards/Approvals ANSI/ESD S20.20 | 2021 Electrostatic Control Standard, RoHS |
| CRIMP CONNS-EYELET 2BABrand | NEUTRAL |
| RS PRO Insulated Ring Terminal, M5 Stud Size 22 AWG 16 AWG Wire Size, RedBrand | RS PRO |
| JST, FV Insulated Ring Terminal, M5 Stud Size 22 AWG 16 AWG Wire Size, RedBrand | JST |
Key Features
- Copper body material ensures excellent electrical conductivity and easy crimping.
- Tin plating provides corrosion resistance and improved conductivity.
- Vinyl insulated red sleeve offers electrical protection and clear size identification.
- Outer ring diameter of 8mm and inner ring diameter of 5.3mm for secure mounting.
- Suitable for a wide range of industrial and automotive electrical applications.
- Expanded insulation entry for simplified wire insertion process.
- Maximum operating temperature of 75°C supports various operating environments.
Product Description
RS PRO 534-200 insulated ring terminal is designed for connecting electrical cables securely to studs or posts, ideal for industrial, automotive, communication, power supply, and domestic appliance applications. This ring terminal supports wire sizes from 22 AWG to 16 AWG and is equipped with a red polyvinyl chloride (PVC) insulation to protect the connection and aid quick identification. The contact is constructed from tin-plated copper, providing excellent electrical conductivity and resistance to corrosion.
The terminal features an outer ring diameter of 8mm and an inner ring diameter of 5.3mm, with a stud size of M5 and an overall length of 26.7mm. Its expanded insulation entry facilitates easy wire insertion and ensures reliable crimps using suitable crimp tools, such as stock number 533-279. Operating temperatures up to 75°C make this terminal suitable for various demanding environments.
It complies with essential industry standards including ANSI/ESD S20.20:2021, supporting electrostatic control, and is RoHS compliant, ensuring environmental safety. This product is manufactured in Taiwan, Province Of China, guaranteeing quality and reliability.
Copper body material ensures excellent electrical conductivity and easy crimping. Tin plating provides corrosion resistance and improved conductivity. Vinyl insulated red sleeve offers electrical protection and clear size identification.
Outer ring diameter of 8mm and inner ring diameter of 5.3mm for secure mounting. Suitable for a wide range of industrial and automotive electrical applications. Expanded insulation entry for simplified wire insertion process.
Maximum operating temperature of 75°C supports various operating environments. Complies with ANSI/ESD S20.20:2021 Electrostatic Control Standard and RoHS directives.
This insulated ring terminal is essential in industries requiring secure and reliable electrical connections, including manufacturing, automotive, industrial control systems, communications equipment, and domestic electrical appliances. Use it to achieve efficient, corrosion-resistant terminations that withstand environmental challenges. Browse the Electronics Components or Wire Terminals & Splices categories at EnvMart for related connector solutions.
Explore more products in our Wire Terminals & Splices category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This insulated ring terminal supports a maximum wire size of 16 AWG, which corresponds to 1.5mm².
The outer ring diameter is 8mm, and the inner ring diameter is 5.3mm, ensuring secure mounting.
The contact is made from copper with tin plating, while the insulation is made of polyvinyl chloride (PVC).
The maximum operating temperature for this terminal is 75°C, making it suitable for various environments.
It is compatible with wire sizes ranging from 22 AWG to 16 AWG.
The overall length of this model is 26.7mm.
This terminal complies with the ANSI/ESD S20.20:2021 Electrostatic Control Standard and is RoHS compliant.
The stud size for this terminal is M5.
The terminal features an expanded insulation entry that simplifies the wire insertion process, ensuring reliable crimps.
This terminal is suitable for a wide range of industrial and automotive electrical applications, including communication and power supply systems.
The thickness of this insulated ring terminal is 0.8mm.
This model is manufactured in Taiwan, Province Of China.
