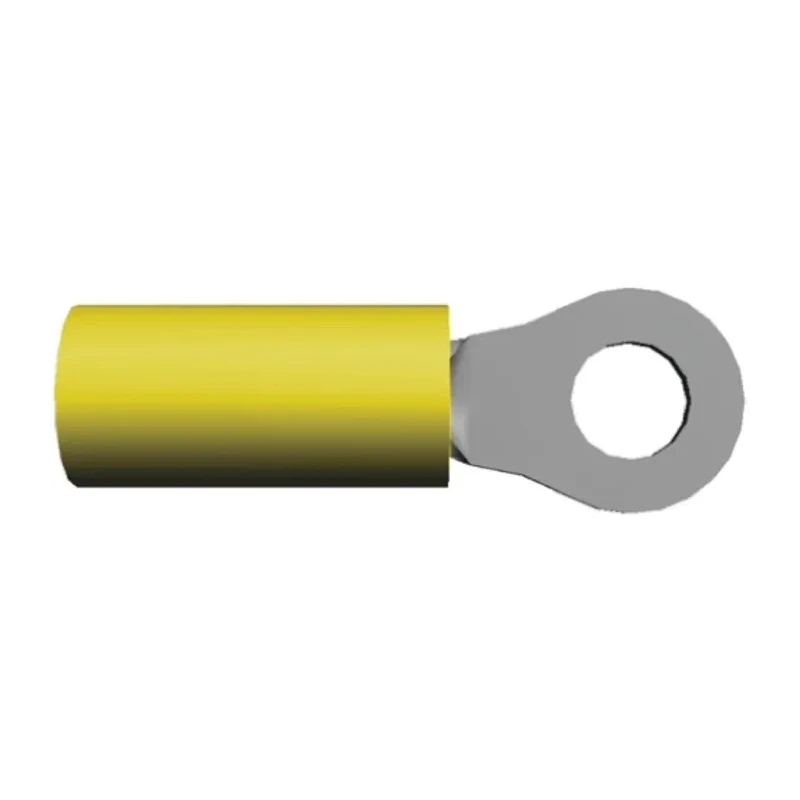

TE Connectivity PIDG Insulated Ring Terminal M4 Stud Size 12 AWG 10 AWG Wire Size Nylon Yellow 2-35108-1

TE Connectivity 2-35108-1 PIDG Insulated Ring Terminal is a high-quality wire crimp terminal designed for reliable electrical connections in various industrial and commercial environments. Manufactured with a precision-formed copper body, this ring terminal features a durable yellow nylon insulation sleeve that provides improved wire insulation support and easy wire size recognition.

The copper wire barrel offers serrations that maximize contact and tensile strength once crimped, ensuring a uniform and secure connection that meets demanding circuit performance requirements. Its M4 stud size accommodates wire sizes ranging from 12 AWG (2.6 mm²) to 10 AWG (6.6 mm²), making it suitable for a broad range of wiring tasks.

This ring terminal is rated for a maximum operating temperature of 105°C, enabling it to perform reliably in high-temperature applications. The tin plating on the copper contact material enhances corrosion resistance and electrical conductivity, extending the terminal's service life.

Its colour-coded yellow insulating nylon sleeve simplifies identification in busy installations and supports fast assembly processes, especially in high-volume production lines. The funnelled entry design assists in preventing wire strand damage during insertion, promoting easy and efficient crimping.

Typical applications include use in instrumentation, control panels, power supplies, transportation equipment, lifting machinery, motors, aerospace systems, and household appliances. These terminals comply with the rigorous performance expectations of MIL-T-7928 standards, Type II, Class 1 and 2, assuring dependable functionality in critical circuits.

High conductivity copper body for enhanced electrical performance. Copper sleeve supporting improved insulation and wire retention. Serrated wire barrel for maximum contact and tensile strength. Colour-coded yellow nylon insulation for ease of identification.

Funnelled wire entry to facilitate fast and secure wire insertion. Compatible with wire sizes from 12 AWG to 10 AWG. Maximum operating temperature of 105°C ensures durability under heat stress. Tin-plated contacts provide corrosion resistance and long service life.

Suitable for industrial, aerospace, and commercial electrical applications. Explore the extensive range of TE Connectivity terminals and wire management components at EnvMart for quality and reliability in your electrical projects.
