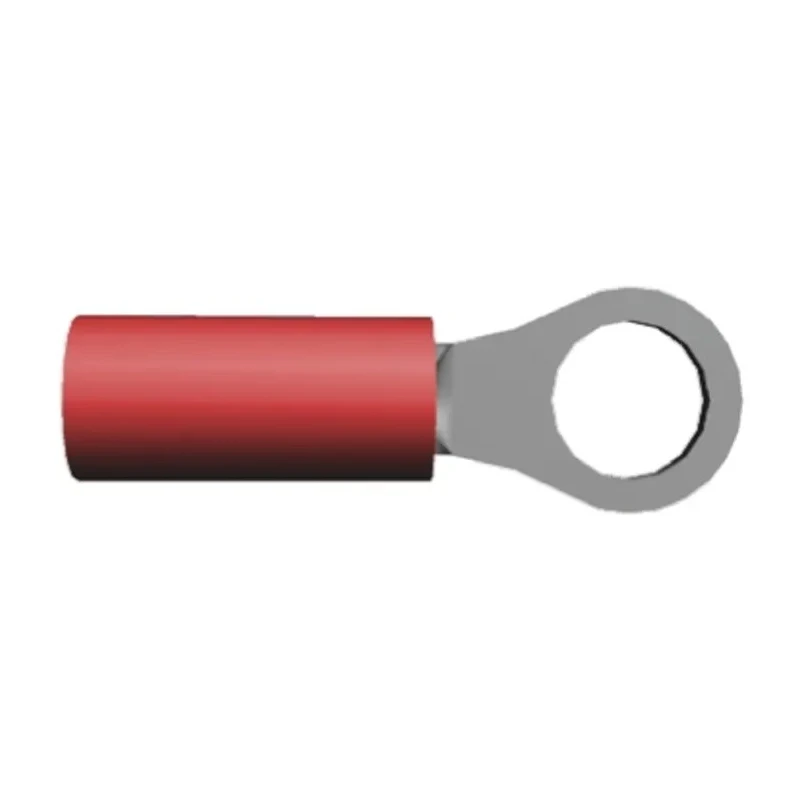

TE Connectivity PIDG Insulated Ring Terminal, M4 Stud Size, 22 AWG to 18 AWG Wire Size, Red 171508-5
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| THICKNESS | 0.79mm |
| Model | 171508-5 |
| Insulation | Insulated |
| Overall Length | 16.7mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 1mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Inner Ring Diameter | 4.34mm |
| Stud Size | M4 |
Key Features
- Constructed with high conductivity copper body for optimal performance.
- Features copper sleeve for enhanced wire insulation support and durability.
- Serrated wire barrel ensures maximum contact and tensile strength after crimping.
- Colour-coded nylon sleeve allows easy wire size identification.
- Funnelled wire entry facilitates fast and reliable wire insertion.
- Designed for uniform and reliable crimp with specialized tooling dies.
- Complies with RoHS standards for environmental safety.
- Suitable for a wide range of industrial applications including aerospace, automotive, and controls.
Product Description
TE Connectivity 171508-5 PIDG Insulated Ring Terminal is a precision-engineered wire terminal designed for secure electrical connections in demanding environments. Its M4 stud size and compatibility with wire sizes ranging from 22 AWG to 18 AWG make it versatile for various industrial, automotive, and aerospace applications.
The terminal features a copper body and barrel with tin plating, ensuring high conductivity and corrosion resistance. Inside the barrel, serrations enhance contact and tensile strength after crimping. A copper sleeve wraps the barrel to improve wire insulation support and prevent fraying during use. The outer red nylon sleeve is colour-coded for easy wire size identification and tooling.
The funnelled wire entry design provides easy and quick wire insertion, optimizing productivity in high-volume manufacturing. These terminals are suitable for applications in instrumentation, lighting, power supplies, panel boxes, motors, aerospace, and other industrial sectors.
High conductivity copper body enhances electrical performance. Copper sleeve supports and protects wire insulation during crimping. Serrated wire barrel maximizes contact and tensile strength. Colour-coded nylon sleeve for clear wire size identification.
Funnelled entry facilitates quick and reliable wire insertion. Complies with RoHS directives ensuring environmental safety. Compatible with multiple stud and wire sizes for versatile use. Designed for uniform and reliable crimps with specialized tooling.
This PIDG insulated ring terminal from TE Connectivity offers reliable, durable, and safe wire termination solutions across industrial, laboratory, manufacturing, and aerospace applications. Browse the Electronics Components category on EnvMart for compatible connectors and wiring accessories.
Explore more products in our Wire Terminals & Splices category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal is compatible with wire sizes ranging from 22 AWG to 18 AWG.
The stud size for this model is M4.
The maximum operating temperature for this terminal is 105°C.
The terminal features a copper body with tin plating for the contact, and an insulated nylon sleeve.
It features a funnelled wire entry design that allows for easy and quick wire insertion, optimizing productivity.
This terminal complies with RoHS standards for environmental safety.
The overall length of this terminal is 16.7mm.
The thickness of the terminal is 0.79mm.
The inner ring diameter of this terminal is 4.34mm.
This terminal is suitable for a wide range of industrial applications, including aerospace, automotive, and controls.
The serrated wire barrel maximizes contact and tensile strength after crimping, ensuring reliable connections.
This terminal is manufactured in India.
