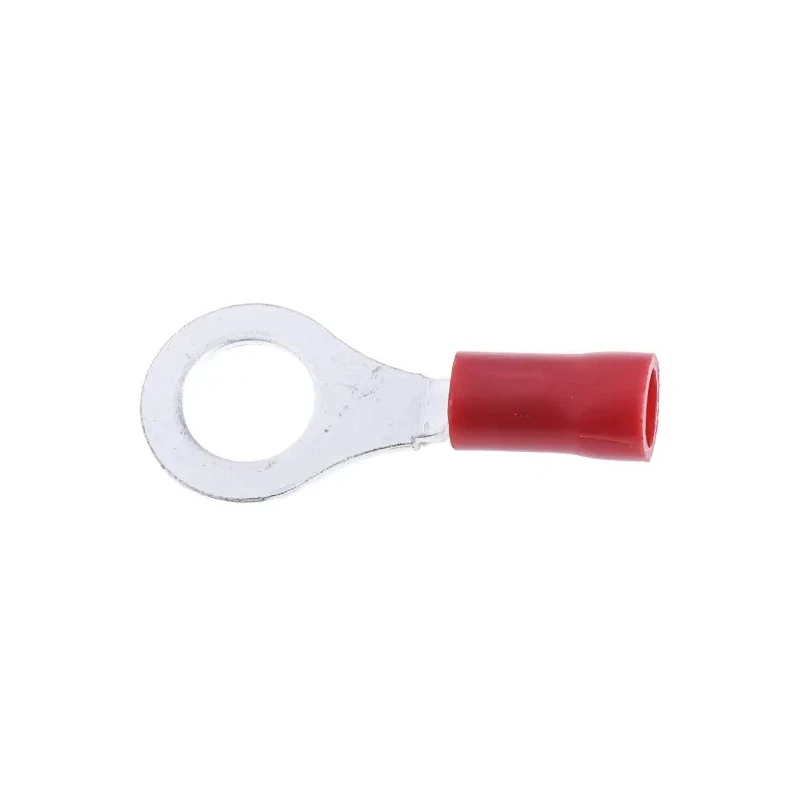

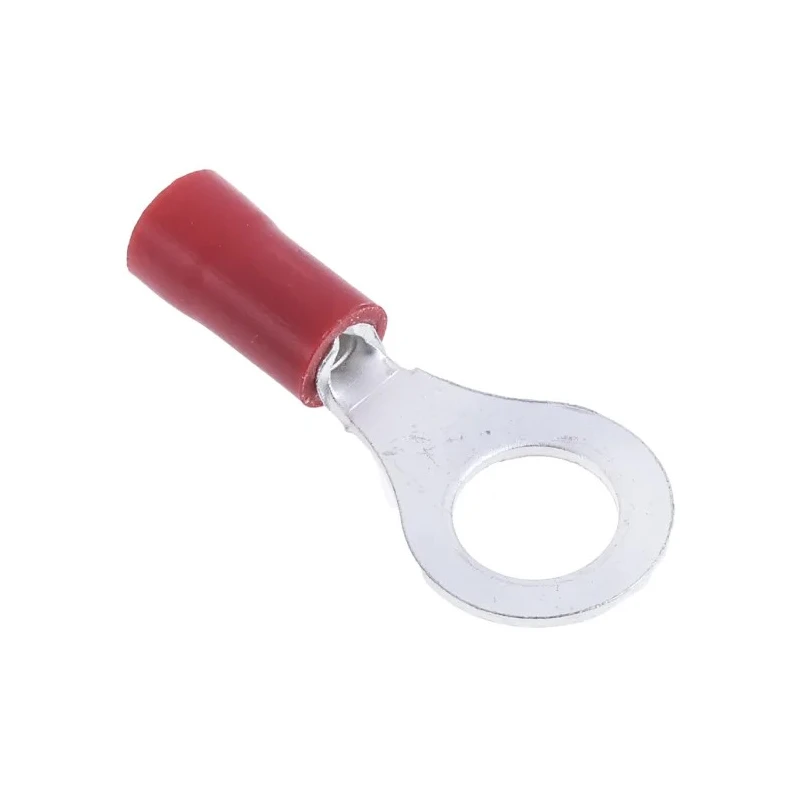

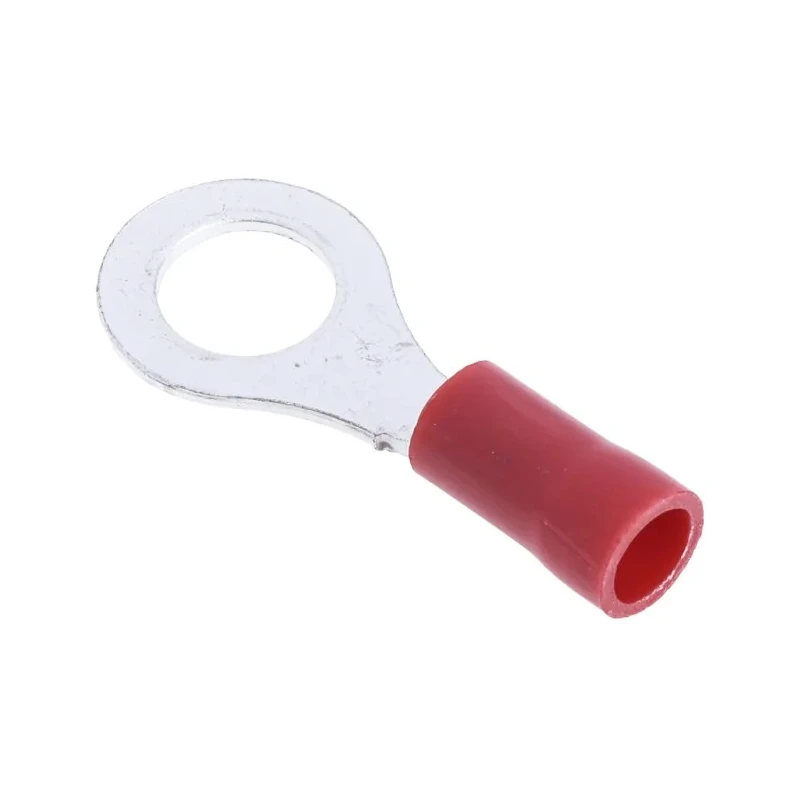

RS PRO Insulated Ring Terminal M6 Stud Size, 22 AWG to 16 AWG Wire Size, Red, Polyvinyl Chloride Insulation 534-193
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Colour | Red |
| THICKNESS | 0.8mm |
| Model | 534-193 |
| Insulation | Insulated |
| Overall Length | 26.7mm |
| Contact Material | Copper |
| Maximum Operating Temperature | 75°C |
| Insulation Material | Polyvinyl Chloride |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 11mm |
| Inner Ring Diameter | 6.35mm |
| Stud Size | M6 |
| CRIMP CONNS-EYELET OBABrand | NEUTRAL |
| RS PRO Insulated Ring Terminal, M6 Stud Size 22 AWG 16 AWG Wire Size, RedBrand | RS PRO |
Key Features
- Copper contact material ensures excellent electrical conductivity.
- Tin plating provides corrosion resistance and enhanced durability.
- Vinyl insulation protects terminals and aids easy wire insertion.
- Designed for operation up to 75°C maximum temperature.
- Overall terminal length measures 26.7 mm for secure connections.
- Outer ring diameter is 11 mm and inner ring diameter is 6.35 mm.
- Suitable for industrial, automotive, communication, and domestic appliance wiring.
- Color-coded red insulation simplifies terminal size identification.
Product Description
RS PRO 534-193 Insulated Ring Terminal is a high-quality electrical connection component designed with copper contact material and tin plating to ensure maximum conductivity and corrosion resistance. It features red polyvinyl chloride insulation for secure electrical insulation and easy size identification, suitable for M6 stud sizes and wire gauges from 22 AWG to 16 AWG.
The terminal measures 26.7 mm in overall length with an outer ring diameter of 11 mm and an inner ring diameter of 6.35 mm, and a thickness of 0.8 mm, making it compact yet reliable. Its design facilitates industrial control system wiring, automotive applications, communication equipment, power supplies, and domestic appliances.
The vinyl insulation not only protects the terminal but also allows quick and easy wire insertion due to the expanded insulation entry point. The tin plating on the copper contact enhances durability and provides excellent corrosion resistance for long service life.
These ring terminals are ideal for crimping onto wires using ratchet crimping tools to achieve secure, durable connections. They operate safely up to a maximum temperature of 75°C, ensuring suitability for various electrical environments.
Copper material delivers high conductivity and easy crimping. Tin plating extends terminal lifespan and resistance against corrosion. Vinyl insulation provides electrical insulation and mechanical protection. Red color coding for quick, accurate terminal size recognition.
Expanded insulation entry ensures simple and reliable wire insertion. Meets the needs of industrial, automotive, communication, and domestic appliance wiring.
The set is made in Taiwan, Province Of China, and is designed for new installation use. RS PRO products offer reliable performance in industrial and commercial electrical applications. Browse EnvMart for more RS PRO electrical components and wiring accessories.
Explore more products in our Wire Terminals & Splices category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this insulated ring terminal is 75°C.
This terminal is suitable for wire sizes ranging from 22 AWG to 16 AWG.
The overall length of the terminal is 26.7 mm, with an outer ring diameter of 11 mm and an inner ring diameter of 6.35 mm.
The contact material of this terminal is copper, which ensures excellent electrical conductivity.
It features polyvinyl chloride (PVC) insulation, providing electrical insulation and mechanical protection.
The thickness of the terminal is 0.8 mm.
The tin plating on the copper contact enhances corrosion resistance and durability.
This terminal is suitable for industrial control systems, automotive applications, communication equipment, power supplies, and domestic appliances.
The stud size for this ring terminal is M6.
The design includes an expanded insulation entry point, which allows for quick and easy wire insertion.
This insulated ring terminal is manufactured in Taiwan, Province Of China.
The insulation on this terminal is color-coded red, simplifying terminal size identification.
