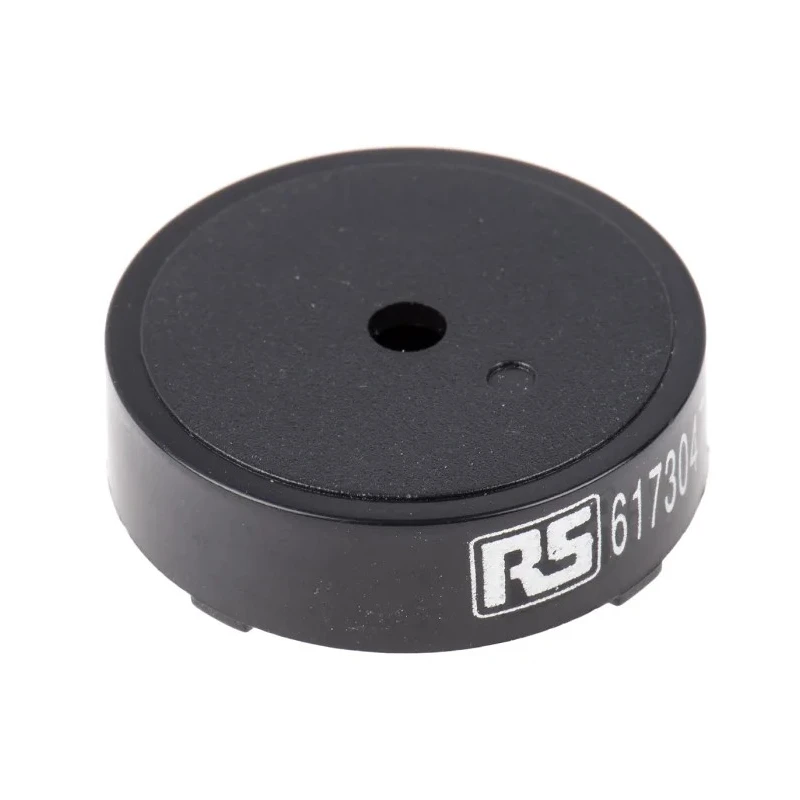

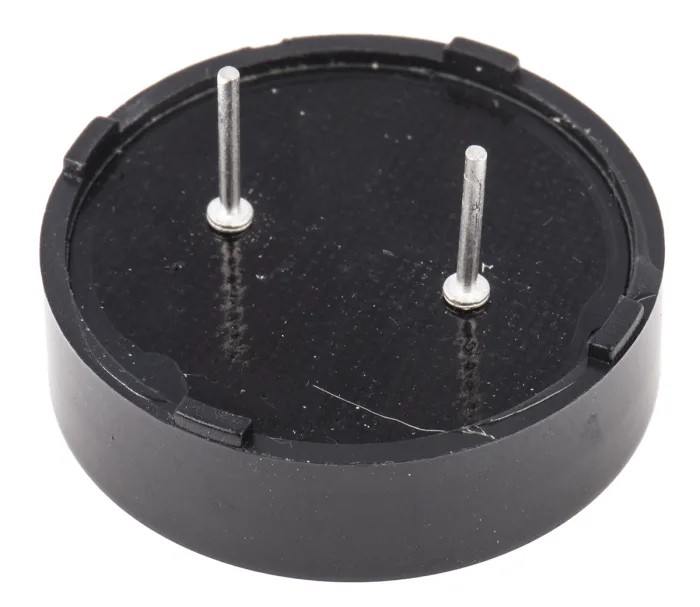

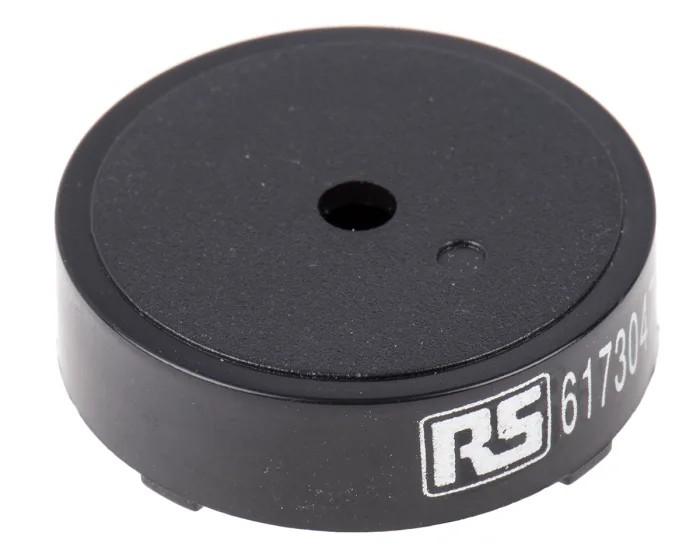

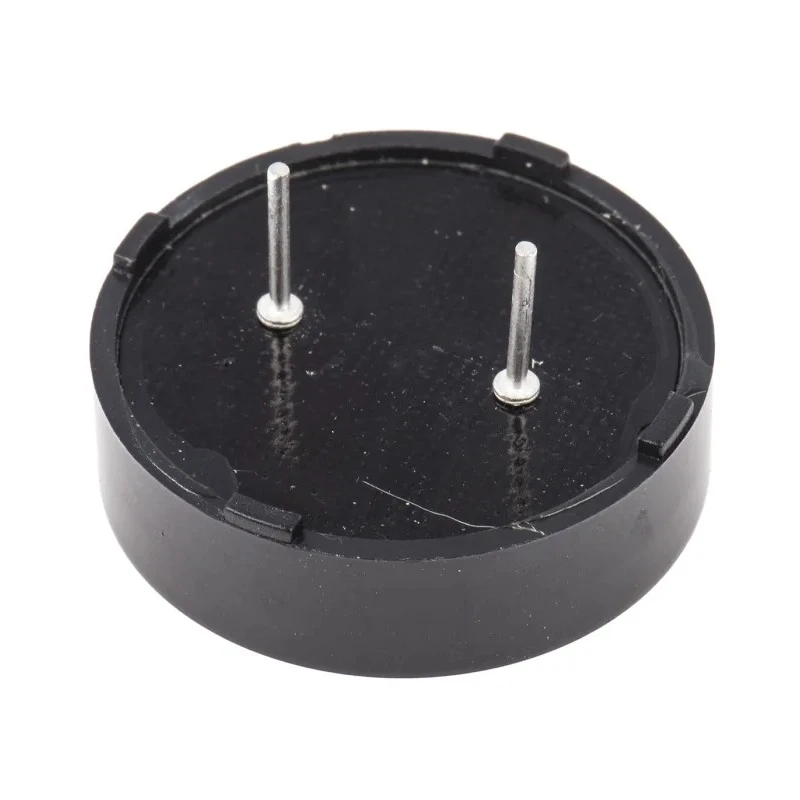

RS PRO 85 dB Through Hole Continuous External 7.5 mm Diameter 24 mm Piezo Buzzer Component 1 V AC Min 30V AC Max 617-3047
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 24mm |
| Brand | RS PRO |
| Sound Level | 85dB |
| Height | 7.5mm |
| Model | 617-3047 |
| Drive Type | External |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 60°C |
| Capacitance | 17nF |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | RoHS |
| Maximum Frequency | 4.5kHz |
| Maximum Supply Voltage | 30V ac |
| Minimum Supply Voltage | 1V ac |
| Supply Current | 3mA |
| Tone Type | Continuous |
| Minimum Frequency | 3500Hz |
| Through Hole Piezo Buzzer, 1V ac Min, 20V ac MaxBrand | NEUTRAL |
Key Features
- Compact round PCB mount with a 24 mm diameter and 7.5 mm height.
- Requires an external drive circuit for operation.
- Capacitance rated at 17 nF for stable performance.
- Operates in temperatures ranging from -20°C to 60°C.
- Sound frequency ranges between 3500 Hz and 4.5 kHz.
- Consistent supply current of 3 mA ensures energy efficiency.
- Complies with RoHS standards for environmental safety.
- Designed for industrial and electronic component applications.
Product Description
RS PRO 617-3047 is a high sound output piezo buzzer component designed for through-hole PCB mounting. With a 24 mm diameter and a compact 7.5 mm height, this buzzing device produces a continuous tone at a loudness of 85 dB, suitable for alert systems and signaling applications in various electronic devices.
The buzzer operates with a minimum supply voltage of 1 V AC and a maximum of 30 V AC and requires an external drive circuit to function properly. It provides a consistent supply current of 3 mA, ensuring efficient power consumption. This component features a capacitance of 17 nF and sustained performance within temperature ranges from -20°C to 60°C.
Sound frequency ranges between 3500 Hz and 4.5 kHz, allowing for clear audible signaling across environments. RoHS compliance confirms this product meets environmental regulations, making it suitable for use in sustainable industrial electronics manufacturing.
This Piezo Buzzer Component is widely utilized in industrial, manufacturing, and electronic assembly applications, fitting into electronic component sets requiring reliable sound signaling. Its compact form factor and continuous tone output make it versatile for various electronics assemblies, including power and passive component circuits.
Compact round PCB mount with a 24 mm diameter and 7.5 mm height. Requires an external drive circuit for operation. Capacitance rated at 17 nF for stable performance. Operates in temperatures ranging from -20°C to 60°C. Sound frequency ranges between 3500 Hz and 4.5 kHz.
Consistent supply current of 3 mA ensures energy efficiency. Complies with RoHS standards for environmental safety. Designed for industrial and electronic component applications. Explore other electronics components from RS PRO at EnvMart to complement your projects and production line needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a diameter of 24 mm and a height of 7.5 mm, making it compact for PCB mounting.
It produces a sound level of 85 dB, suitable for alert systems and signaling applications.
The buzzer operates effectively within a temperature range of -20°C to 60°C.
It requires a minimum supply voltage of 1 V AC and a maximum of 30 V AC for operation.
The sound frequency ranges between 3500 Hz and 4.5 kHz, allowing for clear signaling.
Yes, it requires an external drive circuit to function properly.
The capacitance is rated at 17 nF, which contributes to its stable performance.
This unit is designed for through-hole mounting on PCBs.
Yes, it complies with RoHS standards for environmental safety.
It has a consistent supply current of 3 mA, ensuring energy efficiency during operation.
It is widely utilized in industrial, manufacturing, and electronic assembly applications for reliable sound signaling.
The country of origin for this piezo buzzer component is China.
