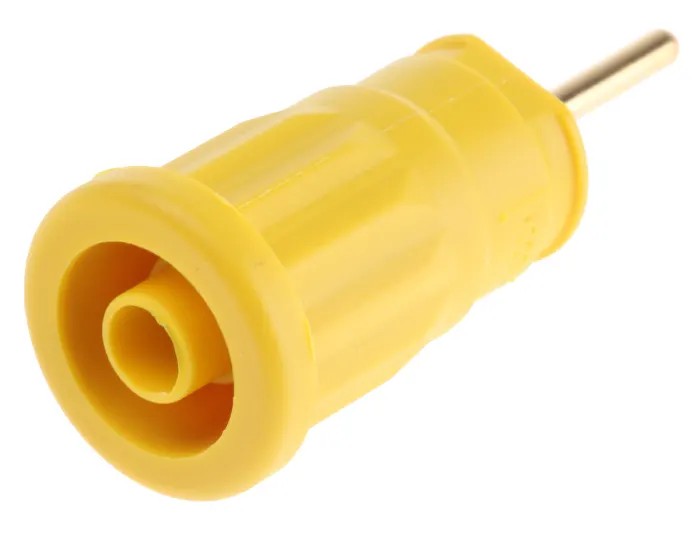

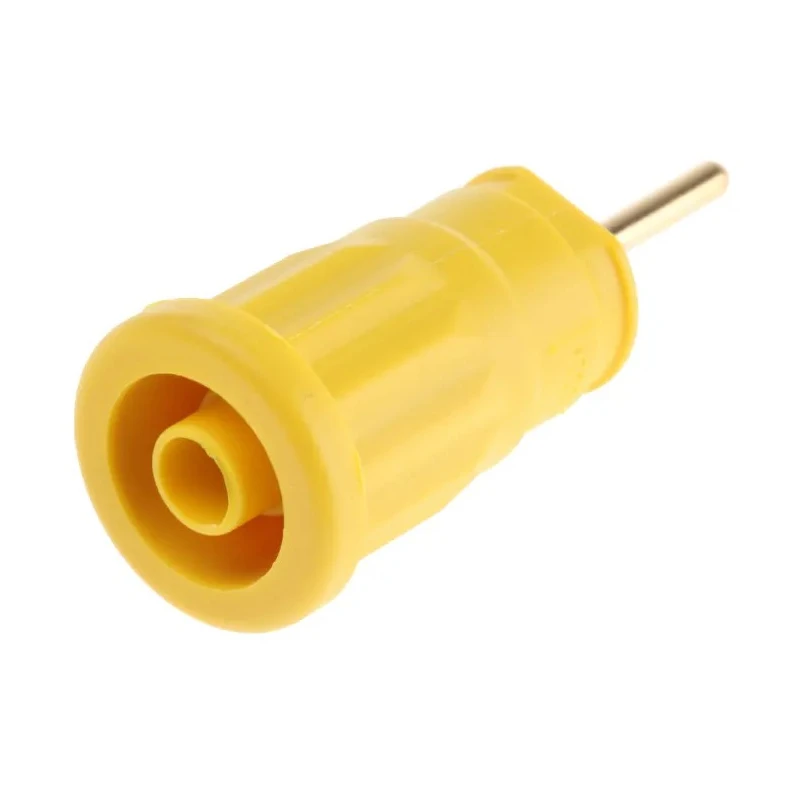

Hirschmann Test & Measurement Yellow Female Test Socket, Solder Termination, 1000 V AC/DC, 24A, Gold Plating 972 363-103

Hirschmann Test & Measurement 972 363-103 Yellow Female Test Socket is engineered for precise and safe electrical testing applications. The solder termination type enables robust soldering to printed circuit boards or installations within equipment chassis.

This test socket supports high voltages of up to 1000 V AC and 1000 V DC and can carry currents up to 24 amperes, making it suitable for demanding electrical testing scenarios. Its yellow color aids in quick identification during assembly or maintenance.

Constructed from high-quality brass contacts with gold plating, the connector ensures excellent conductivity and resistance to oxidation or corrosion. The insulative body is made from durable polyamide material to withstand environmental stresses.

The design includes a 4 mm flush-mount safety base compatible with Hirschmann CAT II 4 mm safety system sockets, featuring a 1.9 mm soldering spike for solder termination. It can be mounted quickly on front faces with thicknesses ranging from 1 to 10 mm, with an installation hole diameter of 12.2 mm.

The socket complies with IEC 61010 safety standards, assuring reliability and industry conformity. Its temperature range from -40 to +80 degrees Celsius suits a variety of industrial and laboratory environments.

The test socket is yellow in color for easy identification. Featuring a female gender connector suitable for test applications. Solder termination method ensures secure electrical contact. Rated for 24 amperes current carrying capacity.

Supports voltage up to 1000 V AC and 1000 V DC for versatile usage. Contact plating is gold for enhanced conductivity and corrosion resistance. Connector length is 36 mm for optimal mounting. Constructed with brass contact material and polyamide insulation for durability.

Meets IEC 61010 safety standards for electrical testing equipment. Designed with a 4 mm safety base and 1.9 mm gold-plated soldering spike for secure installation.

This Hirschmann test connector is ideal for electrical test and measurement applications in industrial, laboratory, manufacturing, and maintenance settings requiring high-quality, safe, and durable connection components.
