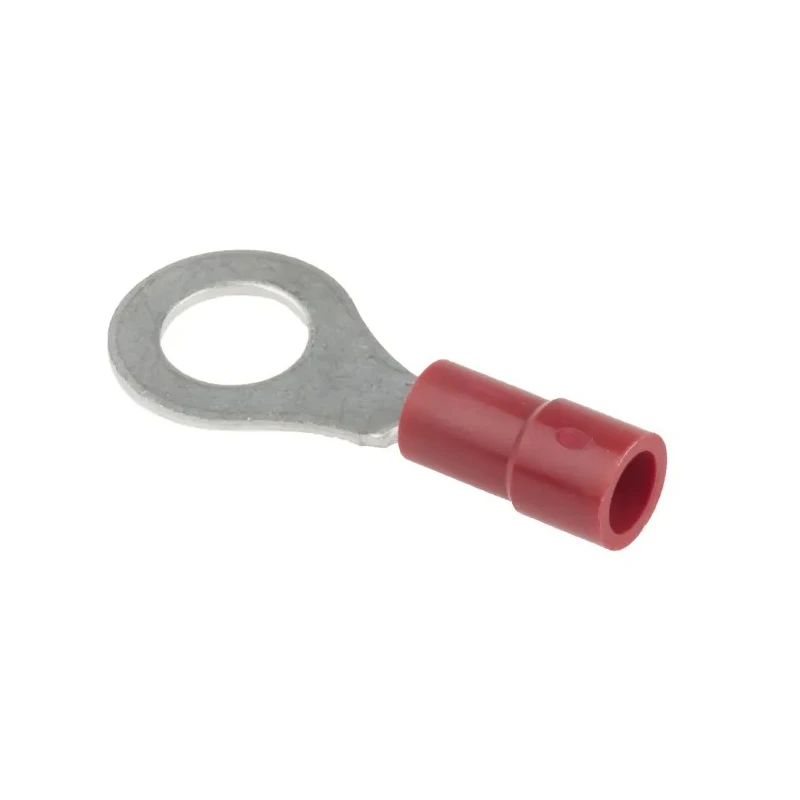

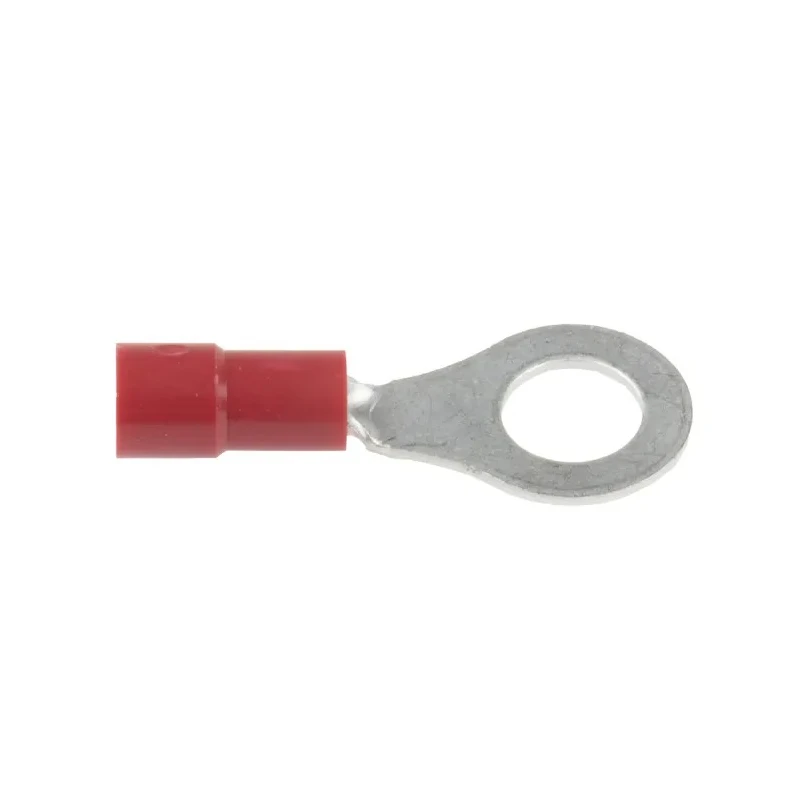

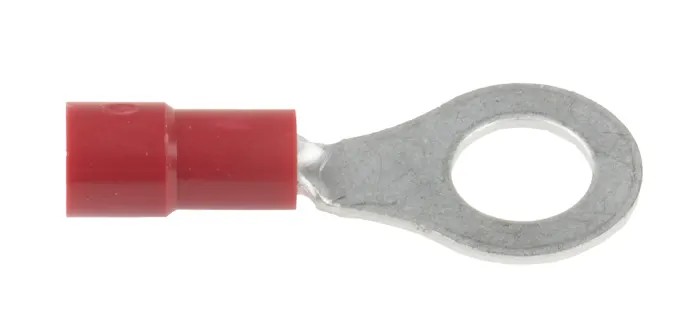

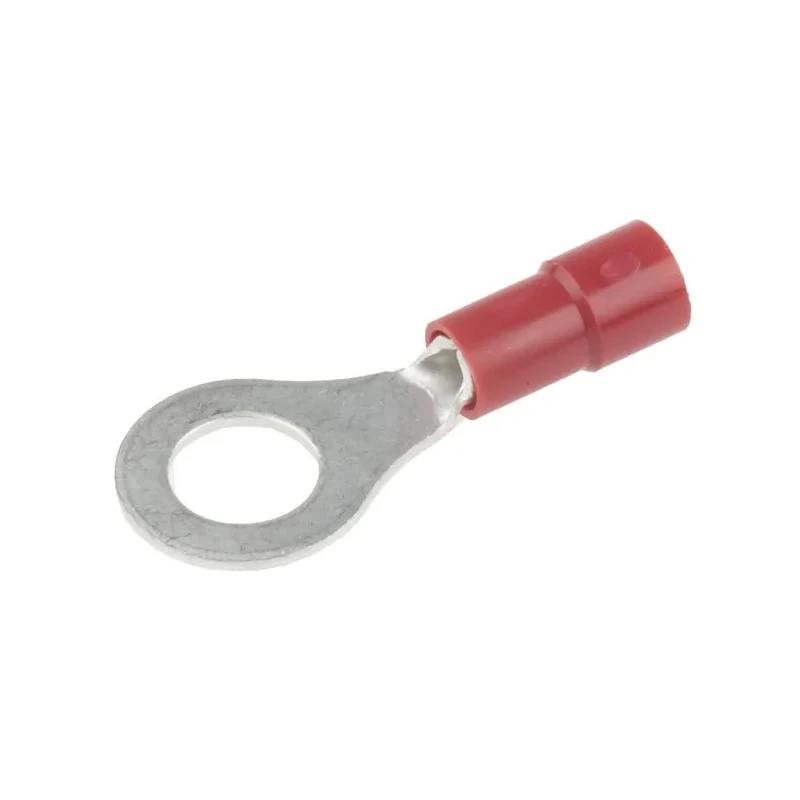

RS PRO Insulated Ring Terminal, M6 Stud, 22 AWG to 16 AWG Wire Size, Vinyl Insulation, Copper Tin Plated, Red 613-9255
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Colour | Red |
| THICKNESS | 0.75mm |
| Model | 613-9255 |
| Insulation | Insulated |
| Overall Length | 27.8mm |
| Contact Material | Copper |
| Series | RS PRO |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Vinyl |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 11.6mm |
| Inner Ring Diameter | 6.4mm |
| Stud Size | M6 |
| RS PRO Insulated Ring Terminal, M6 Stud Size 22 AWG 16 AWG Wire Size, RedBrand | RS PRO |
| RND, RND 465 Insulated Ring Terminal, 1/4in Stud Size, RedBrand | RND |
| RF Insulated Crimp Ring Terminal, M6 Stud Size, RedBrand | NEUTRAL |
Key Features
- Copper body material ensures high electrical conductivity and easy crimping.
- Tin plating resists corrosion and enhances conductivity.
- Vinyl insulation protects terminals and allows color-coded size identification.
- Suitable for wire sizes from 22 AWG (0.5mm²) to 16 AWG (1.5mm²).
- Red color coding aids quick terminal size recognition.
- Outer ring diameter is 11.6mm and inner ring diameter is 6.4mm for M6 stud compatibility.
- Terminal thickness is 0.75mm for durability.
- Operating temperature ranges from -40°C to 105°C.
Product Description
The RS PRO 613-9255 insulated ring terminal is a high-quality vinyl insulated crimp ring connector designed for use with wires sized from 22 AWG to 16 AWG (0.5mm² to 1.5mm²). Featuring a copper contact body tin plated for enhanced corrosion resistance and conductivity, this ring terminal ensures secure and reliable electrical connections to components with an M6 stud.
The red vinyl insulation provides excellent electrical insulation as well as terminal protection, with color coding to facilitate quick size identification. The terminal's dimensions - outer ring diameter of 11.6mm and inner ring diameter of 6.4mm - make it compatible with M6 studs commonly found in electrical and automotive equipment.
With a thickness of 0.75mm and an overall length of 27.8mm, this ring terminal balances durability and ease of crimping. It operates efficiently within temperatures ranging from -40°C to 105°C, making it suitable for diverse environments.
These insulated crimp ring terminals are widely used in industrial control systems, automotive wiring, communication devices, power supplies, and domestic appliances to ensure secure and efficient electrical connections.
Copper contact body for excellent electrical conductivity. Tin plating provides corrosion resistance and maintains conductivity. Vinyl insulation protects and aids terminal identification by color. Compatible with 22 AWG to 16 AWG wire size range.
M6 stud size ensures wide application compatibility. Durable construction supporting operating temperatures from -40°C to 105°C. Easy to crimp with appropriate tools for dependable connections. Red insulation facilitates quick visual recognition in installations.
Overall length and thickness provide mechanical strength and reliability.
Choose RS PRO insulated ring terminals for dependable wire-to-stud connections in industrial, laboratory, automotive, HVAC, and commercial electrical applications. Explore more quality products in the Electronics Components category at EnvMart.
Explore more products in our Wire Terminals & Splices category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This insulated ring terminal is compatible with wire sizes ranging from 22 AWG (0.5mm²) to 16 AWG (1.5mm²).
The outer ring diameter is 11.6mm, while the inner ring diameter is 6.4mm. The overall length of the terminal is 27.8mm.
It operates efficiently within a temperature range of -40°C to 105°C.
The terminal features a copper contact body that is tin plated for corrosion resistance, and it has vinyl insulation for electrical protection.
The terminal has a thickness of 0.75mm, providing mechanical strength and reliability.
This insulated ring terminal is designed to fit M6 stud sizes, making it compatible with various electrical and automotive applications.
The vinyl insulation protects the terminal and aids in quick visual identification through its red color coding.
Yes, it is widely used in automotive wiring as well as in industrial control systems and communication devices.
The contact material is copper, which ensures high electrical conductivity.
Tin plating enhances corrosion resistance and maintains conductivity, ensuring reliable electrical connections.
This terminal is designed for easy crimping with appropriate tools, ensuring secure connections.
The insulated ring terminal is manufactured in Taiwan.
