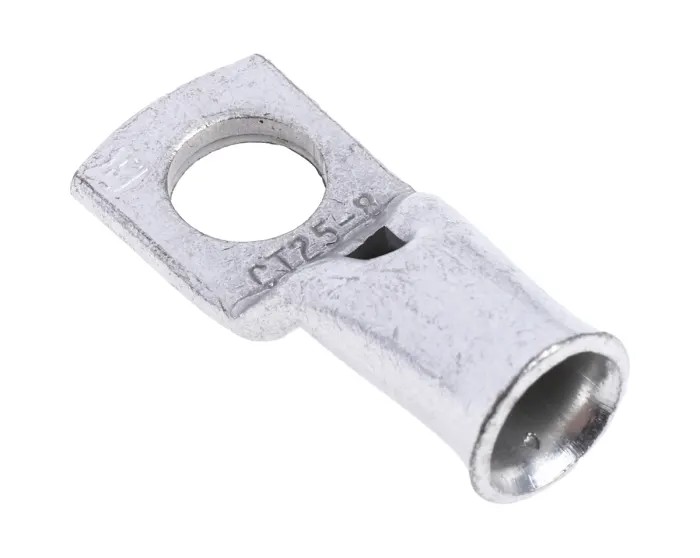

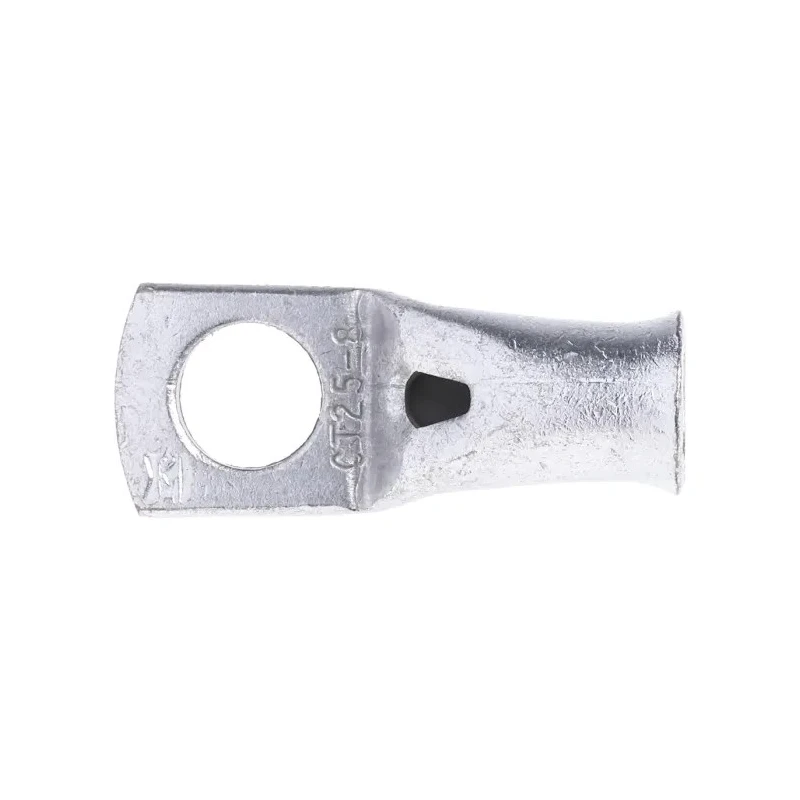

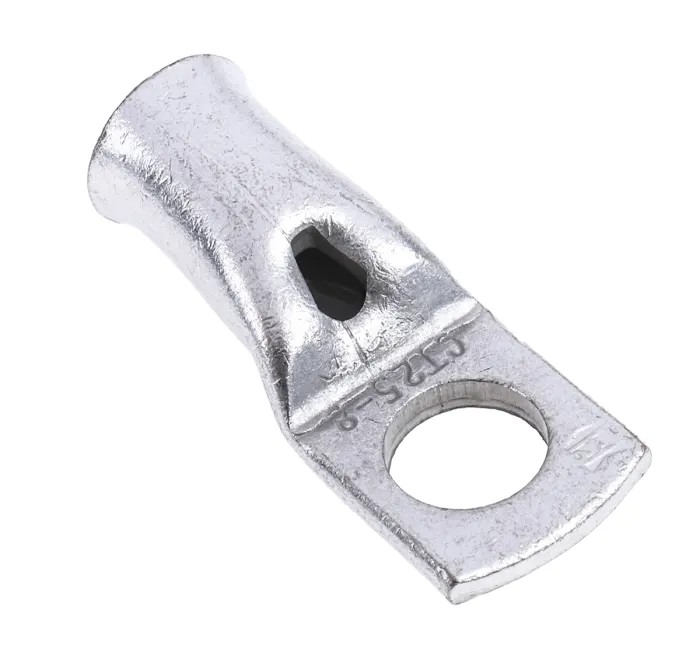

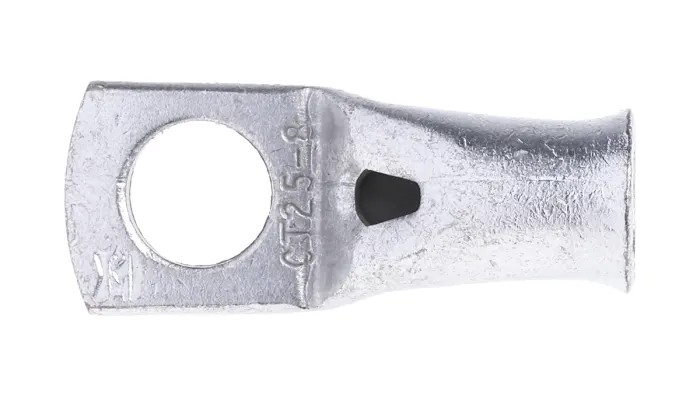

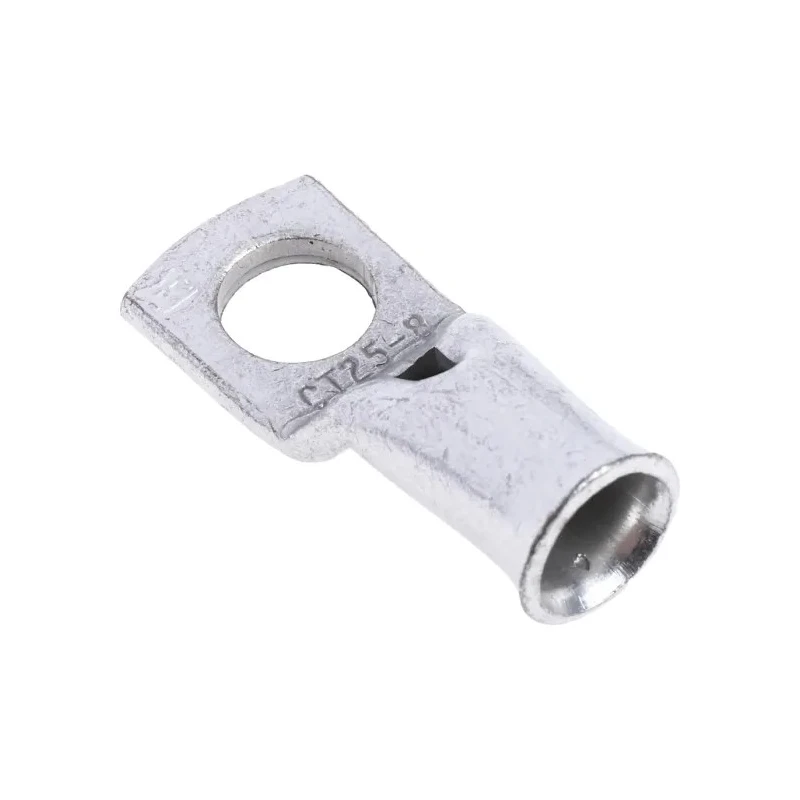

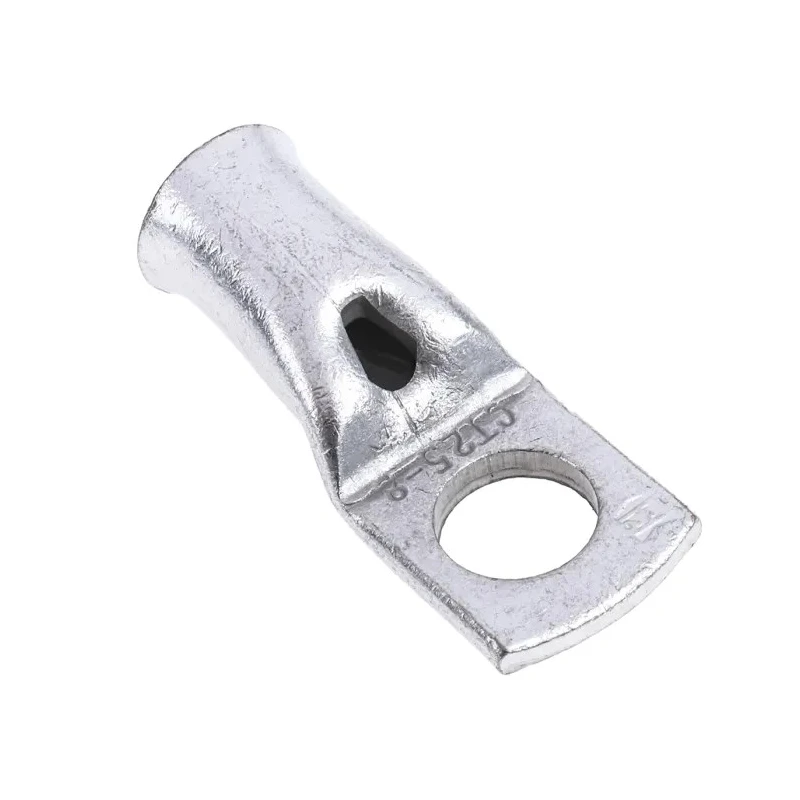

RS PRO Uninsulated Tubular Ring Terminal M8 Stud Size 4 AWG Wire Size Grey 531-071

RS PRO 531-071 uninsulated tubular ring terminal is engineered for dependable electrical connectivity in industrial and heavy-duty electrical systems. Designed specifically for an M8 stud size with a 4 AWG wire size, this grey ring terminal is constructed from highly conductive copper, plated with tin to provide resistance against corrosion and enhanced solderability. The thick-walled tubular design ensures a robust mechanical and electrical connection when crimped correctly.

The tubular barrel shape is funnel-shaped internally, which facilitates easy wire insertion, and the closed barrel secures the connection around the wire. This terminal is suitable for multi-stranded cables and is widely used in applications such as industrial control systems, automotive wiring, power supplies, communication equipment, and domestic appliances where a secure crimped connection to a stud or post is required.

Key specifications include an outer ring diameter of 13.1 mm, inner ring diameter of 8.4 mm, overall length of 32.2 mm, and a maximum wire size of 4 AWG (25 mm²). The terminal is rated for maximum operating temperatures up to 150°C, complying with RoHS and ANSI/ESD S20.20:2021 electrostatic standards, ensuring safety and performance in electrostatic-sensitive environments.

The uninsulated design is appropriate where there is no risk of short circuits through accidental contact. Suitable crimping tools include heavy-duty handheld and hydraulic crimp tools, ensuring secure and consistent crimps. The product is manufactured in China, reflecting high quality standards.

Constructed from copper material with tin plating for corrosion resistance. Robust thick-walled tubular barrel for secure crimping. Designed for 4 AWG wire size and M8 stud size. Maximum operating temperature of 150°C. Compliant with RoHS and ANSI/ESD S20.20:2021 standards.

Uninsulated grey color design for identification. Compatible with heavy duty and hydraulic crimp tools. Funnel-shaped internal barrel for easy wire insertion. Suitable for multi-stranded cables in industrial and automotive applications.

Manufactured in China for quality assurance.

This RS PRO ring terminal is a reliable component in electrical connectors suitable for various industrial, manufacturing, automotive, and commercial wiring applications. Explore more in the Wire Terminals & Splices category at EnvMart for compatible electrical components and crimping tools.
