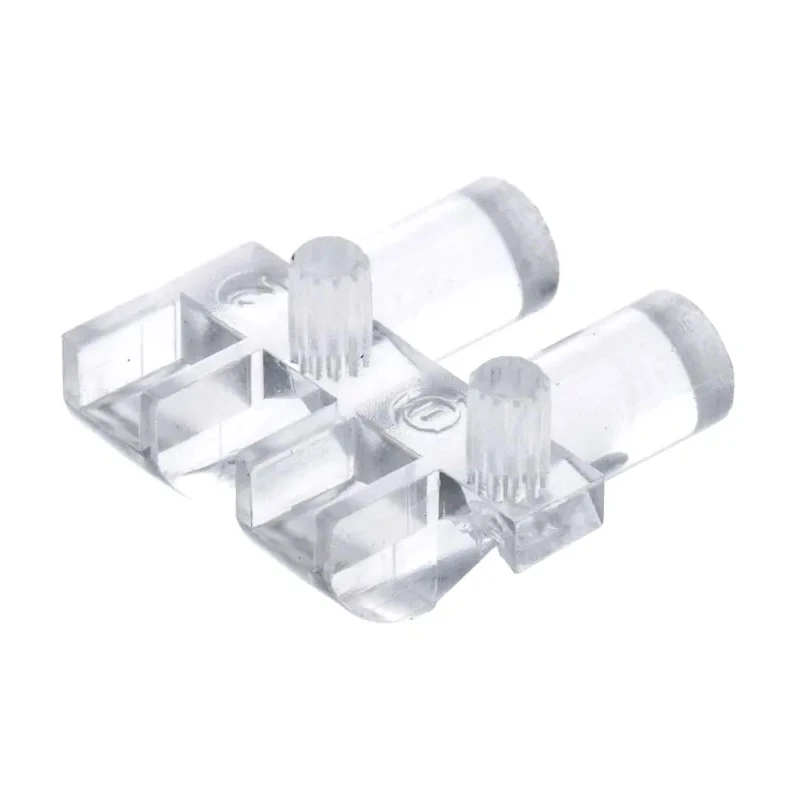

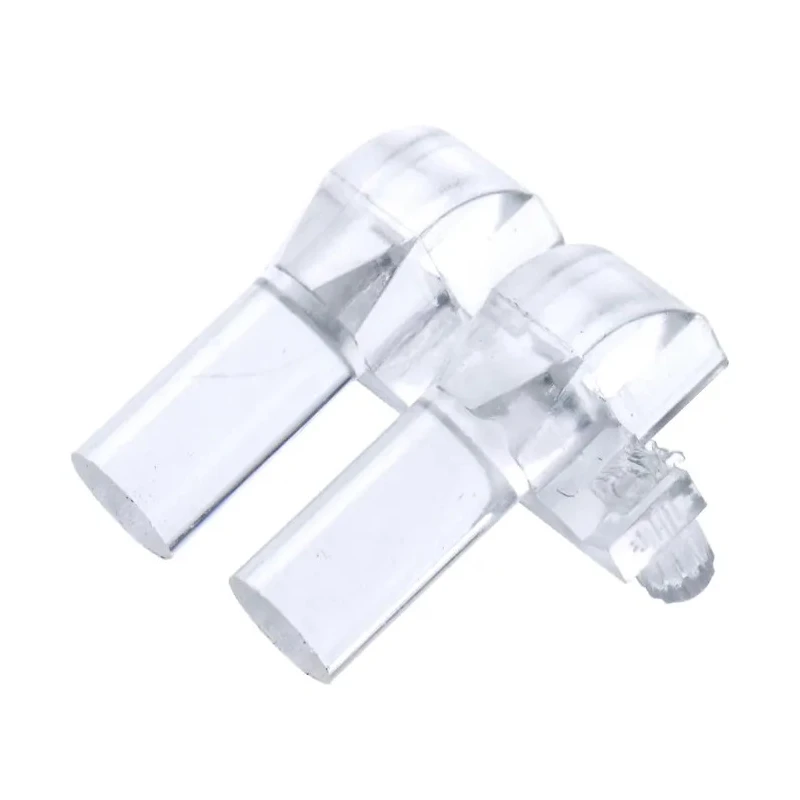

Dialight PCB 2-Way Right Angle Rigid LED Light Pipe Clear 3 x 1.6 mm 515-1071F

Free Delivery in India | Lowest Global Shipping Charges

Dialight PCB 2-Way Right Angle Rigid LED Light Pipe Clear 3 x 1.6 mm 515-1071F

Name: Dialight PCB 2-Way Right Angle Rigid LED Light Pipe Clear 3 x 1.6 mm 515-1071F
Brand: DIALIGHT
SKU: 123539
Price: 1.45 USD
Availability: InStock



Category LED Lighting Components Brand DIALIGHT Condition New

Specifications

Country of Origin	India
Brand	Dialight
Orientation	Right Angle
Length	13.1mm
Model	515-1071F
Number Of Ways	2
Mount Type	PCB
Series	Optopipe
Outside diameter	3mm
Standards/Approvals	RoHS
Flexible/Rigid	Rigid
Lens Size	3 x 1.6 mm
Light Pipe Shape	Round
Number of Light Pipes	2
Configuration Rows x Columns	1 x 2
515-1071 Dialight, Right Angle LED Light Pipe, ClearBrand	Dialight

Key Features

Rigid polycarbonate light pipe offers high transmissivity and durability.
Right angle orientation ideal for PCB mounting and space optimization.
Suitable for 2 LEDs with a 3 mm outside diameter.
Provides electrostatic discharge (ESD) protection for front panel isolation.
Compatible with PLCC-2 and PLCC-4 SMT LED packages.
Complies with RoHS standards for environmental safety.
Features a round light pipe shape with clear lens color.
Secures to PCB via press-fitting for easy installation.

Product Description

Dialight 515-1071F PCB 2-Way Right Angle Rigid LED Light Pipe Clear 3 x 1.6 mm is a precision-engineered optical component from the Optopipe™ series designed to enhance LED light transmission in electronic devices. Manufactured from high-quality polycarbonate material, this rigid light pipe ensures excellent clarity and wide viewing angles, making it suitable for a variety of industrial and commercial LED lighting applications.

This component features a right angle orientation and a compact 13.1 mm length, optimizing PCB space usage. It is specifically designed to house two LEDs, offering effective electrostatic discharge protection by isolating the circuit from the front panel, thus enhancing the device's operational reliability.

The light pipe’s round shape with a 3 mm outside diameter and clear lens ensures efficient light transmission. It is compatible with PLCC-2 and PLCC-4 package SMT LEDs and can be easily press-fitted onto PCBs for sturdy mounting without soldering requirements.

Compliant with RoHS environmental standards and UL94V-0 for flame retardance, this Dialight Optopipe™ series component is ideal for applications in electronics manufacturing, instrumentation, control panels, and other areas requiring reliable LED illumination with enhanced viewing quality and protection.

Rigid polycarbonate light pipe offers high transmissivity and durability. Right angle orientation ideal for PCB mounting and space optimization. Suitable for 2 LEDs with a 3 mm outside diameter. Provides electrostatic discharge (ESD) protection for front panel isolation.

Compatible with PLCC-2 and PLCC-4 SMT LED packages. Complies with RoHS standards for environmental safety. Features a round light pipe shape with clear lens color. Secures to PCB via press-fitting for easy installation.

This product is widely used in the electronics industry including applications in electronic components assembly, manufacturing, and lighting systems integration. It ensures effective light guidance on PCBs while protecting circuits and enhancing visual performance. Explore more LED Lighting Components from Dialight on EnvMart.
