ABB Residual Current Circuit Breaker 25A, 2-Pole, 30mA Trip Sensitivity, Type AC, 1kA Breaking Capacity, DIN Rail Mount FH200

Free Delivery in India | Lowest Global Shipping Charges

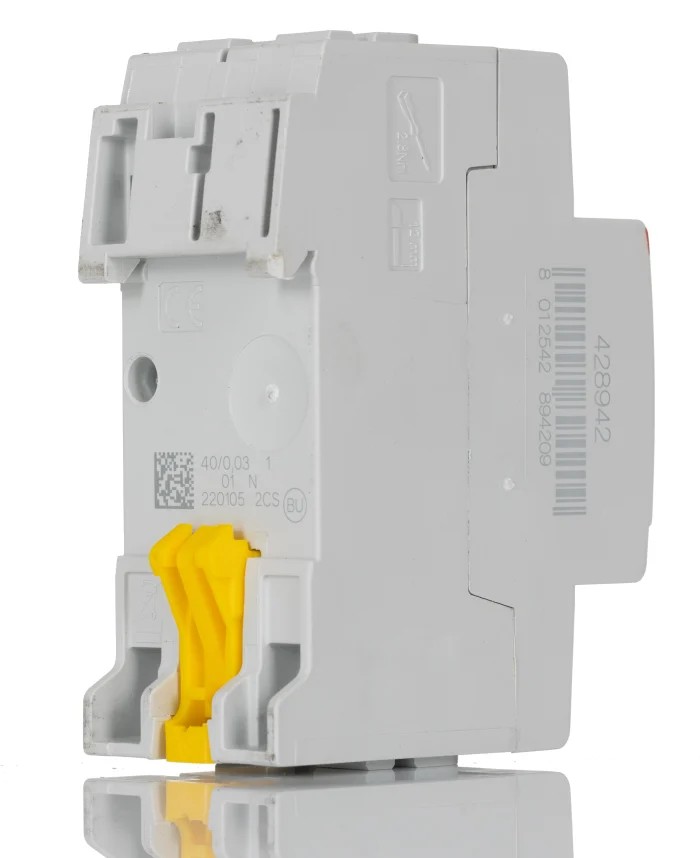

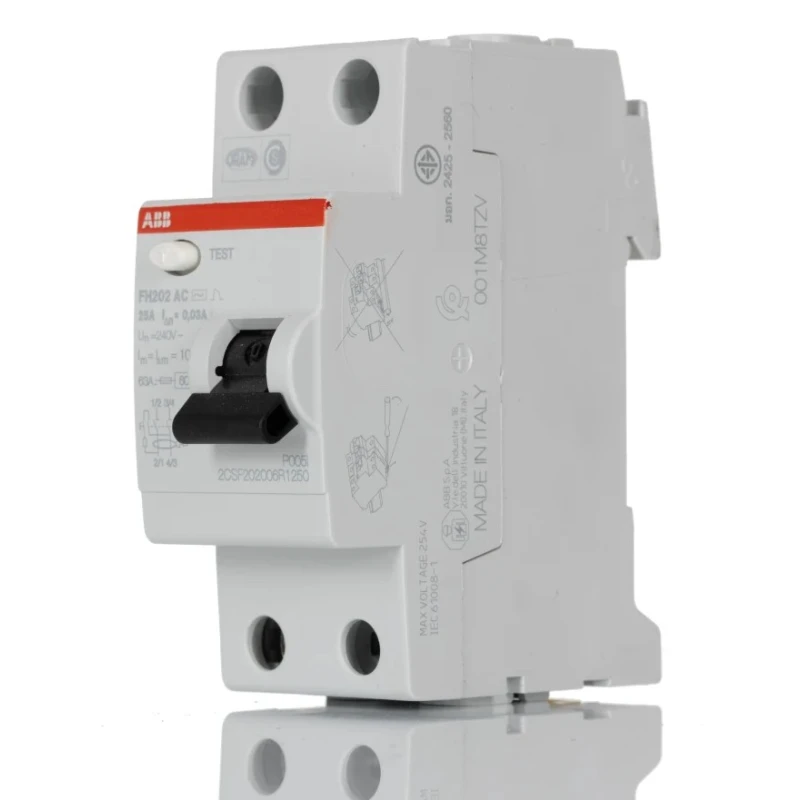

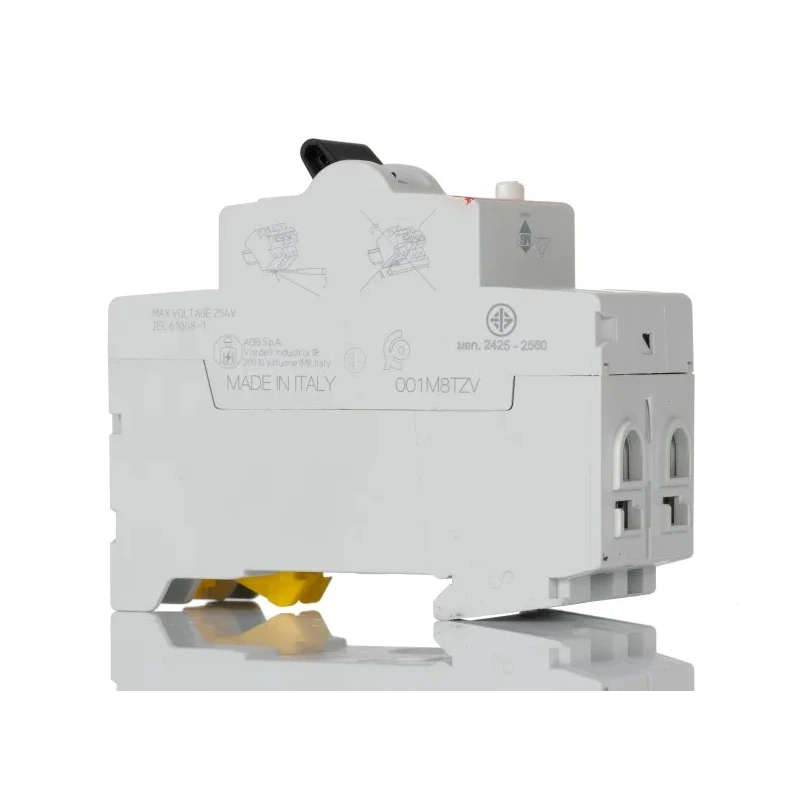

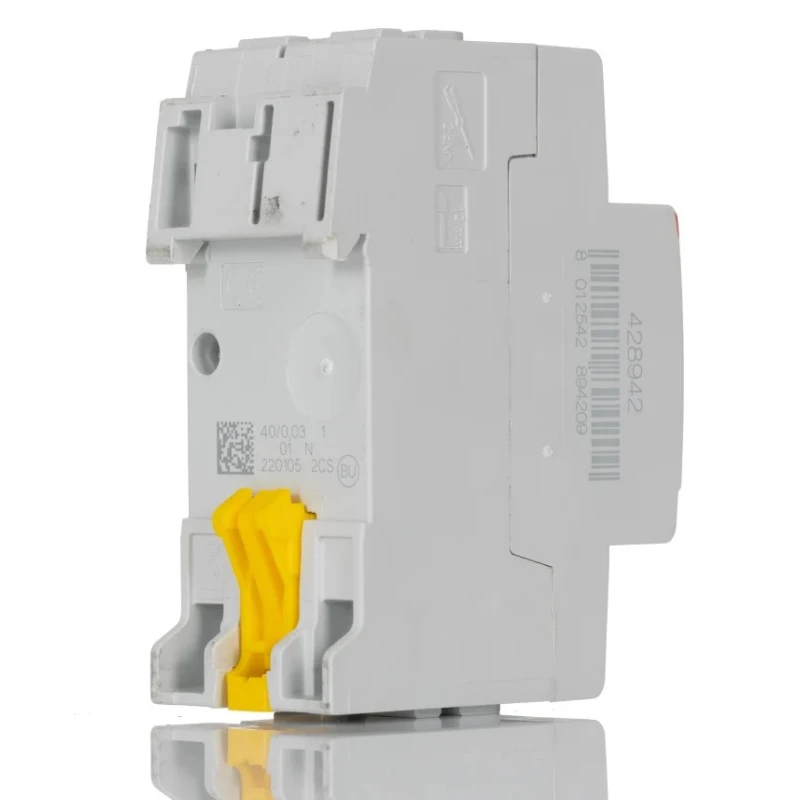

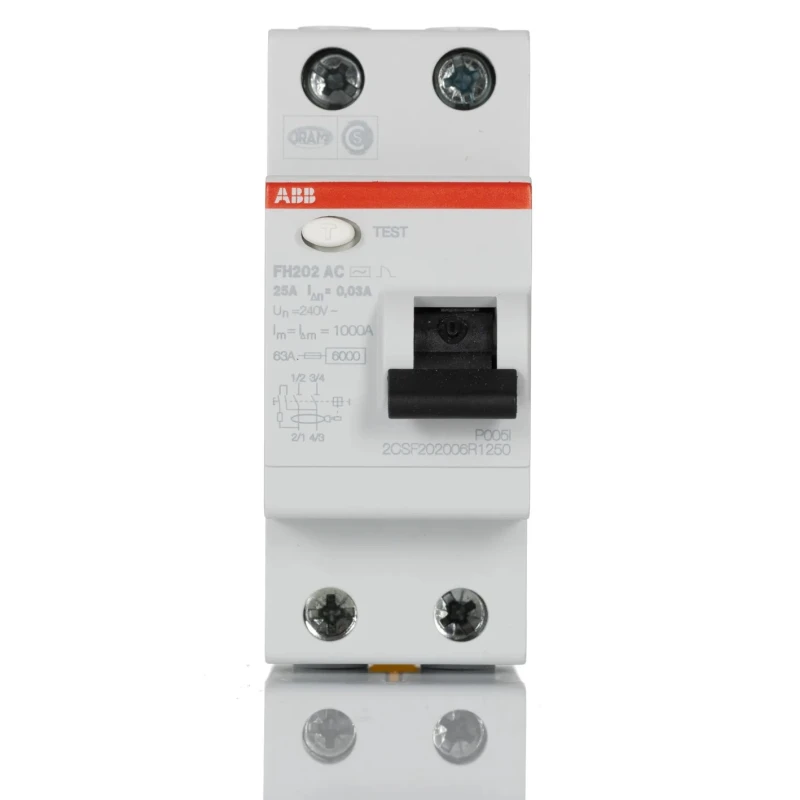

ABB Residual Current Circuit Breaker 25A, 2-Pole, 30mA Trip Sensitivity, Type AC, 1kA Breaking Capacity, DIN Rail Mount FH200



Category Residual Current Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	India
Range	RCCBs F200
Brand	ABB
Height	85mm
Model	FH200
Depth	85mm
Width	35mm
Mount Type	DIN Rail
Current Rating	25A
Series	FH200
Terminal type	Screw
Breaking Capacity	1kA
Number of Poles	2
Standards/Approvals	CE
Rated AC Voltage	230V ac
Tripping Characteristics	Type AC
Reset Actuator Type	Lever
Trip Sensitivity	30mA
Break Time	Instantaneous
Earth Leakage Protection Type	Type A

Key Features

Instantaneous tripping for enhanced safety and protection.
Type AC characterisitic suitable for sinusoidal alternating currents.
DIN rail mounting with compact 35mm width for easy installation.
Screw terminal type ensures secure and vibration-resistant wiring.
Lever reset actuator for user-friendly operation and fast reset.
Breaking capacity of 1kA ensures robust fault interruption performance.
Wide operating temperature range from -5°C to +40°C for versatile use.
Complies with CE standards for quality and safety assurance.

Product Description

ABB FH200 Residual Current Circuit Breaker (Model FH200) is a high-quality electrical safety device rated at 25A current capacity with 2 poles, delivering immediate protection against earth leakage faults with a trip sensitivity of 30mA. This AC Type circuit breaker is engineered for domestic and commercial applications, providing reliable protection against sinusoidal alternating currents common in many electrical installations.

The FH200 series features instantaneous tripping, ensuring fault current detection and circuit interruption occur without delay to prevent electrical shocks and fires. Its DIN rail mount and compact 35mm width make it suitable for fitting into crowded consumer units and distribution panels. Screw-type terminals provide solid, vibration-resistant wire connections, enhancing durability and safety.

The breaker boasts a robust breaking capacity of 1kA at 230V AC, meeting rigorous CE standards to guarantee compliance with applicable safety and quality regulations. The reset actuator is conveniently operated via a lever, allowing quick restoration after tripping events.

Designed to perform reliably across a broad temperature range from -5°C to +40°C, it is ideal for varying environmental conditions found in residential buildings, office blocks, and retail units.

Instantaneous operation enables rapid fault clearing. Type AC trip characteristic protects against standard AC sinusoidal leakage currents. Compact DIN rail mount design for space-efficient installation. Secure screw terminals resist loosening under vibration.

Easy front testing button to verify functionality without disassembly. Earth leakage Type A sensor provides sensitive fault detection. Certified to CE standards ensuring safety compliance.

Used extensively in electrical distribution boards, ABB FH200 series RCCBs are vital for protecting life and property from electrical faults in industrial, commercial, and residential electrical systems.

Explore additional ABB circuit protection devices in the RCCB and MCB categories at EnvMart to secure your electrical installations comprehensively.
