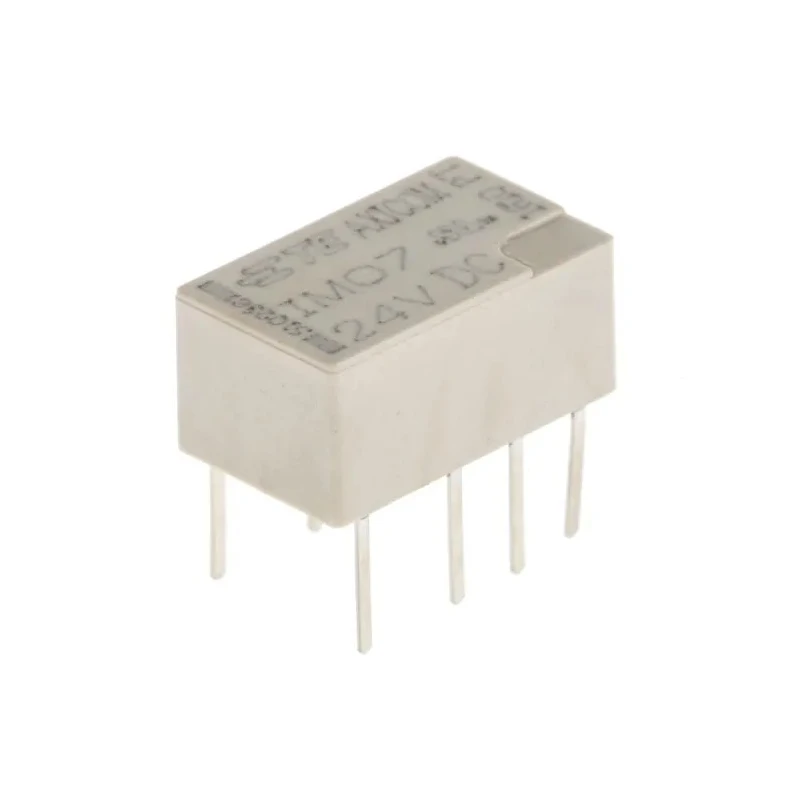

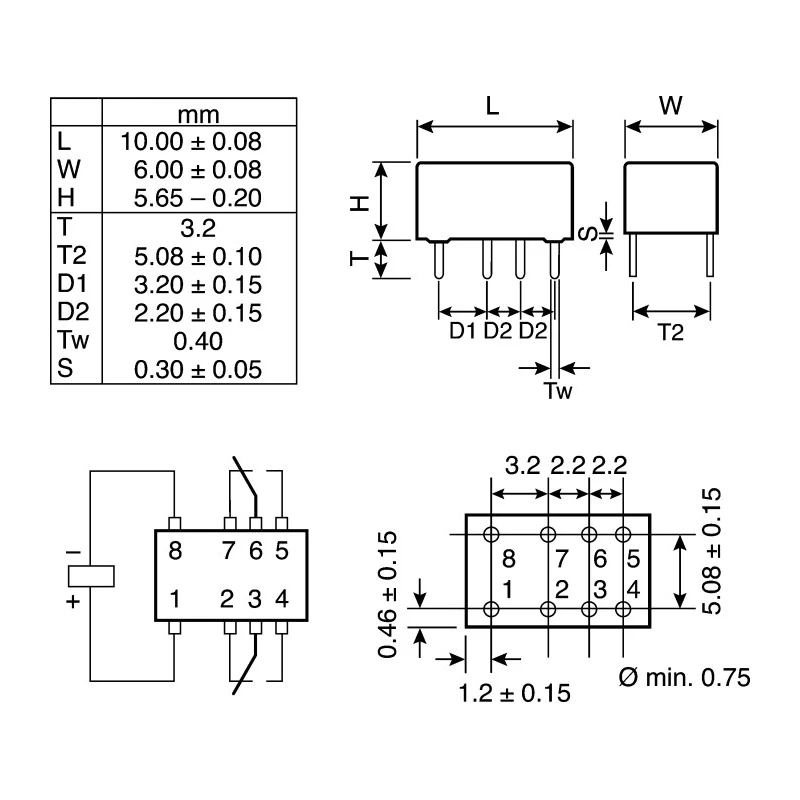

TE Connectivity PCB Mount Signal Relay, 24V DC Coil, 2A Switching Current, DPDT Contact Configuration IM07TS

TE Connectivity IM07TS is a PCB mount signal relay designed for precise signal switching in industrial and telecommunication applications. Featuring a 24V DC coil voltage and a switching current of 2A, this relay offers DPDT (Double Pole Double Throw) contact configuration optimized for compact PCB layouts.

The IM07TS model belongs to the IM series known for slimline, low-profile relays with dimensions of 10 mm length, 6 mm width, and 5.2 mm height. This compact form factor occupies minimal board space of only 60 mm², making it ideal for high-density electronic assemblies.

Designed with gold plated bifurcated contacts, this relay ensures excellent conductivity and durability. The hermetic sealing (RT V) and IP67 rating offer enhanced protection against dust and moisture ingress, extending operational life in challenging environments.

Its coil power consumption of 200 mW supports efficient energy use, complemented by a coil resistance of 2880 Ω. The relay withstands operating temperatures ranging from -40°C to 85°C, providing reliable performance in varied conditions.

Mechanical shock resistance up to 300G functional and 500G survival makes it robust for industrial and automotive environments. High surge capability complying with Telcordia GR 1089, FCC Part 68, and ITU-T K20,21,45 standards ensures resilience against electrical transients.

This product finds applications in telecommunication equipment, optical network terminals, office electronics, test and measurement instruments, medical devices, and automotive systems.

This relay has a slimline, low profile of 10 x 6 x 5.65 mm suitable for minimal PCB space usage. The coil power consumption is low at 200mW, enhancing energy efficiency. It supports switching AC voltage up to 250V AC and DC voltage up to 220V DC.

Gold plated bifurcated contacts ensure high reliability and excellent conductivity. Hermetically sealed and rated IP67, it provides protection against dust and moisture. Designed for high mechanical shock resistance with up to 300G functional and 500G survival capability.

Coil resistance is 2880 Ω, facilitating stable coil operation. The operating temperature range spans from -40°C to 85°C, allowing broad environmental use. Mount type is PCB with solder terminals, simplifying board mounting.

Contact material and quality ensure long service life for telecom and industrial applications. Explore more TE Connectivity Signal Relays and related products at EnvMart for your industrial and electronic design needs.
