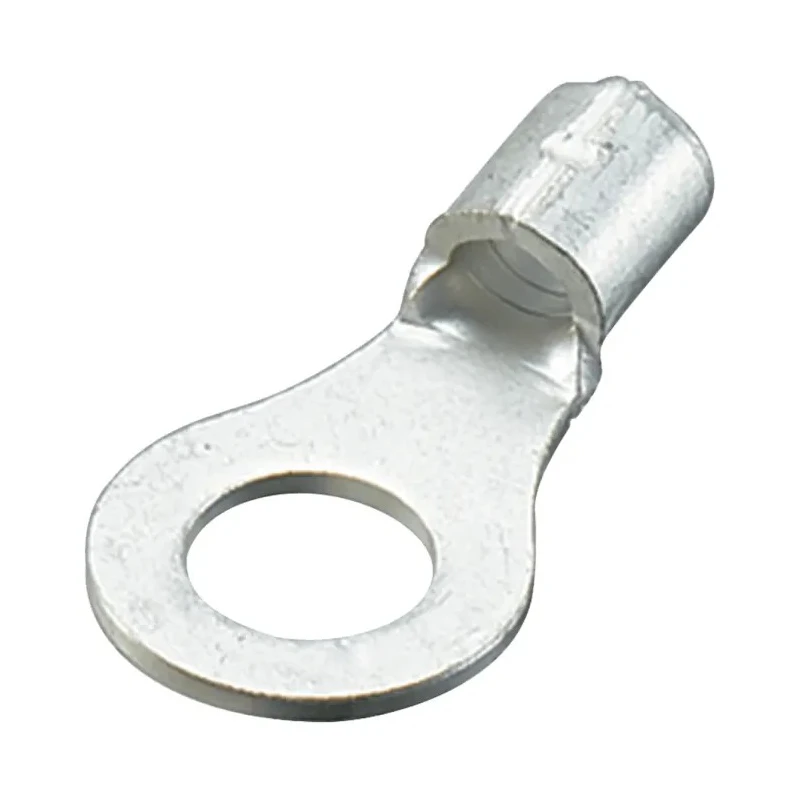

Nichifu Uninsulated Ring Terminal, M5 Stud Size, 16 AWG to 14 AWG Wire Size, Grey HC R2-5

Free Delivery in India | Lowest Global Shipping Charges

Nichifu Uninsulated Ring Terminal, M5 Stud Size, 16 AWG to 14 AWG Wire Size, Grey HC R2-5

Name: Nichifu Uninsulated Ring Terminal, M5 Stud Size, 16 AWG to 14 AWG Wire Size, Grey HC R2-5
Brand: Nichifu
SKU: 121979
Price: 9.67 USD
Availability: InStock



Category Wire Terminals & Splices Brand Nichifu Condition New

Specifications

Country of Origin	Japan
Brand	Nichifu
Colour	Grey
THICKNESS	0.032in
Model	HC R2-5
Insulation	Uninsulated
Overall Length	0.669in
Contact Material	Copper
Series	R2
Standards/Approvals	JIS, UL, CSA
Minimum Wire Size mm²	1mm²
Maximum Wire Size mm²	2.6mm²
Minimum Wire Size AWG	16AWG
Maximum Wire Size AWG	14AWG
Outer Ring Diameter	0.374in
Stud Size	M5

Key Features

The terminal features a grey color and is made of copper contact material.
It has an outer ring diameter of 0.374 inches and an overall length of 0.669 inches.
The thickness of the terminal is 0.032 inches, ensuring durability for industrial and electrical use.
Standards compliance includes JIS, UL, and CSA certifications for safety and quality.
This uninsulated ring terminal suits various wire sizes from 1 mm² to 2.6 mm² effectively.
It is suitable for use with ratchet action and basic plier action crimp tools.
Ideal for wiring and connection tasks in electronics, power distribution, and industrial equipment.

Product Description

Nichifu HC R2-5 uninsulated ring terminal is engineered for reliable electrical connections requiring M5 stud size compatibility. It supports wire sizes ranging from 16 AWG (1 mm²) to 14 AWG (2.6 mm²), making it a versatile component for power and electronics applications.

This terminal features a copper contact material that ensures excellent conductivity and a grey finish for easy identification. With an outer ring diameter of 0.374 inches and an overall length of 0.669 inches, the terminal provides a secure and precise fit.

The terminal thickness of 0.032 inches adds mechanical strength without compromising wire compatibility. It complies with industry standards including JIS, UL, and CSA, guaranteeing safety and performance in demanding environments.

Specifically suited for use with ratchet action and basic plier action crimp tools, the HC R2-5 terminal facilitates easy installation in field or workshop settings. It is commonly employed in electronic assemblies, power distribution panels, automotive wiring, and other industrial machinery connections.

The product's design supports cable cross-sections from 1.0 mm² to 2.5 mm², accommodating both smaller and medium-sized electrical wiring projects. This makes it practical for laboratory, manufacturing, HVAC, automotive, and commercial electrical system applications.

The terminal uses bare crimp construction with round sheet-formed design. It is manufactured in Japan, reflecting high-quality production standards. Suitable for electrical and industrial manufacturing tasks requiring reliable wire terminations.

Maintains dependable electrical conductivity and mechanical stability in various operating conditions. Compatible with commonly used wire sizes 16 AWG and 14 AWG. Offers compliance with relevant industrial safety approvals JIS, UL, and CSA.
