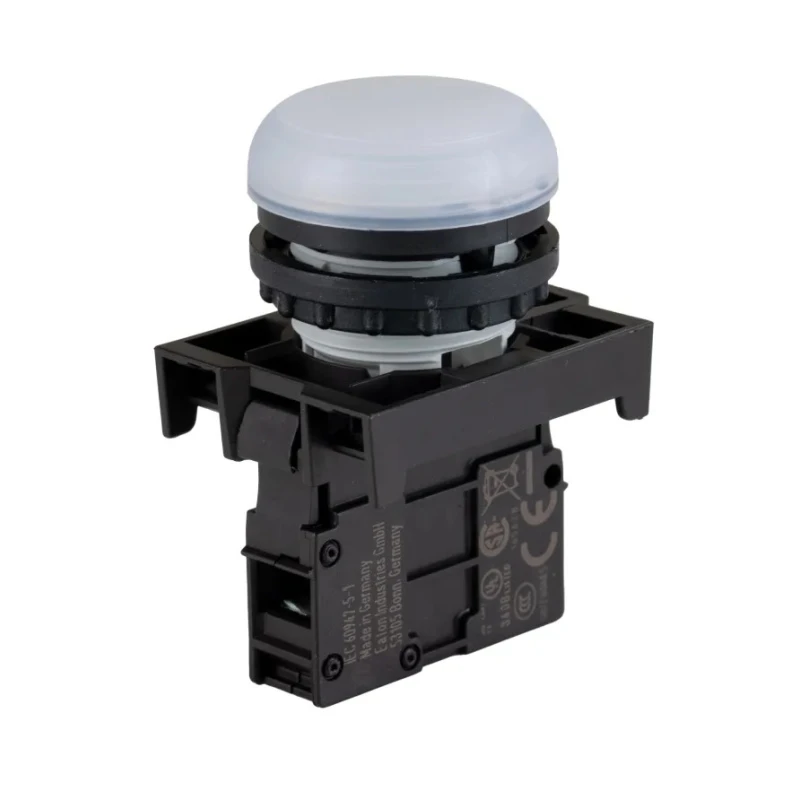

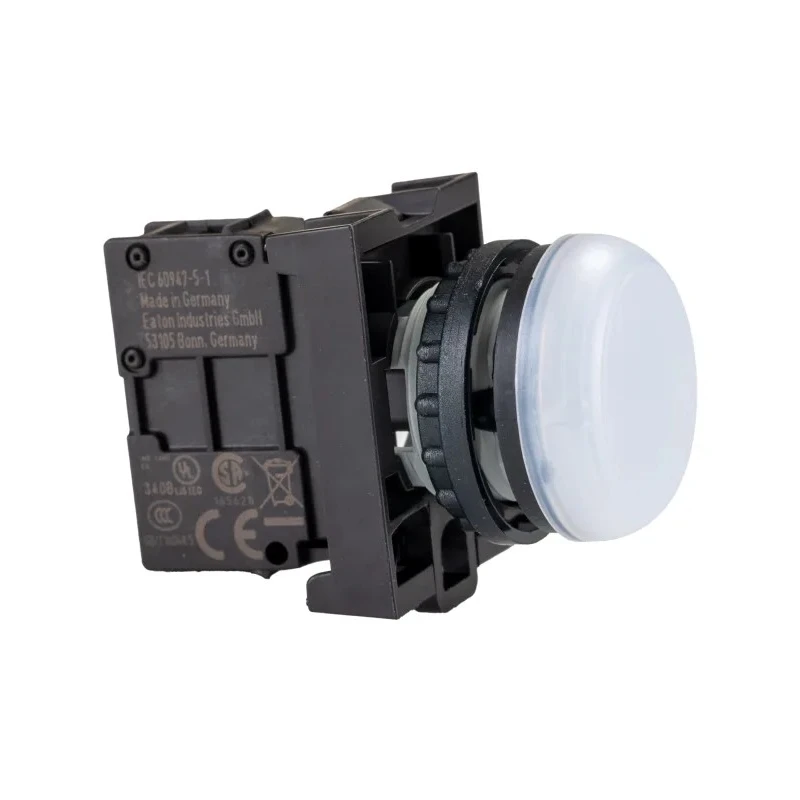

Eaton Flush White LED Pilot Light RMQ Titan M22 22 mm Cutout, 264V AC, IP69K, Round 78639225 M22-L-W+M22-A+M22-LED230-W

Eaton 78639225 M22-L-W+M22-A+M22-LED230-W Flush White LED Pilot Light from the RMQ Titan M22 series is designed for industrial use, providing clear visual equipment status signals. Operating at 264V AC, this pilot light features an LED lamp known for energy efficiency and exceptional durability, lasting up to 100,000 hours at standard ambient temperature.

The device includes a 22 mm panel cutout with flush mount installation, making it ideal for control panels, telecommunications hardware, and automation systems requiring reliable status feedback. The front bezel and body are constructed from robust plastic materials, ensuring lightweight handling and resistance to corrosion and environmental wear.

With an IP69K ingress protection rating, it offers superior sealing against dust and water ingress, including protection against high-pressure, high-temperature water jets, making it suitable for harsh and wet environments. The LED element carries an IP20 rating and is touch-proof, enhancing operator safety.

This pilot light supports a current rating of 15.8mA and withstands impulse voltage of up to 4,000V AC, guaranteeing resilience against electrical surges common in industrial settings. Its screw terminal connections provide secure wiring, simplifying installation and maintenance.

Certified to international safety standards including CE, CSA, and UL, it meets stringent industrial and commercial electrical requirements. The assembly weighs only 21 grams, minimizing added weight on installed equipment. It can reliably operate in temperatures ranging from -25°C to +70°C, suitable for varied factory conditions.

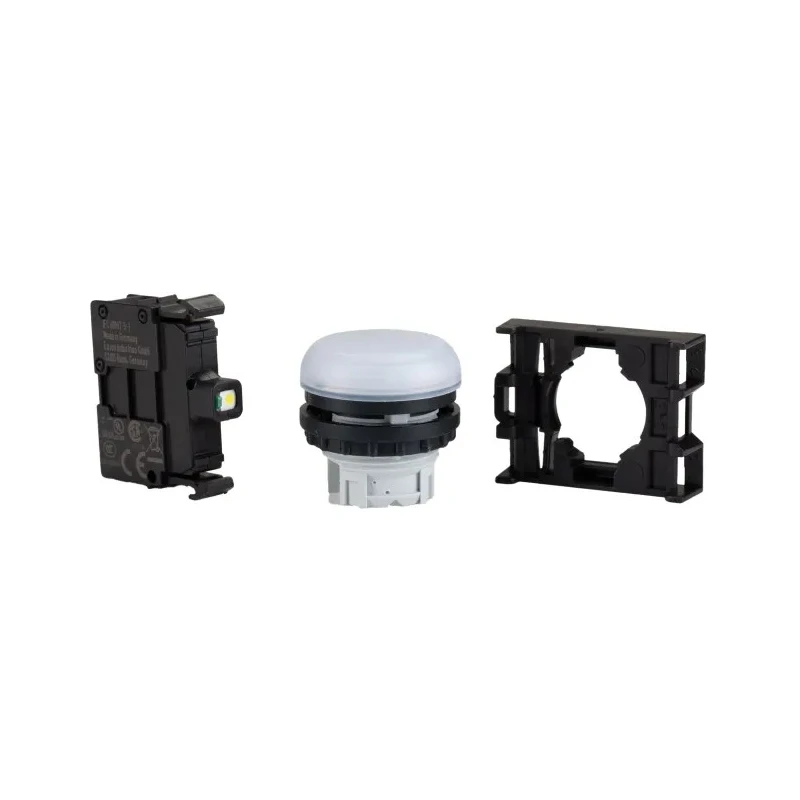

This Eaton pilot light set includes the LED element, a mounting clamp for front fixation, and a lens. Its compact dimensions and reliable performance make it an essential component for effective machinery status monitoring and control.

Discover more quality Pilot Lights and industrial automation products in the Eaton RMQ Titan M22 range through EnvMart’s specialized electrical components section, designed to support your control system needs with dependable, high-performance devices.

High IP69K rating ensures dust-tight protection and resistance to high-pressure water jets. Flush mounting type with a round shape for versatile panel integration. Long-lasting LED lamp type rated for 100,000 hours lifespan at 25°C.

Features a durable plastic body and bezel for lightweight and corrosion-resistant use. Equipped with screw terminals facilitating secure electrical connections. Certified with CE, CSA, and UL approvals ensuring industrial safety standards.

Suitable for harsh environments with operation temperature range from -25°C to +70°C. Compact 21 g assembly weight prevents additional load on the system.
