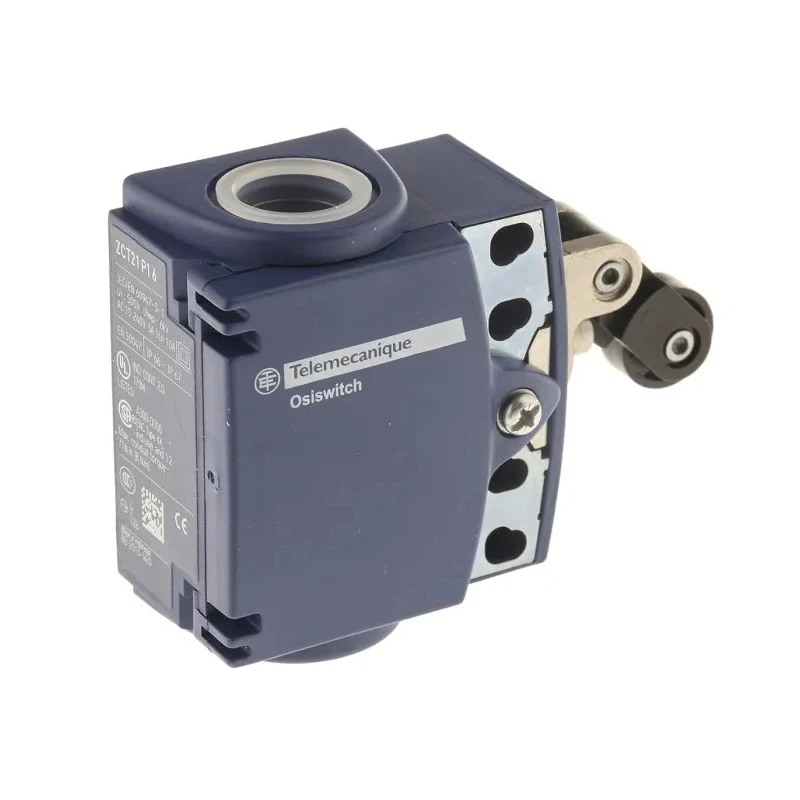

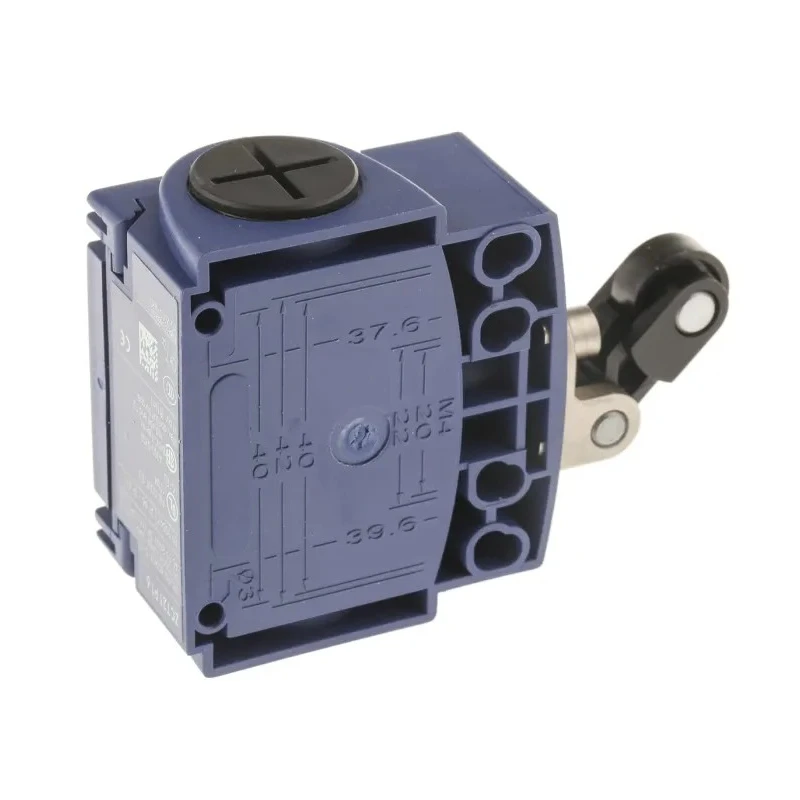

Telemecanique Sensors OsiSense XC Series Roller Plunger Limit Switch, 1 NO/1 NC, IP66 IP67, Plastic Housing XCKT2121P16
Specifications
| Country of Origin | India |
|---|---|
| Brand | Telemecanique Sensors |
| Length | 51mm |
| Model | XCKT2121P16 |
| Depth | 30mm |
| IP Rating | IP66, IP67 |
| Width | 58mm |
| Housing Material | Plastic |
| Series | OsiSense XC |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 1 NO/1 NC |
| Actuator Type | Roller Plunger |
| Contact Type | Snap Action |
| Minimum Operating Temperature | -25°C |
| Switching Current | 3A |
| Terminal type | Screw Clamp |
| Standards/Approvals | CSA, CCC, REACH, RoHS, UL |
| Operating Force | 18N |
| Mechanical Life | 15000000Cycles |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 240V ac |
| Conduit Entry | M16 |
Key Features
- Operates on 240V AC voltage for diverse industrial applications.
- Features snap action contact type for precise switching operations.
- Equipped with screw clamp terminal type for secure electrical connections.
- Designed for harsh environments with IP66, IP67 ingress protection ratings.
- Roller plunger actuator ensures dependable actuation force of 18N.
- Mechanical life rated at 15 million cycles for durability and extended use.
- Operates within -25°C to 70°C temperature range for versatile environments.
- Suitable for control systems in material handling, escalators, and assembly equipment.
Product Description
Telemecanique Sensors XCKT2121P16 is a high-quality OsiSense XC Series limit switch featuring a roller plunger actuator and 1 normally open (NO) plus 1 normally closed (NC) contact configuration. Designed for industrial automation and control systems, it operates at 240V AC and boasts a plastic housing offering IP66 and IP67 ingress protection ratings against dust and water ingress.
This limit switch is engineered for reliable operation across a temperature range from -25°C to 70°C, making it well suited for demanding environments and heavy industrial use such as material handling machinery, escalators, and electrical assembly equipment.
The snap action contact type allows precise and quick switching, supported by screw clamp terminals ensuring stable wiring connections. The device features a mechanical life expectancy of 15 million cycles, reflecting its durability under continuous use.
Compactly sized (58mm wide, 51mm long, and 30mm deep), it can be easily installed in various control configurations. The operating force required for actuation is 18N, offering a balance between sensitivity and robustness.
Operates at 240V AC with 1 NO and 1 NC snap action contacts. Plastic housing rated IP66 and IP67 for high ingress protection. Robust mechanical life of 15 million cycles supports heavy-duty use. Temperature tolerance from -25°C to 70°C suits various industrial conditions.
Screw clamp terminals provide secure electrical connection. Compact form factor enables flexible installation. Conforms to CSA, CCC, REACH, RoHS, and UL safety standards.
This limit switch is an essential component in automated manufacturing, material handling, and other industrial control systems requiring reliable position sensing and robust switching capability. Its features and certifications ensure compliance with global safety and environmental regulations.
Explore more Limit Switches and industrial automation components in EnvMart’s extensive electronics and electricals catalog to support your control system design and maintenance needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at 240V AC, making it suitable for various industrial applications.
The mechanical life is rated at 15 million cycles, indicating its durability under continuous use.
It has IP66 and IP67 ingress protection ratings, ensuring resistance to dust and water ingress.
It operates within a temperature range of -25°C to 70°C, suitable for various industrial conditions.
It features a roller plunger actuator, which provides dependable actuation force.
It has a contact configuration of 1 normally open (NO) and 1 normally closed (NC) contact.
It is equipped with screw clamp terminals, ensuring secure electrical connections.
The required actuation force is 18N, balancing sensitivity and robustness.
The dimensions are 58mm wide, 51mm long, and 30mm deep, allowing for flexible installation.
It conforms to CSA, CCC, REACH, RoHS, and UL safety standards, ensuring compliance with global regulations.
The switching current is rated at 3A, suitable for various electrical applications.
It is suitable for control systems in material handling, escalators, and assembly equipment.
