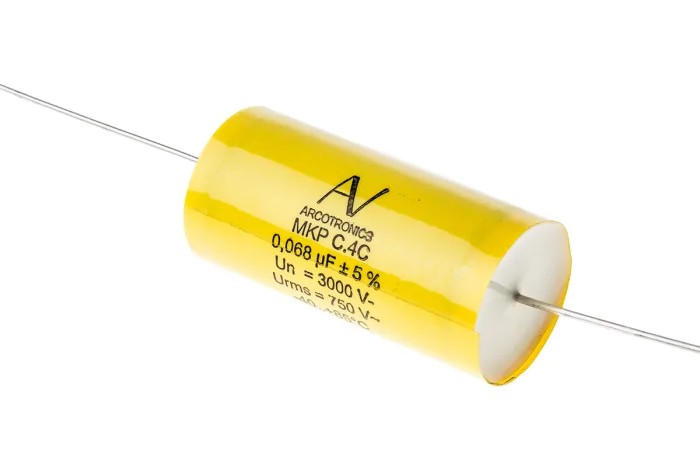

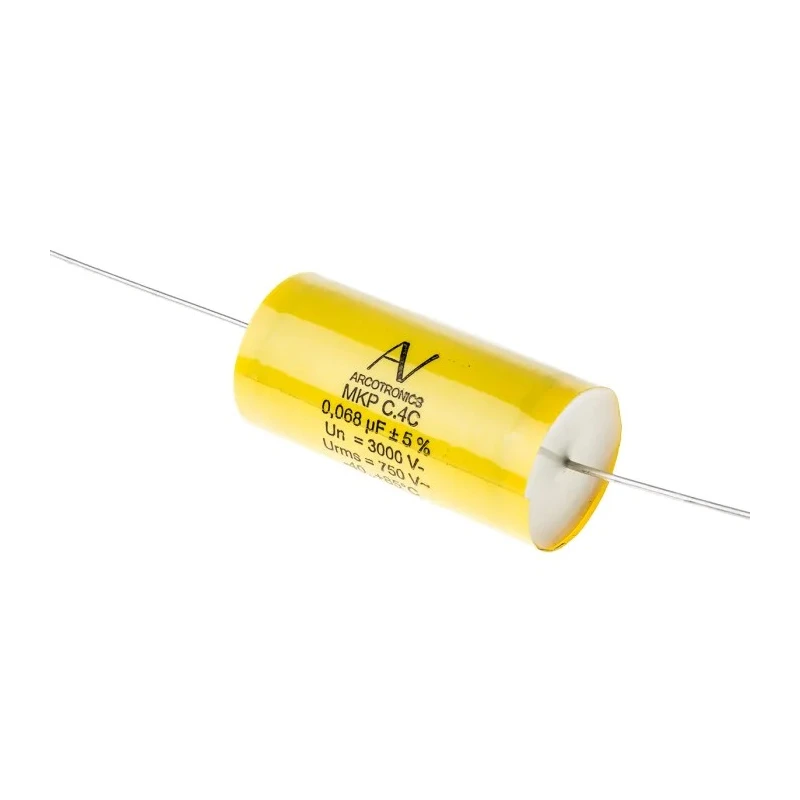

KEMET C4C Polypropylene Capacitor, ±5 % Tolerance, 68 nF, Rated 3 kV DC, 750 V AC, Through Hole Mount C4CAYUC2680AA1J

KEMET C4CAYUC2680AA1J is a polypropylene film capacitor featuring a capacitance of 68 nF with a tolerance of ±5 %. It is rated for a DC voltage of 3 kV and an AC voltage of 750 V, designed for through-hole mounting.

The capacitor uses metallized polypropylene film, offering self-healing properties, high ripple current tolerance, and low losses. It provides high contract reliability making it ideal for high frequency industrial electronic applications such as power semiconductors, electronic ballasts, and motor control circuits.

Featuring a wire terminal type with 6 mm lead length and 1 mm lead diameter, this component aligns with EN 61071, IEC 61071, and VDE 0560 standards. The plastic package with dimensions 44 mm length and 22.5 mm width and height suits compact PCB assemblies.

The capacitor’s dissipation factor is exceptionally low at 0.0005%, and it withstands operating temperatures from -40°C to 85°C. Its equivalent series resistance (ESR) is 18 mΩ ensuring efficient current flow and minimal heat generation.

Applications include voltage peak suppression (snubber circuits), blocking, clamping, and coupling or decoupling functions in industrial, electronic manufacturing, and HVAC control systems. This reliable component supports maintaining stable voltage levels and protecting sensitive electronics.

Constructed with polypropylene film ensuring low losses and high reliability. Suitable for high frequency applications including snubber circuits and electronic ballasts. Rated maximum operating temperature of 85°C for durable performance.

Wire terminal type with 6 mm lead length and two pins for through-hole mounting. Meets standards EN 61071, IEC 61071, and VDE 0560 for quality and safety compliance. Plastic package case with dimensions 44mm length, 22.5mm width and height for compact board design.

Dissipation factor is 0.0005% ensuring minimal energy loss during operation. Ideal for power semiconductor circuits to suppress voltage peaks and provide coupling or decoupling.

This KEMET polypropylene film capacitor is suitable for use in electronics manufacturing, industrial automation, power electronics, and various high frequency signal conditioning applications. It offers a durable, quality solution for capacitor requirements in demanding environments.
