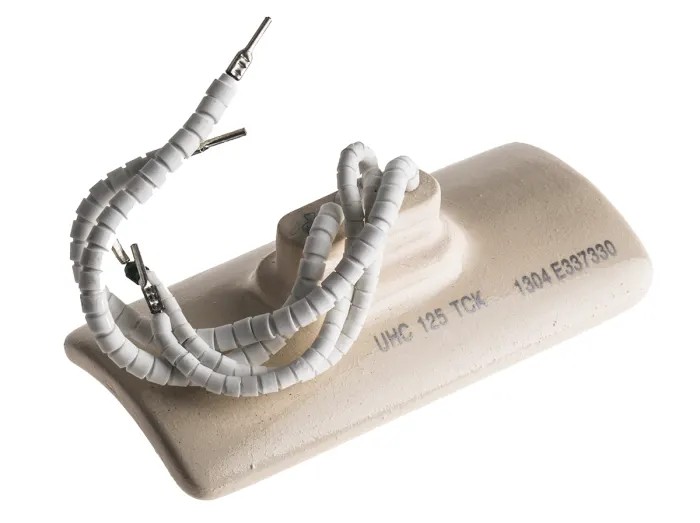

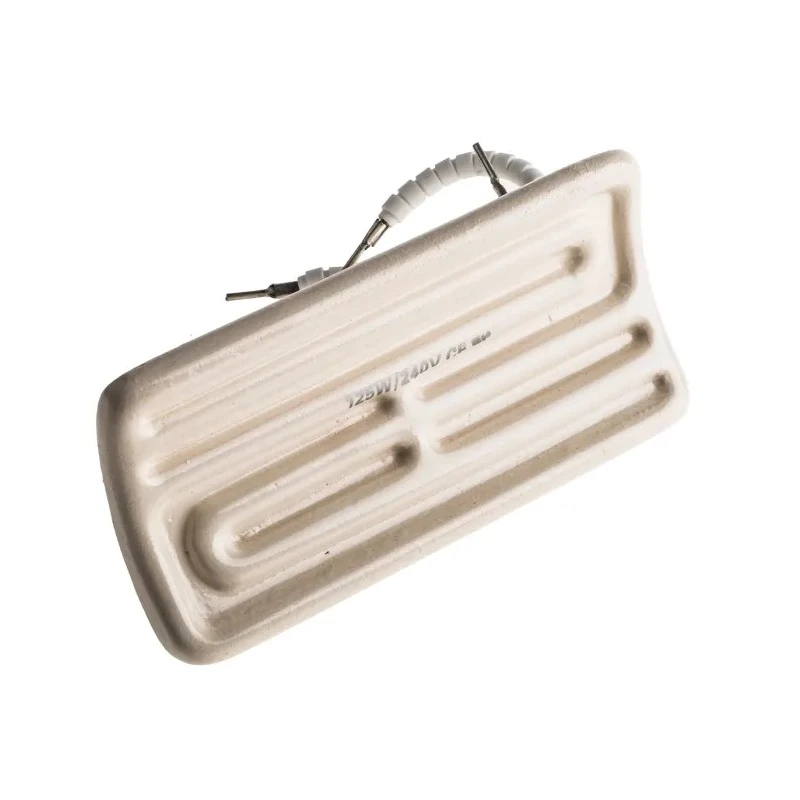

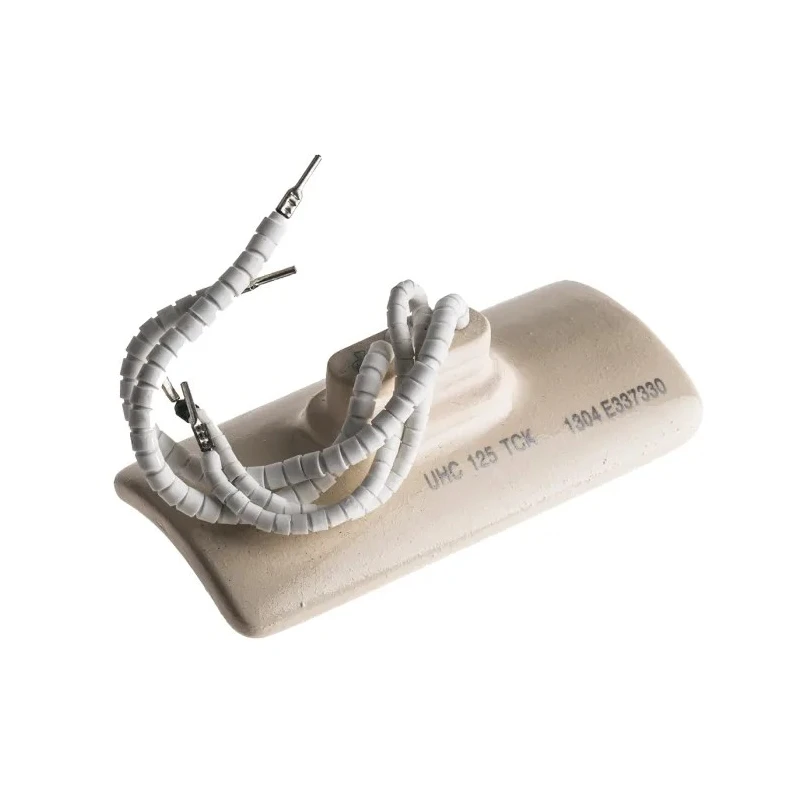

RS PRO Ceramic Heating Element 245mm Length, 60mm Width, 125W Power, 230V AC 376-2739

RS PRO 376-2739 Ceramic Heating Element offers reliable and efficient heating performance in industrial, manufacturing, and process control environments. Operating at 230V AC with a power rating of 125W, this element uses a curved ceramic design that converts up to 96% of input power into heat through longwave infrared radiation.

The heating wire is embedded inside a concave glazed ceramic element measuring 245mm in length and 60mm in width, enabling focused and efficient heating in targeted applications such as plastic welding curing, paint drying, and other thermal processes.

The glazed ceramic surface enhances corrosion resistance and significantly increases the product's working life, ranging from 5,000 to 10,000 hours, depending on usage conditions. With an impressive maximum temperature capability of +700°C, this element supports robust industrial heating tasks.

The RS PRO Ceramic Heating Element complies with the RoHS Directive, limiting restricted hazardous substances, thus suitable for environmentally conscious applications. For optimal performance, temperature sensing and control are recommended alongside usage.

Curved ceramic heating element designed for longwave infrared radiation. Embedded heating wire in a concave ceramic element delivers precise heat focus. Measured overall dimensions of 245mm length, 60mm width, and 31mm thickness.

Power rating of 125W at 230V AC supply voltage. Glazed ceramic protects against corrosion and extends product durability. Maximum operating temperature capability of +700°C. Working life estimated between 5,000 and 10,000 hours.

Compliant with RoHS standards for low hazardous content. Ideal for curing plastic welding, paint coats, heating, and drying processes.

This heating element is designed for demanding industrial, laboratory, manufacturing, and process control applications. It is essential to use proper electrical, thermal, and mechanical barriers to ensure safe operation as per industrial safety standards.
