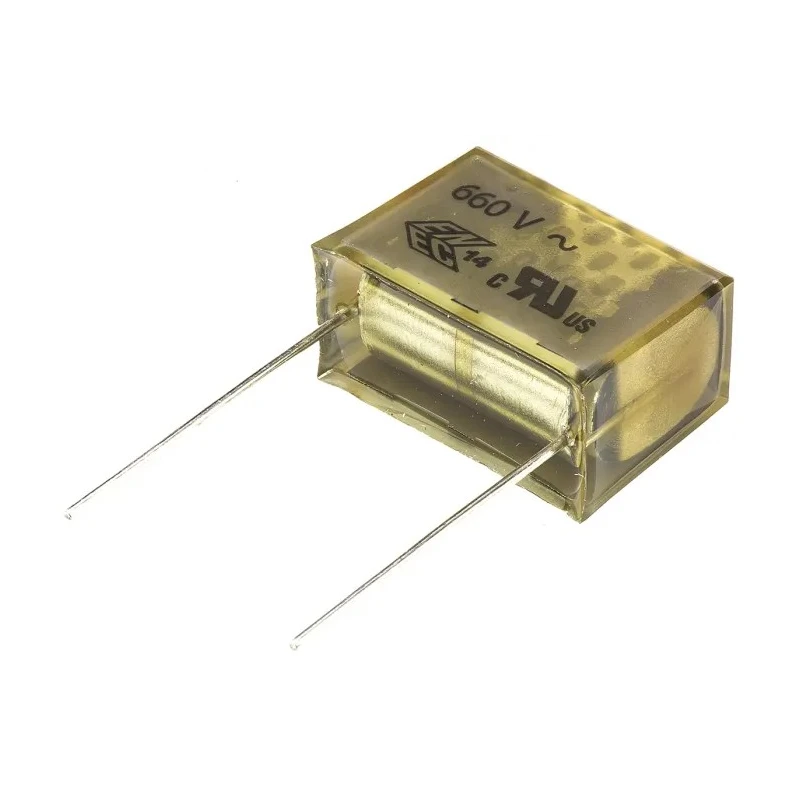

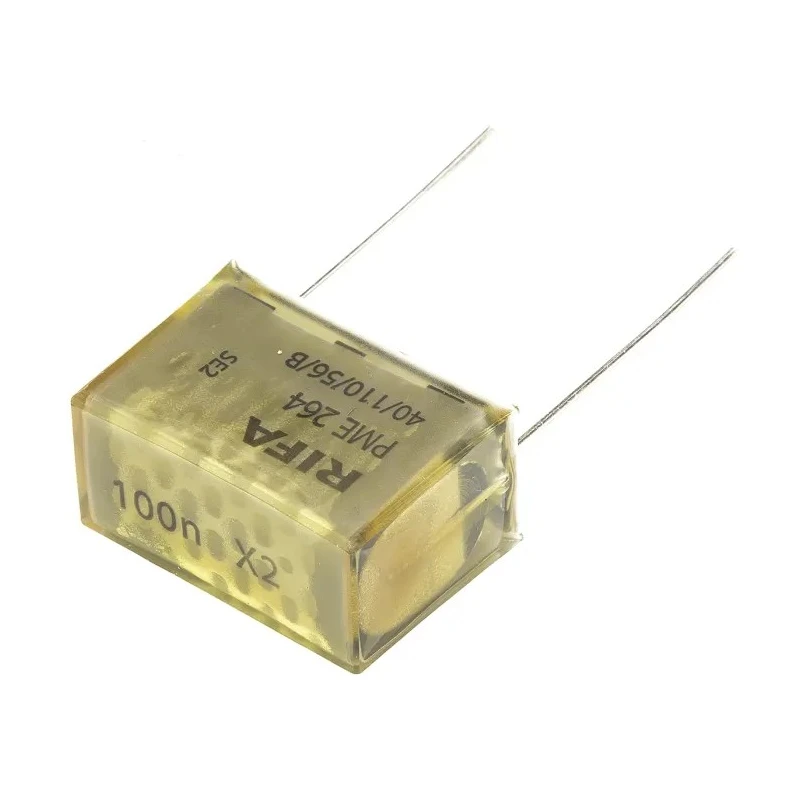

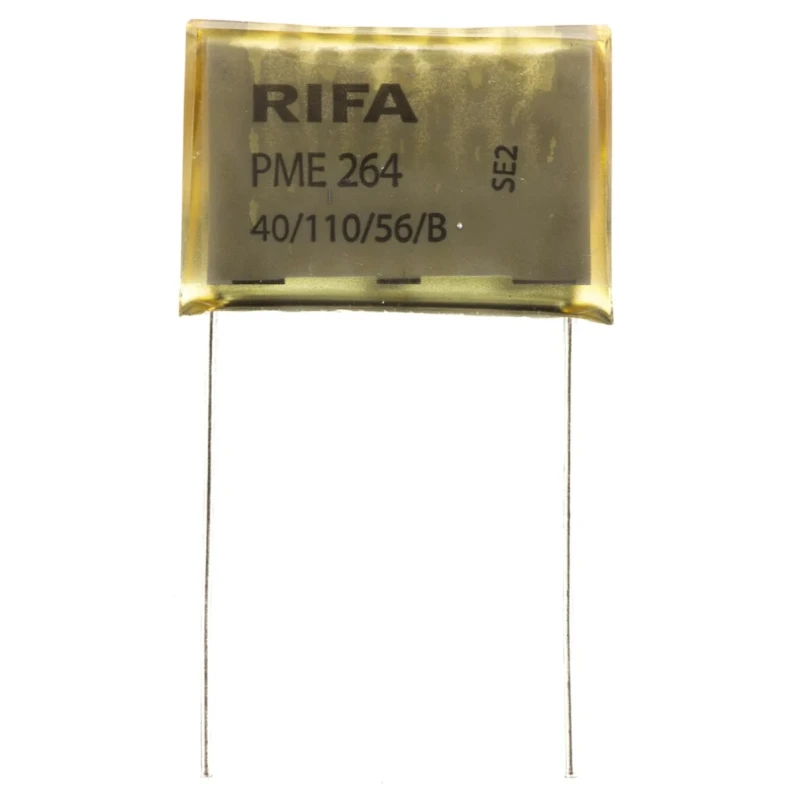

KEMET PME261 Paper Capacitor X2 660V AC 1.5kV DC Through Hole Mount

KEMET PME261 paper capacitor model PME264NE6100MR30 is designed for both high AC and DC voltage applications such as commutator capacitors in converters, ignition circuits, and high voltage DC capacitors in television sets. The capacitor features a multi-layer metallised paper construction delivering excellent stability and reliability, particularly suited for continuous operation in industrial electronics.

This through-hole mount capacitor offers a capacitance of 100 nanofarads with a rated AC voltage of 660 volts and a rated DC voltage of 1.5 kilovolts, making it ideal for suppression class X2 applications directly connected across mains supply while meeting stringent safety requirements with UL94V-0 flame retardant encapsulation.

With a lead pitch of 25.4mm and pin diameter of 1mm, it is compatible with standard through-hole PCB designs. Physical dimensions measure approximately 30.5mm length, 22mm height, and 15.3mm depth, facilitating compact installations in various industrial, consumer electronics, and power supply applications.

This capacitor complies with international IEC, EN, CAN, UL, and CSA standards and carries approvals such as EN132400, SEMKO, NEMKO, DEMKO, FI, VDE, SEV, OVE, IMQ, UL, and CSA, signifying high global acceptance. Manufactured in Finland, it upholds premium quality standards demanded in critical electronic components.

Note that while designed for connection across mains supply, this capacitor should not be installed in positions where failure could expose personnel to electric shock. Its robust construction supports applications in industrial electronics, power electronics, consumer electronics, and HVAC control systems among others.

Capacitance of 100nF suitable for diverse electronic circuits. Multi-layer metallised paper construction ensures high stability and reliability. Encapsulated with UL94V-0 flame retardant casing for safe operation. Rated maximum operating temperature of 85°C for industrial performance.

Complies with IEC, EN, CAN, UL, and CSA standards for broad compliance. Lead pitch of 25.4mm and pin diameter of 1mm for easy through-hole PCB mounting. Dimensions approx. 30.5mm length, 22mm height, 15.3mm depth for compact installation.
