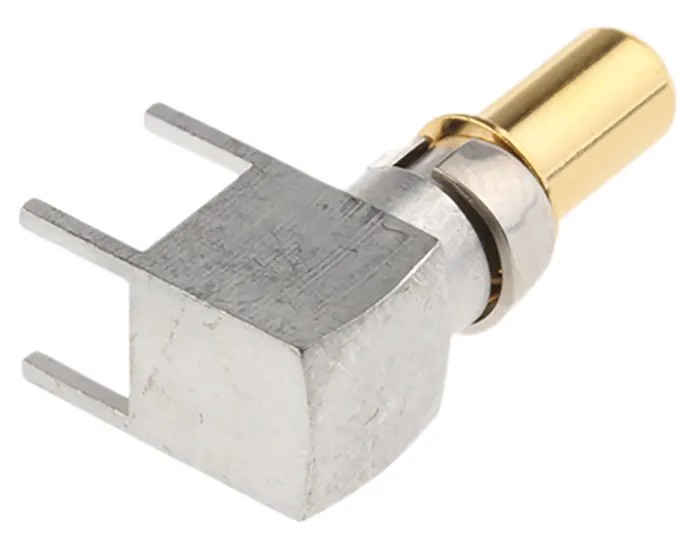

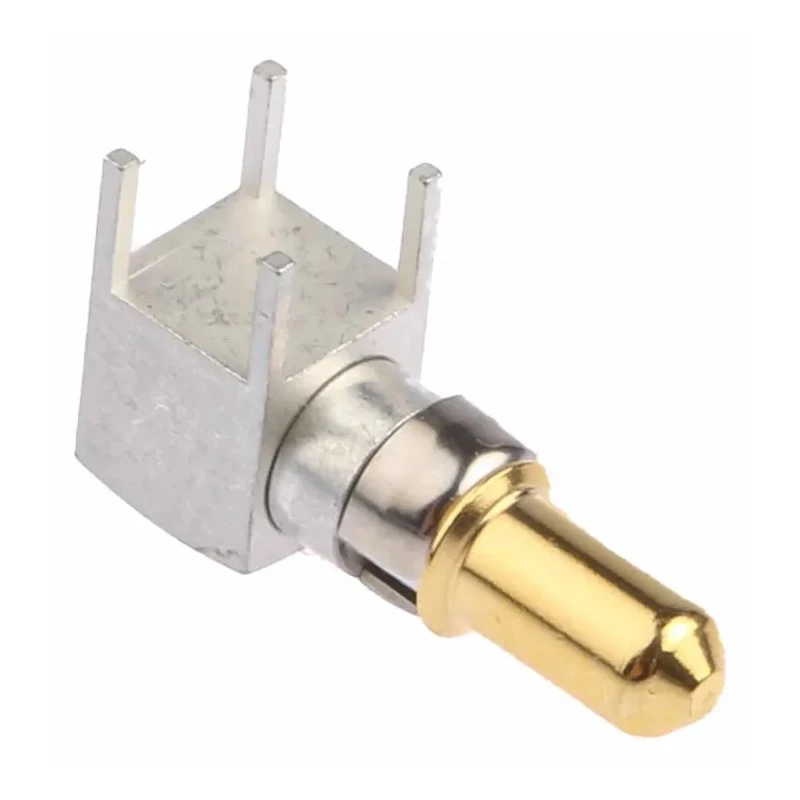

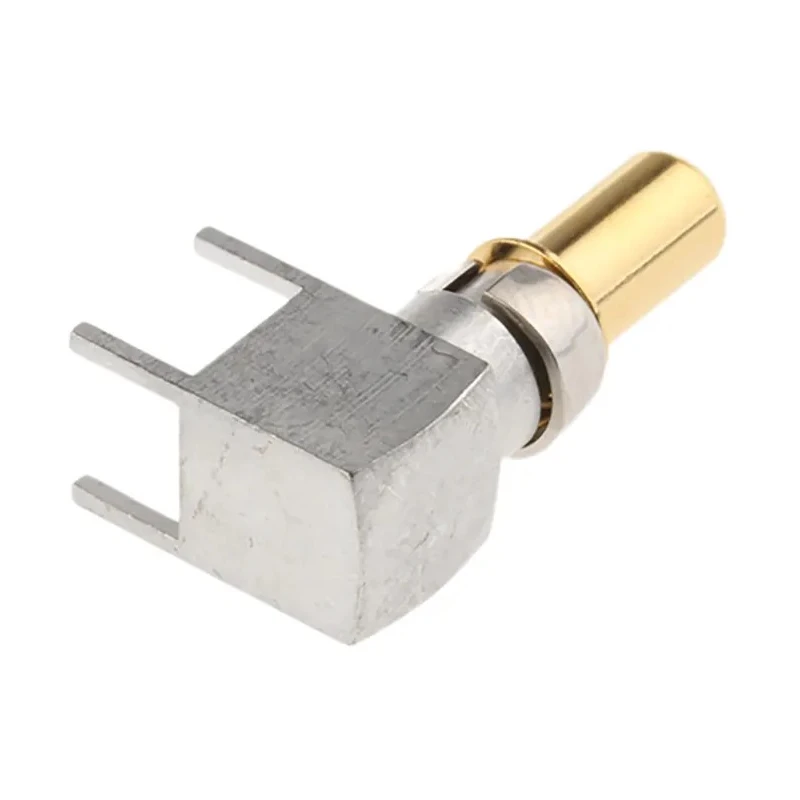

RS PRO Right Angle DIN41612 Type M Male Gold Plated Copper Alloy Backplane Connector Contact 309-4042
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Orientation | Right Angle |
| Current | 40A |
| Model | 309-4042 |
| Gender | Male |
| Contact Material | Copper Alloy |
| Series | RS PRO |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Cable Type | RG178B/U, RG174A/U |
| Minimum Operating Temperature | -55°C |
| For Use With | DIN41612 Type M Male Connector |
| Contact Plating | Gold |
| Maximum Contact Resistance | 1mΩ |
Key Features
- Suitable for use with DIN41612 type M male connectors.
- Right angle orientation for 90° adaptor compatibility.
- Gold plating ensures corrosion resistance and excellent conductivity.
- Supports a current rating up to 40 amperes.
- Operates reliably in temperature ranges from -55°C to 125°C.
- Through-hole mounting enables solder or crimp termination on coaxial cables.
- Construction using copper alloy enhances electrical performance.
- Maximum contact resistance of 1 milliohm ensures low signal loss.
Product Description
RS PRO 309-4042 is a high-quality right-angle Backplane Connector Contact designed for DIN41612 type M male connectors. It features a gold-plated copper alloy contact that provides excellent conductivity and corrosion resistance, ensuring stable and efficient electrical connections.
The right-angle design makes the contact especially suitable for 90° adaptors, allowing connections for plug-in cards to backplane wiring or linking parallel printed circuit boards (PCBs). The through-hole termination supports soldering or crimping to coaxial cables such as RG178B/U and RG174A/U types.
Operating across a wide temperature range of -55°C to +125°C and supporting a current up to 40 amperes, this backplane connector is engineered to perform reliably in demanding industrial environments including data communications, telecommunications, measurement, and control systems.
The maximum contact resistance of 1 milliohm ensures minimal signal degradation, while compliance with RoHS and ANSI/ESD S20.20:2014, BS EN 61340-5-1:2007 electrostatic control standards guarantees environmental and operational safety.
Suitable for use with DIN41612 type M male connectors. Right angle orientation for 90° adaptors and PCB connections. Gold plating for corrosion resistance and conductivity. Supports current of up to 40 amperes. Operates from -55°C to 125°C.
Through-hole solder termination for secure mounting. Copper alloy contact material for effective conduction. Low maximum contact resistance of 1 milliohm. RoHS and electrostatic control standards compliant. Ideal for data, telecom, measurement, and control applications.
Discover more from the RS PRO range of high-performance electronic components on EnvMart, ideal for industrial and laboratory uses.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of up to 40 amperes.
It operates reliably in temperature ranges from -55°C to 125°C.
The contact is made from a copper alloy and features gold plating for corrosion resistance and excellent conductivity.
This model supports through-hole solder termination, allowing for secure mounting.
It is compatible with coaxial cables such as RG178B/U and RG174A/U.
The maximum contact resistance is 1 milliohm, ensuring low signal loss.
Yes, it complies with RoHS and ANSI/ESD S20.20:2014, BS EN 61340-5-1:2007 electrostatic control standards.
It features a right-angle orientation, making it suitable for 90° adaptors.
This connector is a male type, designed for use with DIN41612 type M male connectors.
It is suitable for applications in data communications, telecommunications, measurement, and control systems.
The model number is 309-4042.
The country of origin for this connector is India.
