Switchcraft Industrial Circular Connector 6 Contacts Cable Mount Socket Male IP68 IP69K EN3 Series EN3C6MX
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 250, 600V |
| Brand | Switchcraft |
| Orientation | Straight |
| Current | 7.5A |
| Model | EN3C6MX |
| IP Rating | IP68, IP69K |
| Mount Type | Cable, Cable |
| Housing Material | Thermoplastic |
| Contact Material | Copper |
| Series | EN3 |
| Termination Type | Solder |
| Maximum Operating Temperature | 65°C |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Plug/Socket | Socket |
Key Features
- Provides premium construction with gold-plated copper contacts for reliable conductivity.
- Rated for 7.5A current and voltages of 250V and 600V.
- Features a thermoplastic housing and solder termination for durable use.
- Designed with a 1/4 turn bayonet mating for secure connection and polarity key to prevent misalignment.
- Suitable for harsh environments with IP68 and IP69K weather-tight protection.
- Mates with in-line and panel connectors but not panel to in-line connectors.
- Supports operating temperatures from -40°C to 65°C.
- Ideal for industrial, marine, medical instrumentation, process control, and transportation applications.
Product Description
Switchcraft EN3C6MX industrial circular connector is a cable mount, 6-contact male socket designed for high-reliability electrical connections in demanding environments. It features premium gold over nickel plating on copper contacts and a thermoplastic housing, ensuring excellent conductivity and robustness. The connector supports currents up to 7.5 amperes and voltages of 250V and 600V, catering to a wide range of industrial power and signal applications.

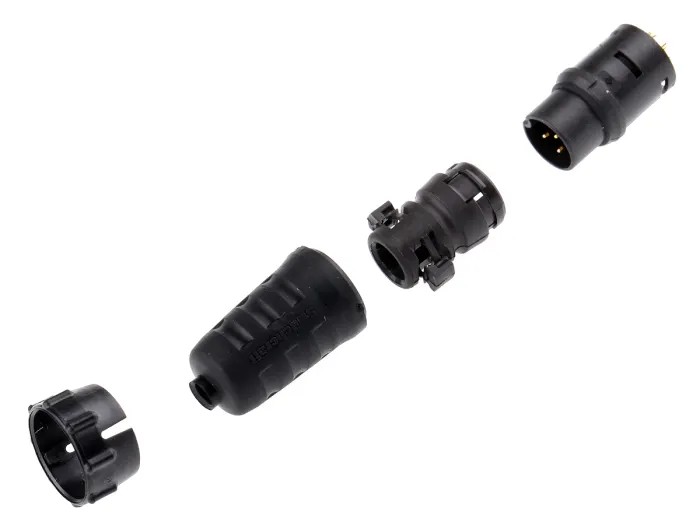

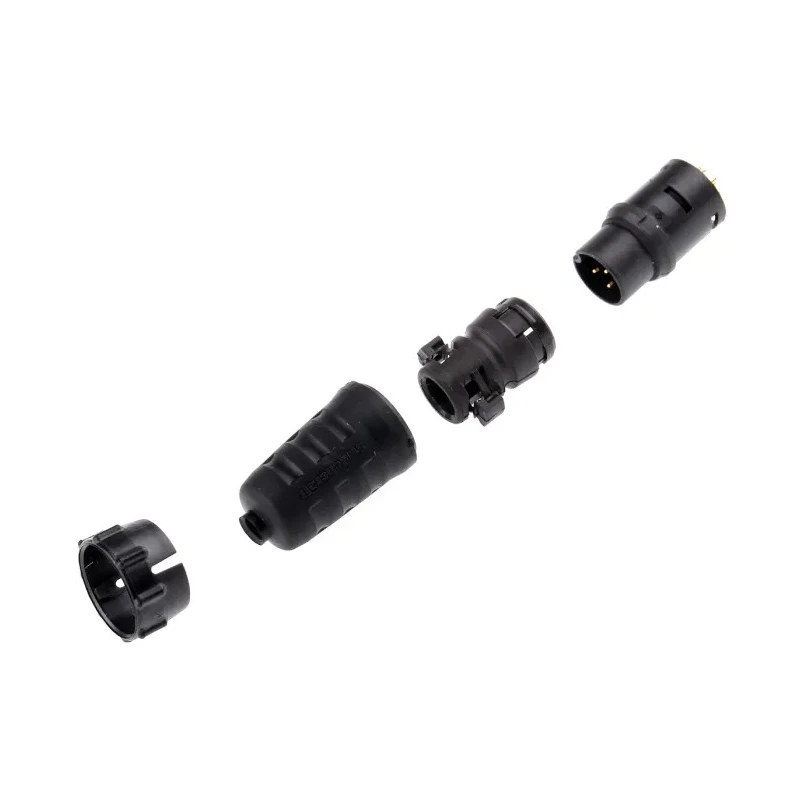

The EN3 series offers superior leakage protection via an integral O-ring and gasket, providing an IP68 and IP69K rating. This makes the connector ideal for harsh conditions encountered in process control, marine, medical instrumentation, and transportation sectors. The 1/4 turn bayonet mating mechanism with a polarizing keyway prevents misalignment and accidental disconnection, enhancing connection reliability. Cable mounting assemblies include a snap-in strain relief with thermoplastic rubber boots supporting cables up to 6.7 mm diameter.
Multiple termination options such as soldering provide flexibility for diverse installation requirements. Optional protective caps (sold separately) further prolong connector life by protecting unused ports. This connector is manufactured in the United States and is suited for industrial and commercial use where resilience and dependability are critical.
Premium gold-plated copper contacts ensure excellent conductivity. Thermoplastic housing provides durability and resistance in rugged environments. Bayonet mating type with polarizing key prevents misalignment. IP68 and IP69K rated for superior environmental sealing.
Operates reliably between -40°C to 65°C temperatures. Solder termination provides secure and reliable cable connections. Snap-in strain relief and rubber boots support cables up to 6.7 mm diameter. Ideal for industrial, marine, medical instrumentation, process control, and transportation applications.
Explore more industrial Circular Connectors from Switchcraft at EnvMart for your specialized electrical connectivity requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 7.5A.
It can handle voltages of 250V and 600V.
This unit uses solder termination for secure cable connections.
The connector has an IP68 and IP69K rating, providing superior environmental sealing.
It features a thermoplastic housing and gold over nickel plating on copper contacts.
It operates reliably between -40°C and 65°C.
The connector is designed with a 1/4 turn bayonet mating mechanism that includes a polarizing keyway to prevent misalignment.
This model is a standard size, 6-contact male socket designed for cable mounting.
It is ideal for industrial, marine, medical instrumentation, process control, and transportation applications.
Optional protective caps are available separately to prolong the connector's life by protecting unused ports.
This connector is manufactured in the United States.
It supports cables up to 6.7 mm in diameter with a snap-in strain relief.
