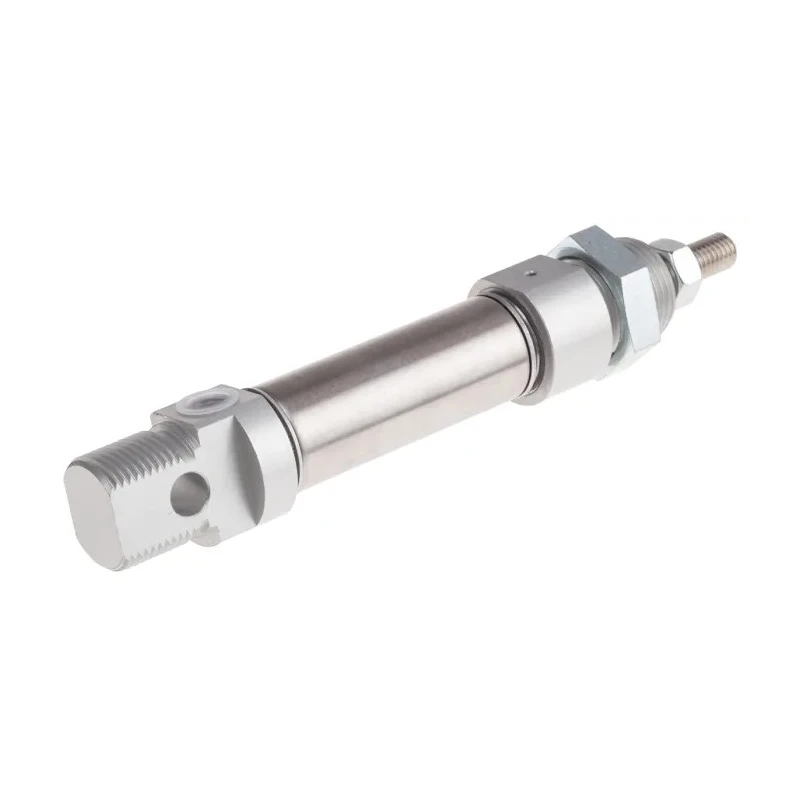

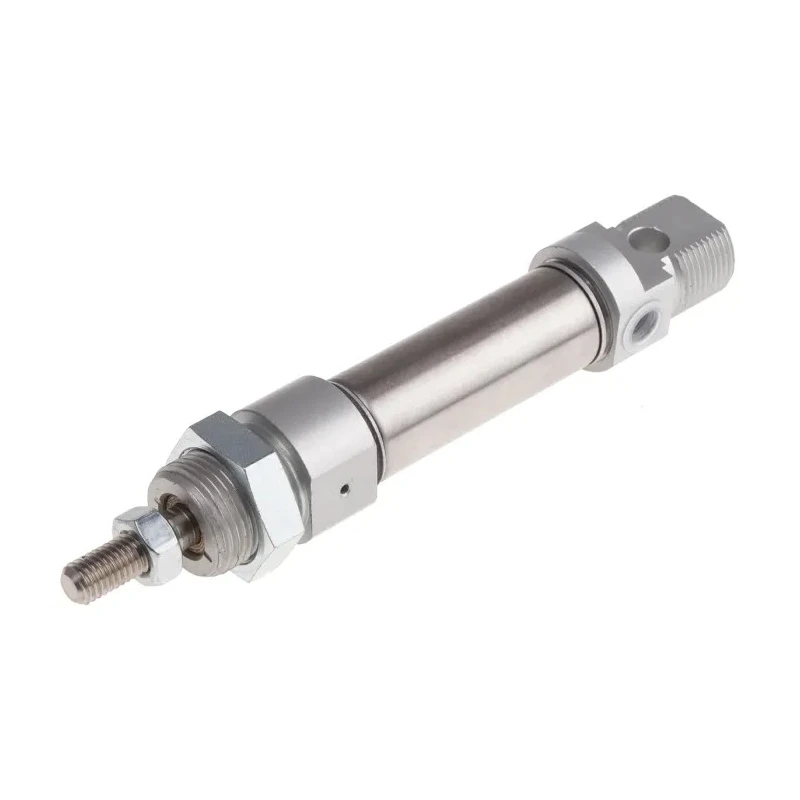

RS PRO Pneumatic Piston Rod Cylinder 20mm Bore 25mm Stroke ISO 6432 Series Single Acting 304-3319

RS PRO 304-3319 Pneumatic Piston Rod Cylinder is a high-performance component engineered to meet ISO 6432 standards. This single acting cylinder features a compact 20mm bore diameter and 25mm stroke length within the ISO 6432 series, optimized for pneumatic applications in industrial, laboratory, manufacturing, and HVAC settings.

The cylinder body is crafted from AISI 304 stainless steel providing excellent corrosion resistance and mechanical strength, paired with an AISI 303 stainless steel piston rod. The piston rod is designed with a female gender and a metric M22 x 1.5 thread standard for versatile mounting options. It features foot mounting and includes buffer type cushioning to reduce impact stresses and extend service life.

Operating effectively between -20°C and +80°C ambient temperature and capable of withstanding maximum pressures up to 10 bar, this cylinder can be used with filtered, lubricated or non-lubricated compressed air. Pre-lubricated NBR seals and sintered bronze nose bearings reduce maintenance and enhance reliability. Compliance with RoHS standards confirms its environmental safety.

The product is supplied complete with a nose nut and piston rod nut, facilitating immediate installation. Its robustness and precision suitability make it ideal for fluid power applications in industrial machinery, automation systems, and pneumatic actuator assemblies.

Constructed with corrosion-resistant AISI 304 stainless steel body and AISI 303 piston rod. Single acting design with ISO 6432 series standardization. Foot mount with buffer cushioning to minimize wear and noise. Operational temperature range from -20°C to +80°C.

Maximum operating pressure of 10 bar with a pressure range from 1 to 10 bar. Compatible with compressed air, filtered, lubricated or non-lubricated. Metric female piston rod thread M22 x 1.5. Pre-lubricated seals and sintered bronze nose bearing ensure durability and smooth operation.

RoHS compliant for environmental safety. Includes necessary hardware: nose nut and piston rod nut.

Ideal for applications in pneumatic actuation, automation lines, and mechanical tooling within various industrial sectors. Explore the extensive range of Pneumatic Piston Rod Cylinders at EnvMart for reliable fluid power solutions.
