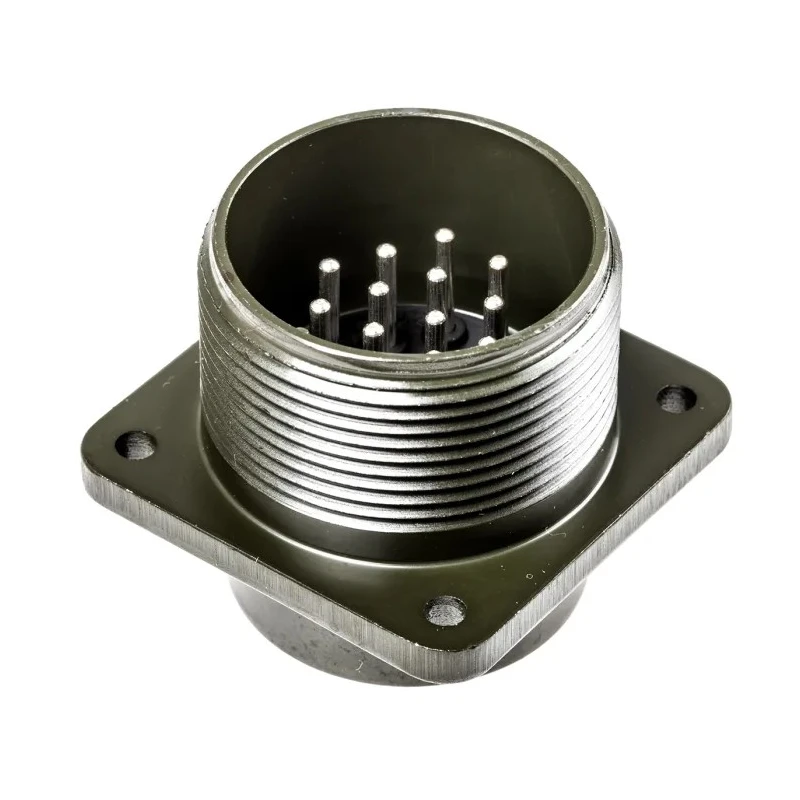

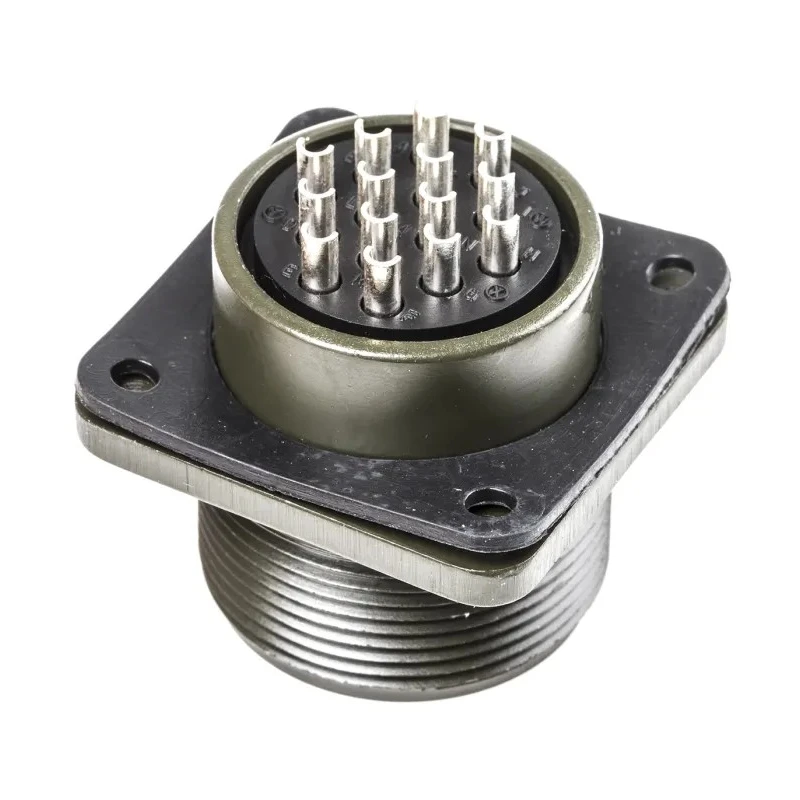

Amphenol Industrial MIL Spec Circular Connector 14 Way Box Mount Copper Alloy Straight Female Male 500, 700V MS3102A
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Voltage | 500, 700V ac |
| Brand | Amphenol Industrial |
| Colour | Black |
| Orientation | Straight |
| Model | MS3102A |
| Mount Type | Box Mount |
| Housing Material | Aluminium Alloy |
| Contact Material | Copper Alloy |
| Series | MS3102A |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Silver |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Connector Gender | Female |
| Shell Size | 20 |
| Military Standard | MIL-DTL-5015 |
| Mating Type | Screw Coupling |
| Connector Size | Standard |
| Shell Plating | Zinc Cobalt |
Key Features
- MIL-C-5015 specification ensures military-grade reliability and durability.
- Constructed with high-grade aluminium alloy shell with zinc cobalt plating for corrosion resistance.
- Threaded screw coupling with single key polarization prevents mismating.
- Operates reliably in temperature range from -55°C to 125°C.
- Copper alloy contacts plated with silver provide excellent conductivity and durability.
- Suitable for industrial, military, and commercial electronic equipment applications.
- Designed for box mounting with male and female connector genders.
- Black olive drab chromate finish enhances corrosion resistance.
Product Description
Amphenol Industrial MS3102A MIL Spec Circular Connector is a 14 way box mount connector designed to meet demanding MIL-C-5015 military specifications. Featuring a durable aluminium alloy shell with zinc cobalt plating and black olive drab chromate finish, this straight circular connector ensures high resistance to corrosion under harsh environmental conditions.
The connector incorporates copper alloy contacts plated in silver to guarantee excellent electrical conductivity and long-term durability. The connector utilizes solder termination and threaded screw coupling with a single keyway design for precise, secure mating. It is engineered to operate reliably within a temperature range of -55°C to 125°C, making it suitable for various industrial, commercial, and military applications.
This MIL Spec circular connector is ideal for powering, testing, and ground support systems, as well as communications, computational equipment, and shipboard installations where dependable performance against mechanical and environmental stress is crucial. The rubber inserts provide superior dielectric strength and resistance to vibration, enhancing signal integrity in demanding conditions.
Designed for box mounting, this MS3102A series connector provides an effective solution for equipment cases where cable support is not required. The connector’s design prevents incorrect mating with keyed polarization and robust threaded coupling.
MIL-C-5015 compliant connector with durable construction. High-grade aluminium alloy shell with corrosion-resistant zinc cobalt plating. Copper alloy contacts with silver plating for reliable conductivity. Threaded screw coupling with keying to prevent mismating.
Temperature rating from -55°C to 125°C for harsh environments. Solder termination and strain relief features. Black olive drab chromate finish enhances corrosion resistance. Rubber inserts provide vibration resistance and dielectric strength.
Ideal for military, industrial, and commercial electronic systems. Box mount connector with male and female genders for versatile use.
Explore the extensive range of Amphenol Industrial Circular Connectors and power connectors at EnvMart, offering reliable solutions for diverse electronic and electrical applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a voltage rating of 500 to 700V AC.
It operates reliably within a temperature range of -55°C to 125°C.
The shell is made from high-grade aluminium alloy with zinc cobalt plating, while the contacts are copper alloy plated with silver.
This connector features 14 contacts.
It utilizes solder termination for secure connections.
This model is designed for box mounting.
It features a threaded screw coupling with a single keyway to prevent mismating.
The shell size for this connector is 20.
It complies with the MIL-DTL-5015 military standard.
The connector has a black olive drab chromate finish that enhances corrosion resistance.
The country of origin for this connector is the Czech Republic.
It is suitable for industrial, military, and commercial electronic equipment applications.
