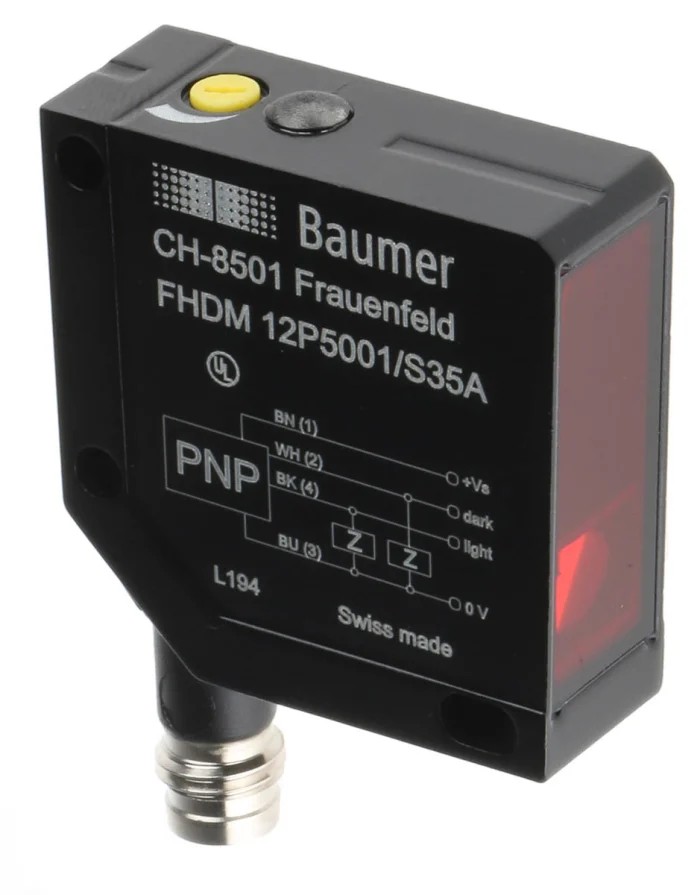

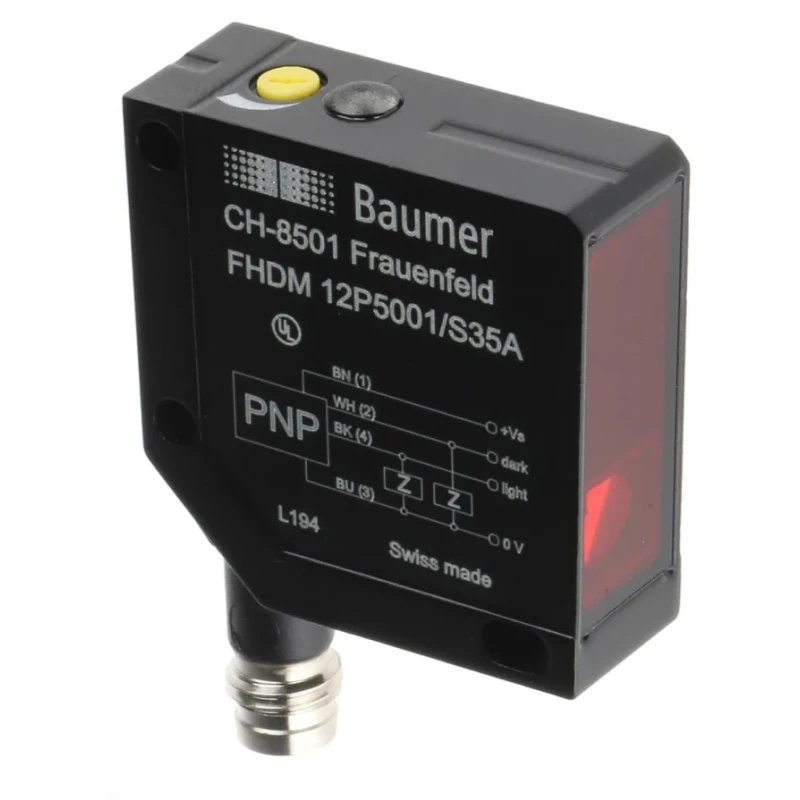

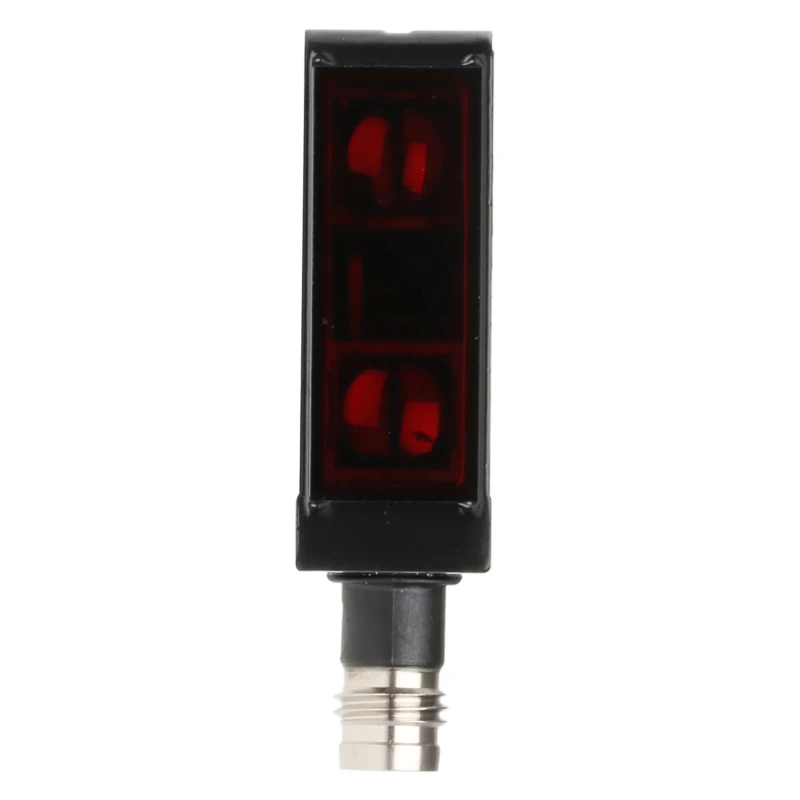

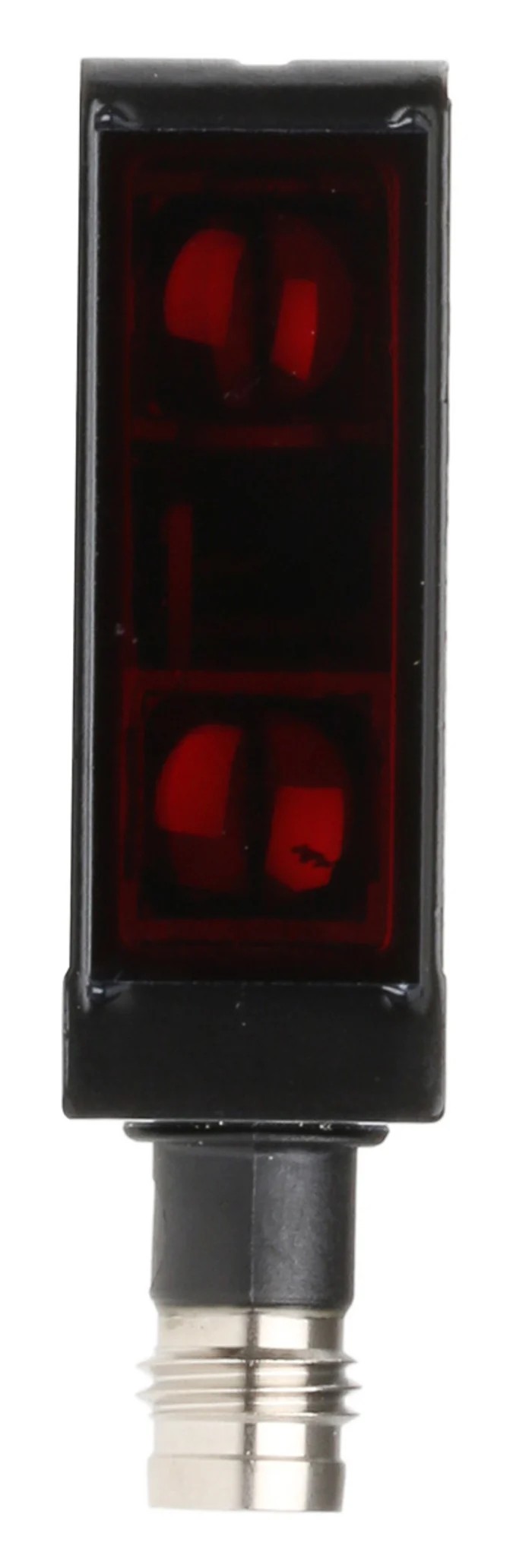

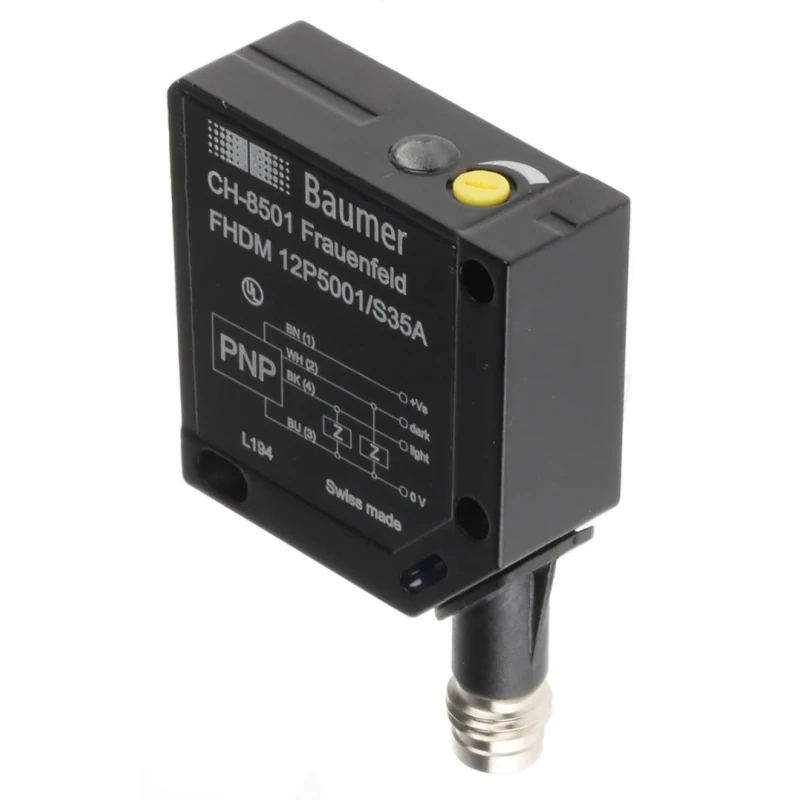

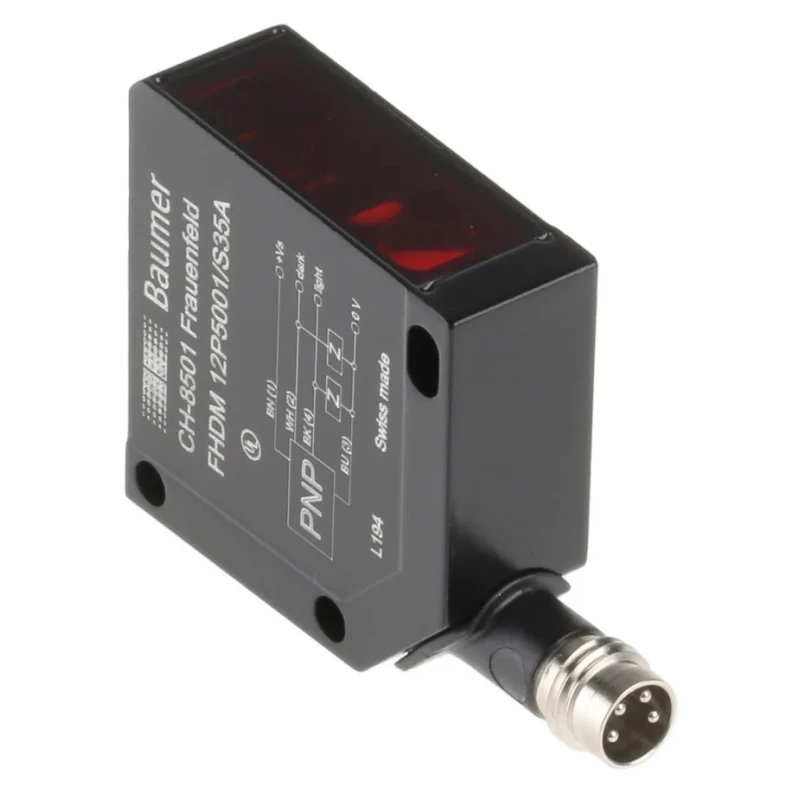

Baumer Diffuse Photoelectric Sensor Block Sensor 15 mm to 300 mm Detection Range PNP Output IP67 FHDM 12P5001/S35A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Baumer |
| Response time | 1ms |
| Light Source | LED |
| Detection range | 15 mm → 300 mm |
| Model | FHDM 12P5001/S35A |
| IP Rating | IP67 |
| Mount Type | Panel |
| Housing Material | Die Cast Zinc |
| Output type | PNP |
| Series | FHDM 12P |
| Maximum Operating Temperature | 65°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 100mA |
| DetectIon Type | Diffuse |
| Terminal type | 4-Pin M8 |
| Interface Type | IO-Link |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | IEC |
| Sensor Style | Block |
Key Features
- Durable die cast zinc housing ensures robust protection and long service life.
- Adjustable detection range from 15 mm to 300 mm via a 5-turn potentiometer for precise sensing.
- PNP output with light/dark switching for versatile interface compatibility.
- Integrates LED light source for visible positioning assistance during installation.
- IP67 rated protection offers resistance against dust and water ingress for harsh environments.
- Compact block sensor style suitable for panel mounting applications.
- Operating temperature range from -25°C to 65°C supports wide environmental conditions.
- Short response time of 1 ms enables fast detection for automation processes.
Product Description
Baumer FHDM 12P5001/S35A diffuse photoelectric sensor block sensor offers precise, adjustable detection for automated industrial processes. Encased in a die-cast zinc robust metal enclosure, this sensor provides durability and reliability under challenging environmental conditions. It operates within a detection range of 15 mm to 300 mm, adjustable using a 5-turn potentiometer, allowing tailored sensing accuracy for varying applications.
The sensor outputs a PNP signal with light/dark switching, supporting easy integration with diverse control systems. It is equipped with an LED light source to aid in accurate positioning during installation, while its IP67 rating ensures protection against dust and water ingress, making it suitable for industrial and manufacturing environments.
Featuring a fast 1 ms response time, the Baumer FHDM 12P5001/S35A sensor is ideal for high-speed automation tasks requiring precise detection. Its panel mount design facilitates straightforward assembly, and the device is safeguarded against reverse polarity and short circuits, enhancing operational safety and longevity.
Additional features include the IO-Link interface option for enhanced communication and configuration capabilities, making it compatible with modern industrial automation networks. The sensor is certified under IEC standards and is engineered for operation in ambient temperatures ranging from -25°C to 65°C.
This diffuse photoelectric sensor is widely applicable in industrial automation, manufacturing, packaging machinery, and quality control systems where reliable object detection is critical.
Durable die cast zinc housing ensures robust protection and long service life. Adjustable detection range from 15 mm to 300 mm via a 5-turn potentiometer for precise sensing. PNP output with light/dark switching for versatile interface compatibility.
Integrates LED light source for visible positioning assistance during installation. IP67 rated protection offers resistance against dust and water ingress for harsh environments. Compact block sensor style suitable for panel mounting applications.
Operating temperature range from -25°C to 65°C supports wide environmental conditions. Short response time of 1 ms enables fast detection for automation processes. Protected against reverse polarity and short circuits for enhanced safety.
Supports IO-Link interface for advanced connectivity and configuration. Explore a broad range of Photoelectric Sensors and industrial automation components on EnvMart for your specific application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this model is adjustable from 15 mm to 300 mm, allowing for precise sensing in various applications.
It features a PNP output with light/dark switching, making it compatible with various control systems.
The response time is 1 ms, enabling fast detection suitable for automation processes.
It has an IP67 rating, which provides protection against dust and water ingress, suitable for harsh environments.
This sensor operates effectively within a temperature range of -25°C to 65°C.
The housing is made from die-cast zinc, providing robust protection and durability.
The detection range can be adjusted using a 5-turn potentiometer for tailored sensing accuracy.
It integrates an LED light source to assist with visible positioning during installation.
The terminal type is a 4-Pin M8 connection, facilitating easy installation.
Yes, it supports the IO-Link interface for enhanced connectivity and configuration capabilities.
It is certified under IEC standards, ensuring compliance with industrial requirements.
This model is designed for panel mounting applications, making it suitable for various setups.
