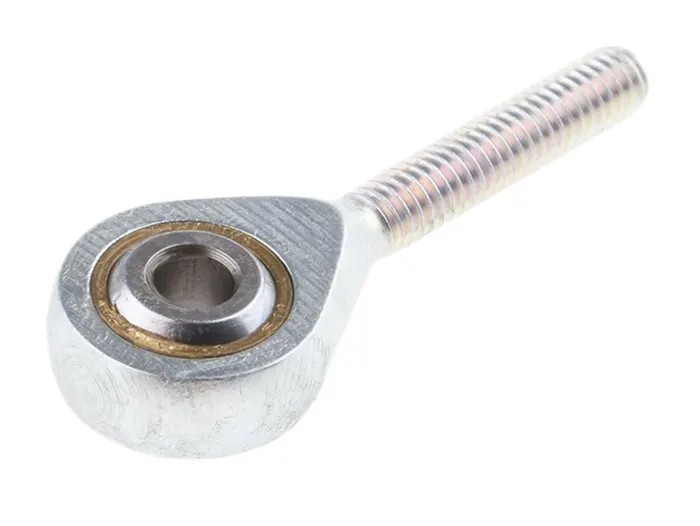

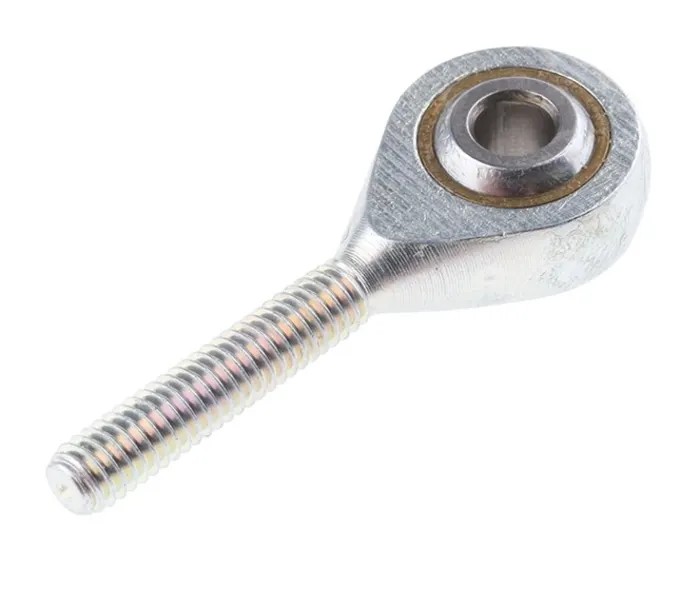

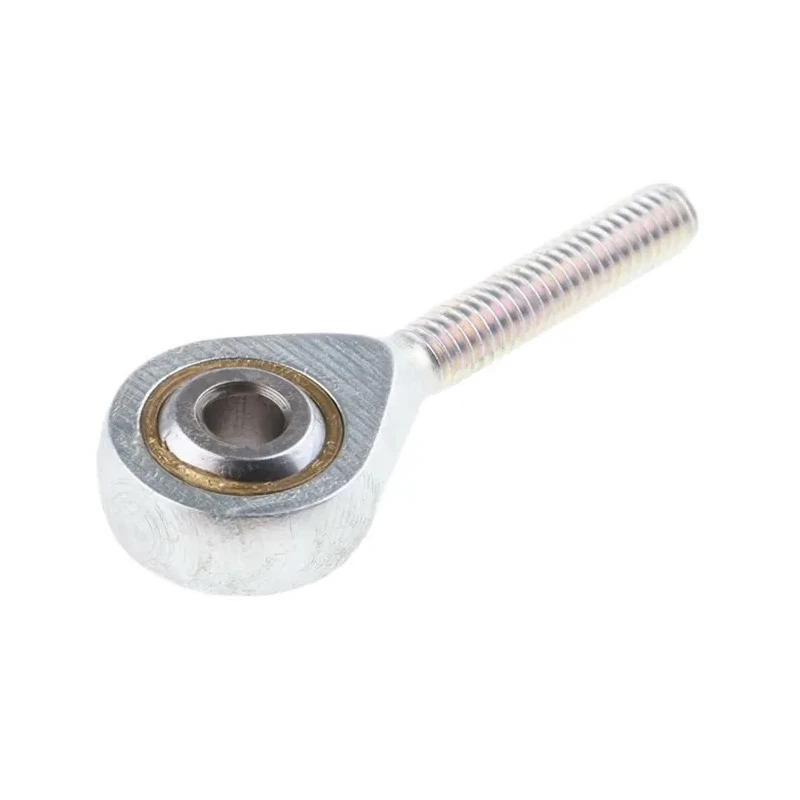

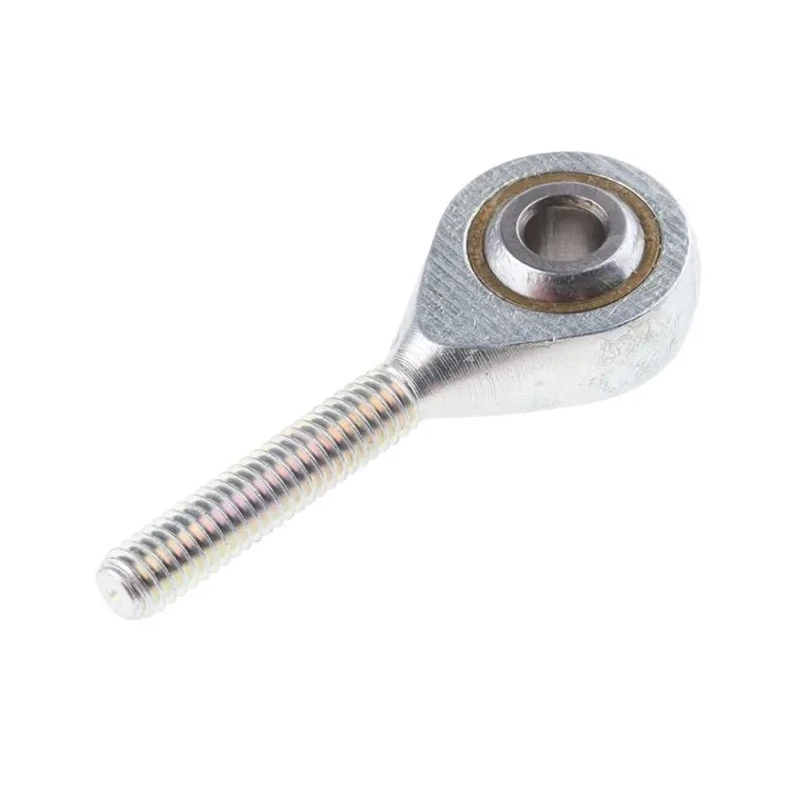

RS PRO Steel Rod End Metric M4 x 0.7 Male, 4mm Bore 382-267
Specifications
| Country of Origin | Switzerland |
|---|---|
| Brand | RS PRO |
| Material | Steel |
| Model | 382-267 |
| Overall Width | 37mm |
| Connection Size | M4 x 0.7 Male |
| Bore Diameter | 4mm |
| Thread Standard | Metric |
| Static Load Rating | 2040N |
| Connection Gender | Male |
| RS PRO M4 x 0.7 Female Steel Rod End, 4mm Bore MetricBrand | RS PRO |
Key Features
- Constructed from C22/C35 Pb steel, zinc plated and passivated for corrosion resistance.
- Hardened ball made of 100 Cr6 ball bearing steel, ground and polished for durability.
- Bronze inserts require lubrication and are factory-filled with Molykote BR2 for optimal performance.
- Provides +/- 13° off-centre movement throughout 360° for flexibility in industrial applications.
- Static load rating of 2040 N supports sizeable mechanical loads effectively.
- Overall width measures 37 mm, suitable for compact assembly requirements.
- Manufactured in Switzerland to high quality standards.
- Ideal for use in hydraulic, pneumatic, and mechanical systems in industrial environments.
Product Description
RS PRO 382-267 is a steel rod end bearing featuring a metric M4 x 0.7 male thread and 4mm bore diameter. Its robust construction makes it suitable for demanding mechanical linkages requiring durability and precision. The rod end is manufactured from C22/C35 Pb steel that is zinc plated and passivated to provide excellent corrosion resistance.
The hardened ball component is made from ground and polished 100 Cr6 ball bearing steel to ensure smooth articulation and prolonged service life. Bearing inserts are made of Cu Zn 40 Mn Pb bronze, requiring lubrication, and are factory-filled with Molykote BR2 to optimize operation.
The rod end allows for +/- 13° off-centre movement through a full 360°, enabling versatile applications in rotating and oscillating joints. It has a static load rating of 2040 N, catering to substantial mechanical stresses while maintaining performance. The unit measures 37 mm in overall width, making it a compact solution for space-constrained assemblies.
Manufactured in Switzerland, this rod end bearing adheres to stringent quality standards, making it ideal for industrial, hydraulic, pneumatic, and mechanical systems requiring reliable, corrosion-resistant rotary bearings. Its galvanised zinc coating further enhances resistance to environmental factors, ensuring longer operational life in demanding applications.
Constructed from corrosion-resistant zinc-plated C22/C35 Pb steel. Equipped with hardened, ground and polished 100 Cr6 steel ball bearing. Bronze inserts with factory lubrication enable smooth movement. Allows +/- 13° off-centre movement through 360° articulation.
Static load rating of 2040 N suitable for mechanical load conditions. Compact overall width of 37 mm for versatile installation. Manufactured to high Swiss quality standards for industrial use. Corrosion resistant with galvanised zinc coating for durability.
This rod end bearing is recommended for use in mechanical linkages in industrial machinery, fluid power tools, and rotary bearing assemblies. It supports applications requiring precise articulation with high load capability and corrosion resistance. Explore more industrial bearings and rotary units in the Rod End Bearing category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The static load rating of this rod end bearing is 2040 N, allowing it to support substantial mechanical loads effectively.
It is constructed from C22/C35 Pb steel, zinc plated and passivated for corrosion resistance, with a hardened ball made of 100 Cr6 ball bearing steel.
The overall width of this rod end bearing is 37 mm, making it suitable for compact assembly requirements.
The bore diameter of this rod end bearing is 4 mm, designed for precise fitting in mechanical applications.
This model features a metric M4 x 0.7 male thread, allowing for compatibility with corresponding threaded components.
It allows for +/- 13° off-centre movement throughout a full 360°, providing flexibility in various applications.
The bronze inserts are factory-filled with Molykote BR2 for optimal performance and require lubrication during operation.
This rod end bearing is manufactured in Switzerland, adhering to high quality standards.
It is recommended for use in hydraulic, pneumatic, and mechanical systems requiring reliable rotary bearings.
The connection gender of this rod end bearing is male, designed for compatibility with female threaded components.
The zinc plating provides corrosion resistance, enhancing the durability of the rod end bearing in demanding environments.
The thread standard for this rod end bearing is metric, ensuring compatibility with other metric components.
