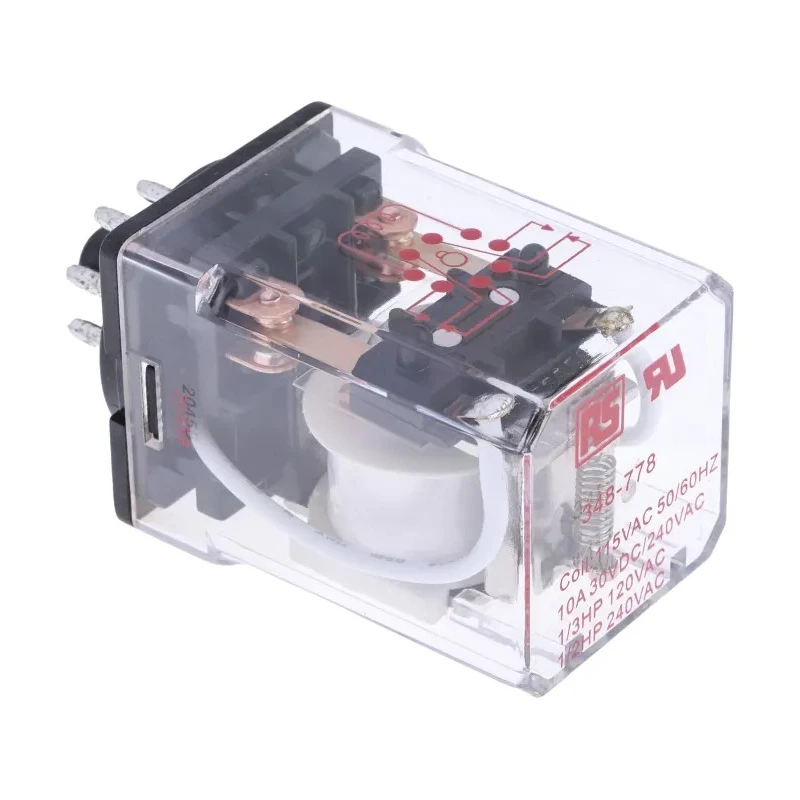

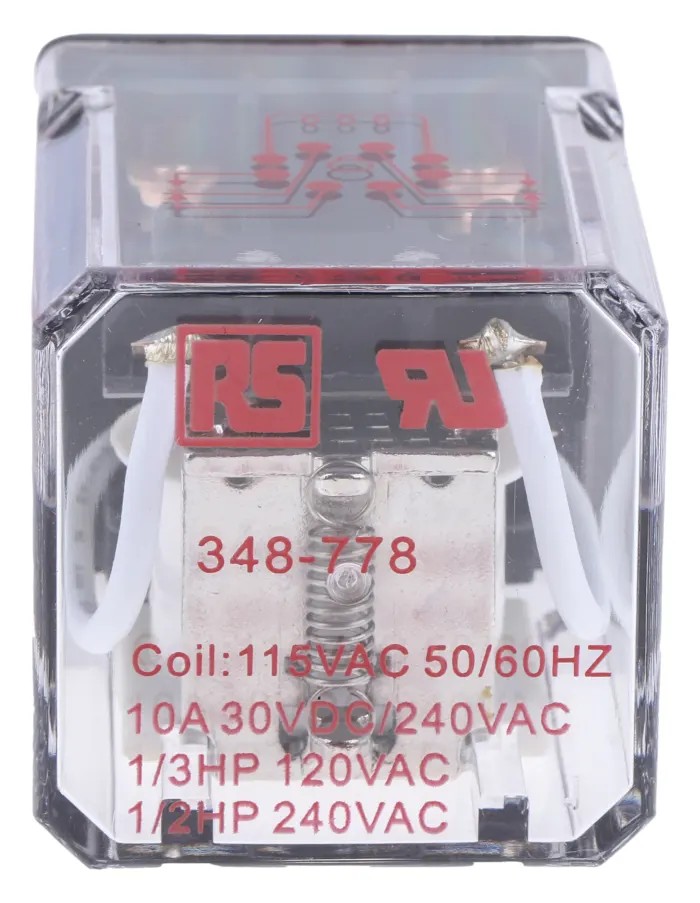

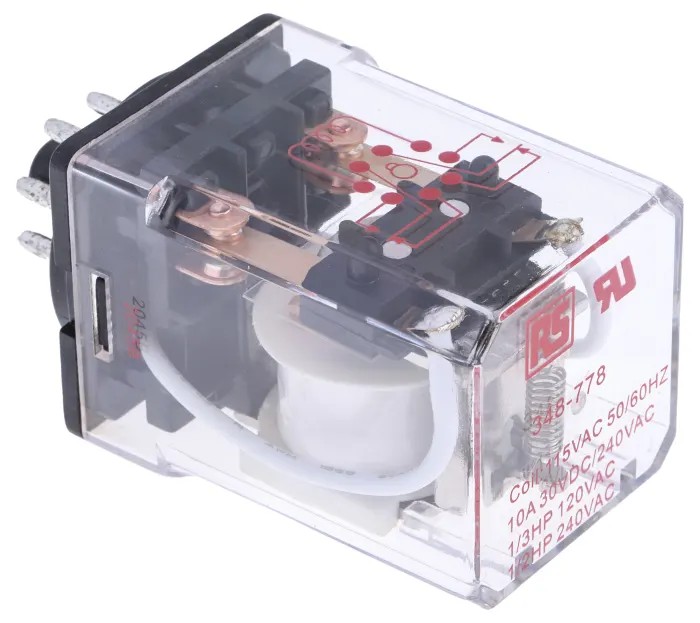

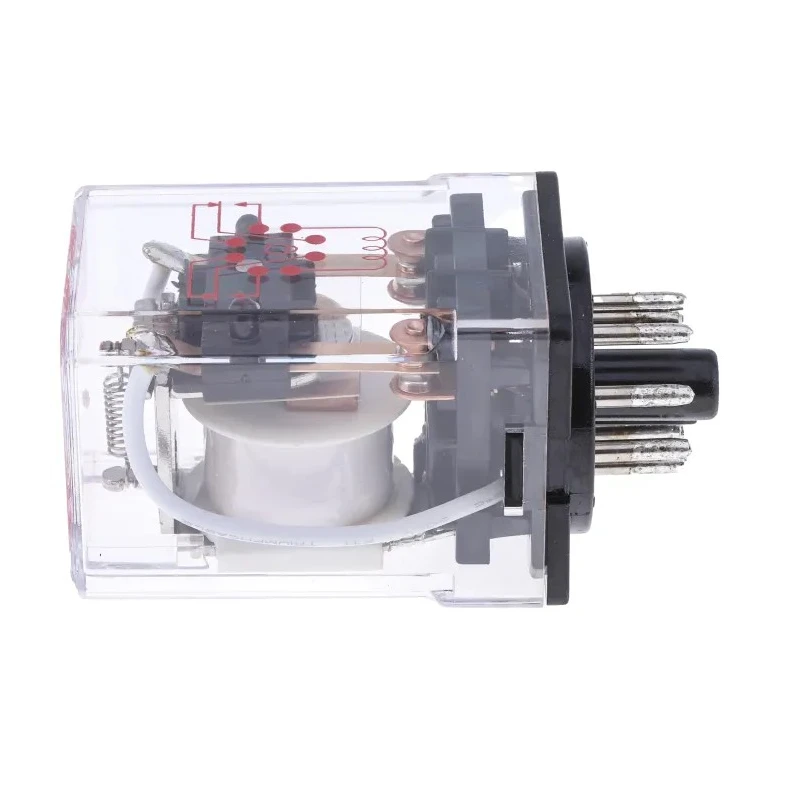

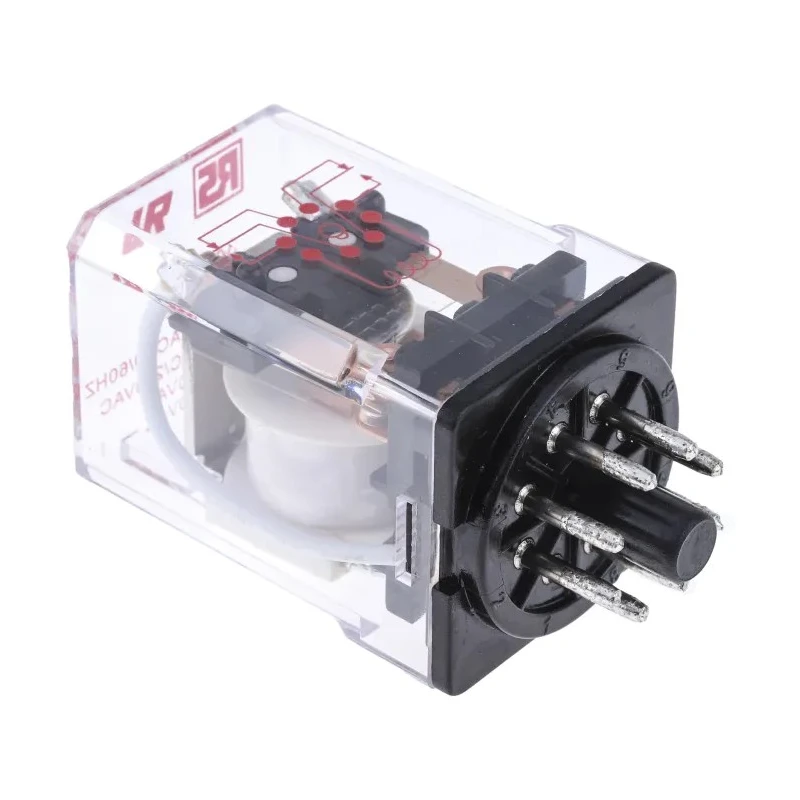

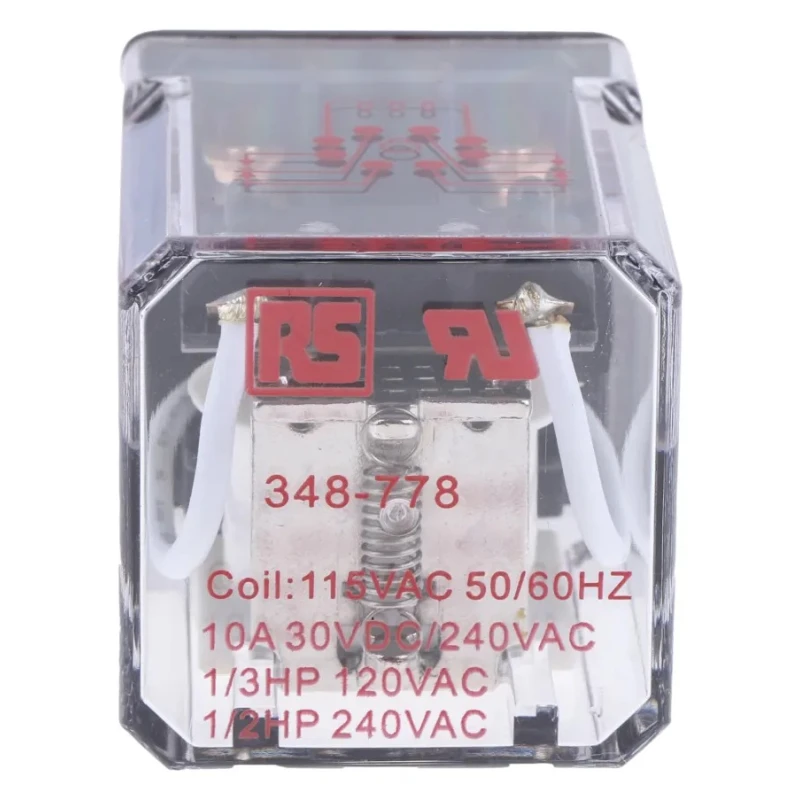

RS PRO Power Relay DPDT Double Pole Double Throw 115V AC Coil 10A Switching Current 2W Coil Power Silver Alloy 348-778
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Height | 56mm |
| Length | 35mm |
| Model | 348-778 |
| Width | 35mm |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -45°C |
| Switching Current | 10A |
| Terminal type | Solder |
| Standards/Approvals | CE, UL, EN |
| Coil Resistance | 2kΩ |
| Coil Voltage | 115V ac |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 240V |
| Coil Power | 2W |
Key Features
- Features DPDT double pole double throw contact configuration for versatile switching.
- Coil voltage rated at 115V AC with a coil resistance of 2 kΩ ensures stable operation.
- Switching current capacity up to 10 amperes suitable for moderate power circuits.
- Silver alloy contact material plated in gold offers long-lasting durability and wear resistance.
- Operating temperature range from -45°C to 55°C for varied environmental conditions.
- Compact dimensions with height 56 mm, width 35 mm, and length 35 mm suitable for PCB or DIN rail mounting.
- Maximum switching power rated at 2.4 kVA AC and 300 W DC for heavy duty use.
- Plug-in mounting type with through-hole solder terminals for secure connections.
Product Description
RS PRO 348-778 Power Relay is a reliable DPDT (Double Pole Double Throw) relay featuring a 115V AC coil and a switching current capacity of 10A, designed for use in professional and industrial electrical and automation settings.
Its coil power of 2 watts and coil resistance of 2 kΩ provide efficient electromagnetic actuation. The relay offers versatility with plug-in mounting suitable for PCB or DIN rail installations.
Encased in a robust polycarbonate housing, the relay is protected against dirt, moisture, and mechanical wear. Silver alloy contacts plated in gold ensure excellent conductivity and extended service life, making it appropriate for critical applications such as telecommunications and medical equipment.
This relay operates reliably within a temperature range of -45°C to +55°C and withstands a maximum switching power of 2.4 kVA AC or 300 W DC, supporting switching voltages up to 240V AC and 30V DC.
The compact size (56 mm height, 35 mm width and length) facilitates flexible integration into industrial control panels. Its mechanical durability, rated at 10 million cycles, promotes long-term operational service.
Compliance with CE, UL (E125370), and EN standards confirms the product’s adherence to recognized safety and quality requirements. DPDT double pole double throw contact configuration. 115V AC coil voltage with 2 kΩ coil resistance.
10 ampere switching current capacity. Silver alloy contact material durable and gold plated. Operating temperature from -45°C to 55°C for wide environmental tolerance. Robust polycarbonate housing resistant to moisture and wear.
Plug-in mounting for easy installation on PCB or DIN rail. Switching power rated at 2.4 kVA AC and 300 W DC. Meets CE, UL, and EN safety and quality standards. Mechanical life up to 10 million cycles ensuring longevity. This RS PRO power relay is ideal for industrial, automation, telecommunications, and medical equipment applications requiring fast and reliable electrical switching.
Explore EnvMart’s Power Relays category for a comprehensive selection of high-quality relay components from trusted brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage rating of this power relay is 115V AC.
This model has a maximum switching current capacity of 10A.
The relay has dimensions of 56 mm in height, 35 mm in width, and 35 mm in length.
It features a DPDT (Double Pole Double Throw) contact configuration for versatile switching.
The operating temperature range of this relay is from -45°C to +55°C.
This relay supports plug-in mounting, suitable for PCB or DIN rail installations.
The coil resistance of this relay is 2 kΩ.
The contacts are made of silver alloy and are plated in gold for enhanced conductivity and durability.
The maximum switching power rating is 2.4 kVA AC and 300 W DC.
This relay complies with CE, UL, and EN standards, ensuring adherence to recognized safety and quality requirements.
The mechanical life of this relay is rated at up to 10 million cycles.
The maximum switching voltage is 240V AC and 30V DC.
