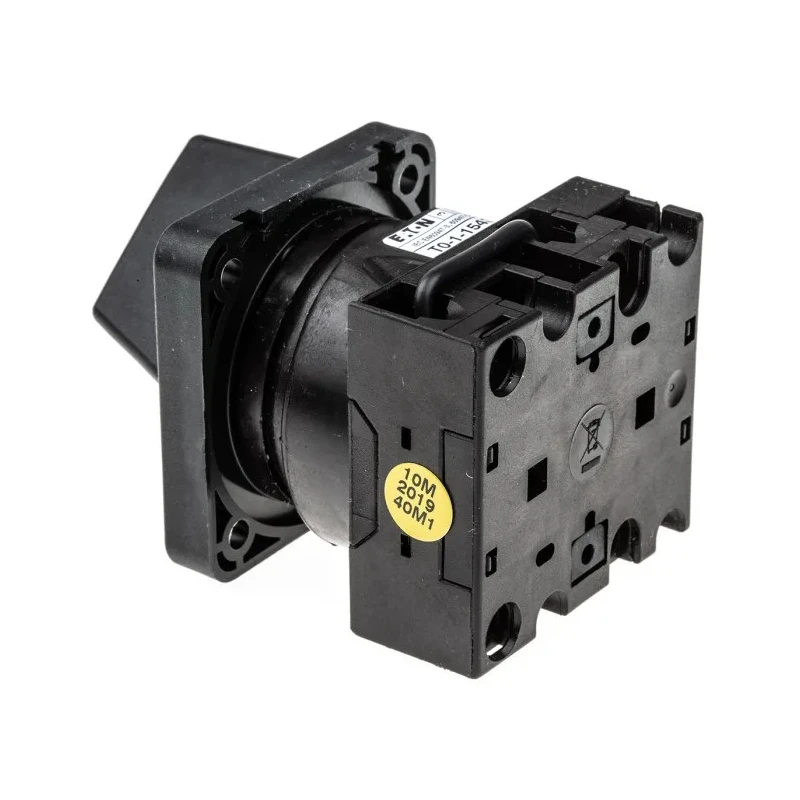

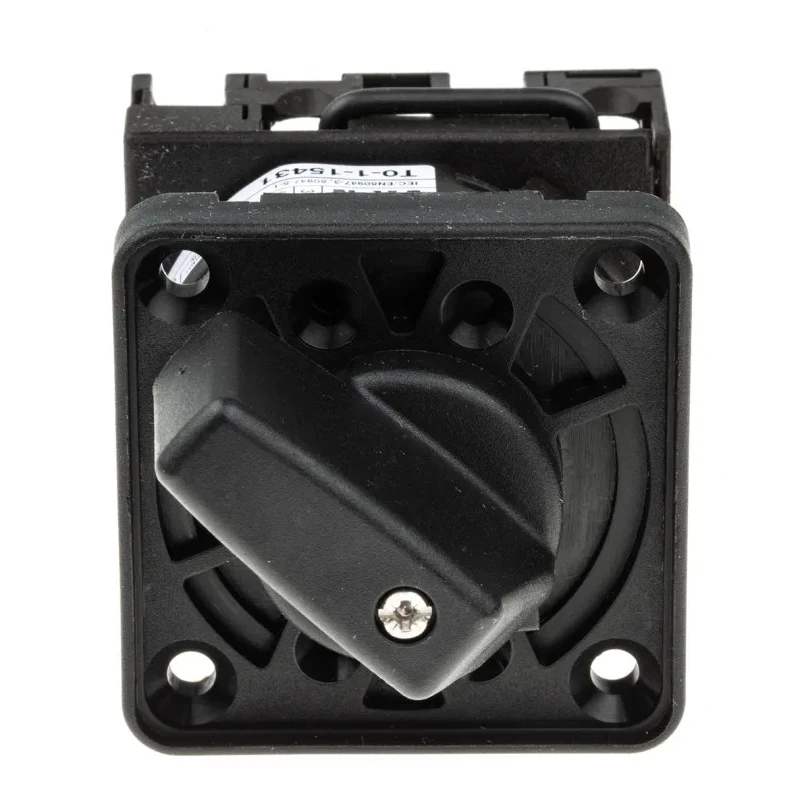

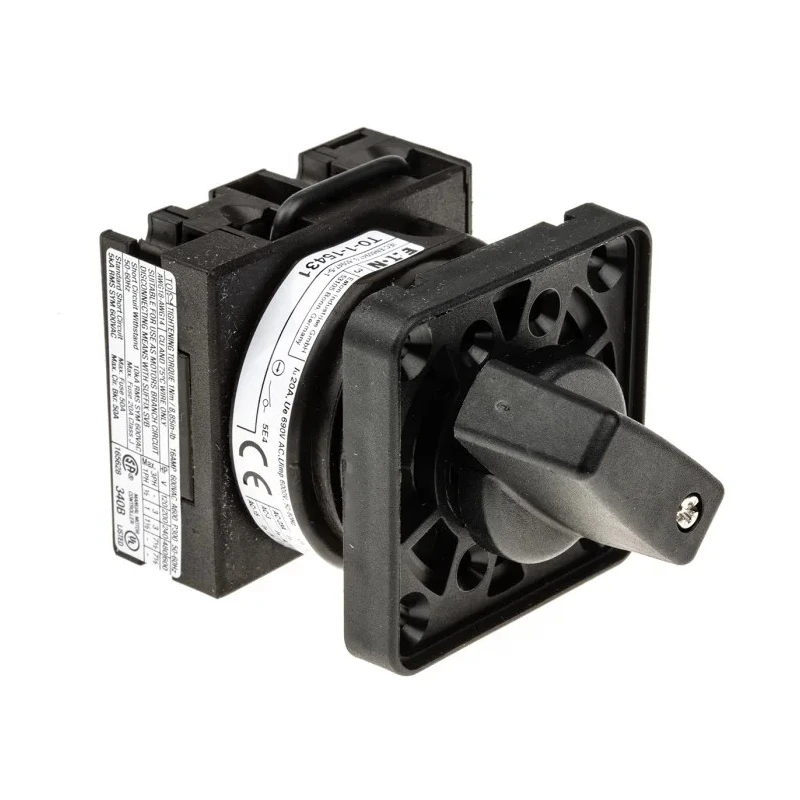

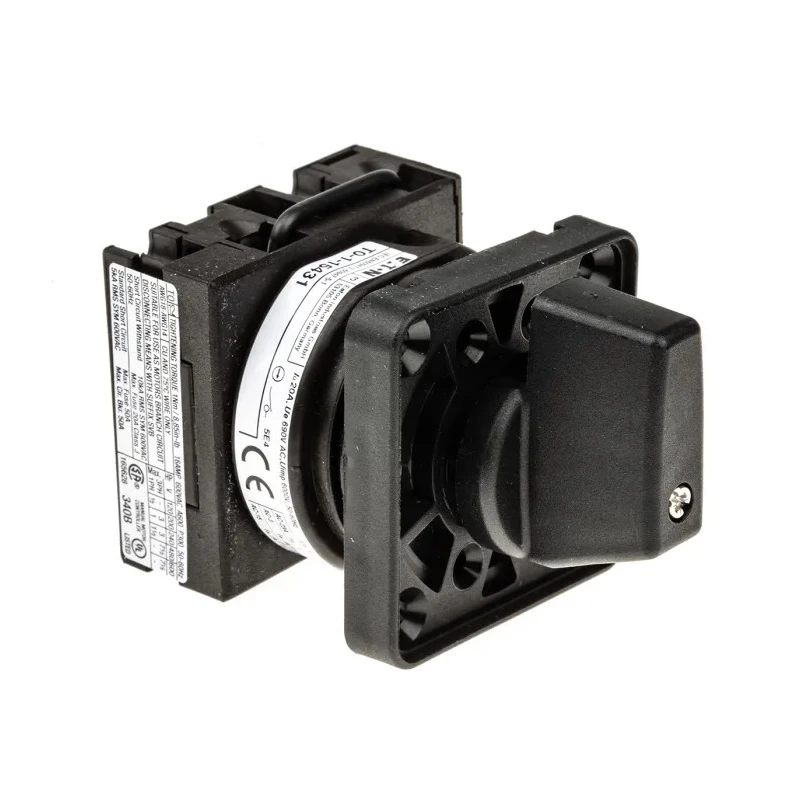

Eaton 3 Position 45 ° Rotary Cam Switch 20A 690V Flush Mount IP65 78819007 T0-1-15431/E/EZ-P1(RS332-199)
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Eaton |
| Length | 48mm |
| Model | 78819007 T0-1-15431/E/EZ-P1(RS332-199) |
| Depth | 76mm |
| IP Rating | IP65 |
| Width | 48mm |
| Mount Type | Flush |
| Series | T0 |
| Maximum Operating Temperature | 50°C |
| Number of Positions | 3 |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Electrical Phase | 1 |
| Hazardous Area Certification | IECEx |
| Number of Poles | 1 |
| Standards/Approvals | IEC/EN 60947 |
| Mechanical Life | 1000000Operations |
| Contact Voltage | 690V |
| Contact Current | 20A |
| Angle of Throw | 45 ° |
| Eaton 3 Position 45 °, Toggle Actuator 20 ABrand | Eaton |
| CAM SWITCH HAND-O-AUTOBrand | NEUTRAL |
| Kraus & Naimer 3 Position, Rotary Knob Actuator 10 ABrand | Kraus & Naimer |
Key Features
- Compact flush mount design measuring 90 x 75 x 48 mm for flexible installation.
- Features IP65 protection against dust and water jets to ensure durability.
- Equipped with screw terminals for secure electrical connections.
- Designed to operate within a temperature range of -25°C to 50°C for varied environments.
- Supports one electrical pole and three switching positions with a 45-degree angle of throw.
- Robust mechanical life rating of 1,000,000 operations for long-term reliability.
- Ergonomic stay-put knob actuator prevents accidental switch activation.
- Certified IEC/EN 60947 and IECEx for hazardous area suitability.
Product Description
Eaton 78819007 T0-1-15431/E/EZ-P1(RS332-199) is a 3 Position Rotary Cam Switch engineered for dependable control in industrial electrical applications. Rated for 20A maximum current and 690V AC voltage, it supports secure switching with a robust screw terminal connection. The flush mount design with compact dimensions of 90 x 75 x 48 mm enables versatile installation in control panels.
This cam switch features an IP65-rated enclosure protecting against dust ingress and water jets, ensuring operational safety and durability in harsh industrial environments. The ergonomic stay-put knob actuator provides reliable operation and prevents accidental activation by being finger and back-of-hand proof.
Operating temperatures range from -25°C to 50°C in open configurations and up to 40°C when enclosed, supporting a wide range of industrial conditions. The device meets IEC/EN 60947 standards and holds IECEx certification for hazardous area use, confirming its compliance with international safety norms.
With a single pole and three-position switching capability at a 45-degree angle of throw, it is designed for motor control circuits, automation machinery, and power distribution systems. It offers a mechanical lifespan of one million operations, highlighting its durability for continuous industrial usage.
Compact flush mount design for flexible industrial installation. IP65 rated to resist dust and water ingress effectively. Screw terminal type ensures secure and reliable electrical connections. Wide operating temperature range suitable for diverse environments.
High mechanical life enhances longevity and reliability. IEC and IECEx certifications for safety and hazardous area compatibility. Ergonomic knob actuator facilitates safe and easy operation. Supports motor control and power distribution applications.
Dimensions: length 48 mm, width 48 mm, depth 76 mm.
This Eaton Cam Switch is an essential component for industrial automation, manufacturing control panels, and power system integration, providing dependable switching and enhanced safety. Browse more electrical switch options and accessories at EnvMart for comprehensive industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this rotary cam switch is 20A.
It can handle a maximum contact voltage of 690V.
The dimensions of this cam switch are 90 mm in length, 75 mm in width, and 48 mm in depth.
This rotary switch has an IP65 rating, which protects against dust and water jets.
The operating temperature range is from -25°C to 50°C in open configurations and up to 40°C when enclosed.
This switch supports three switching positions with a 45-degree angle of throw.
It is equipped with screw terminals for secure electrical connections.
The mechanical life rating of this rotary cam switch is 1,000,000 operations.
Yes, it holds IECEx certification for hazardous area suitability.
This model complies with IEC/EN 60947 standards.
This cam switch features a flush mount design for flexible installation.
The country of origin for this product is the United Kingdom.
