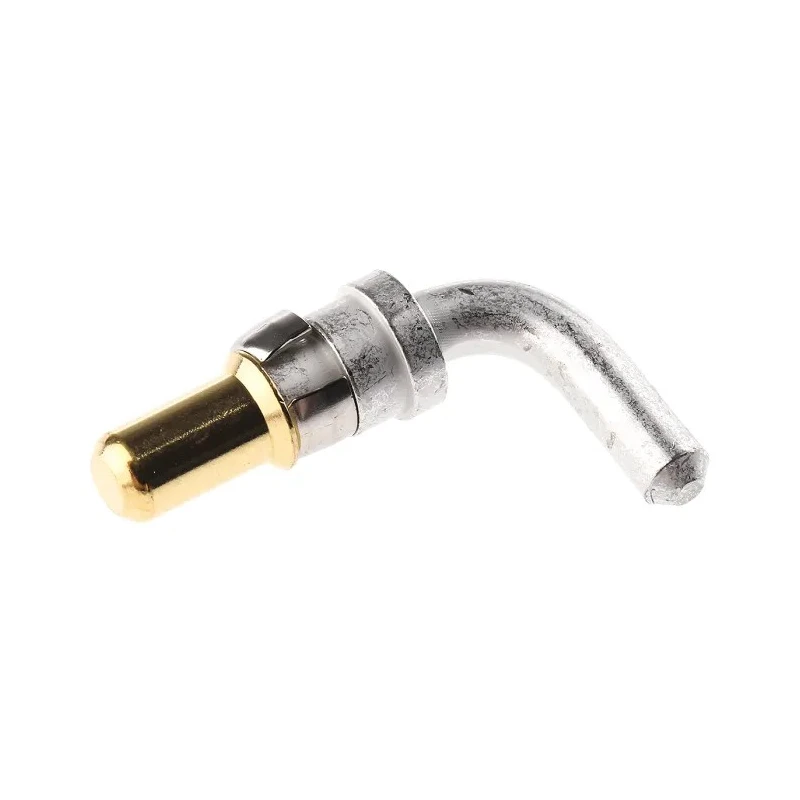

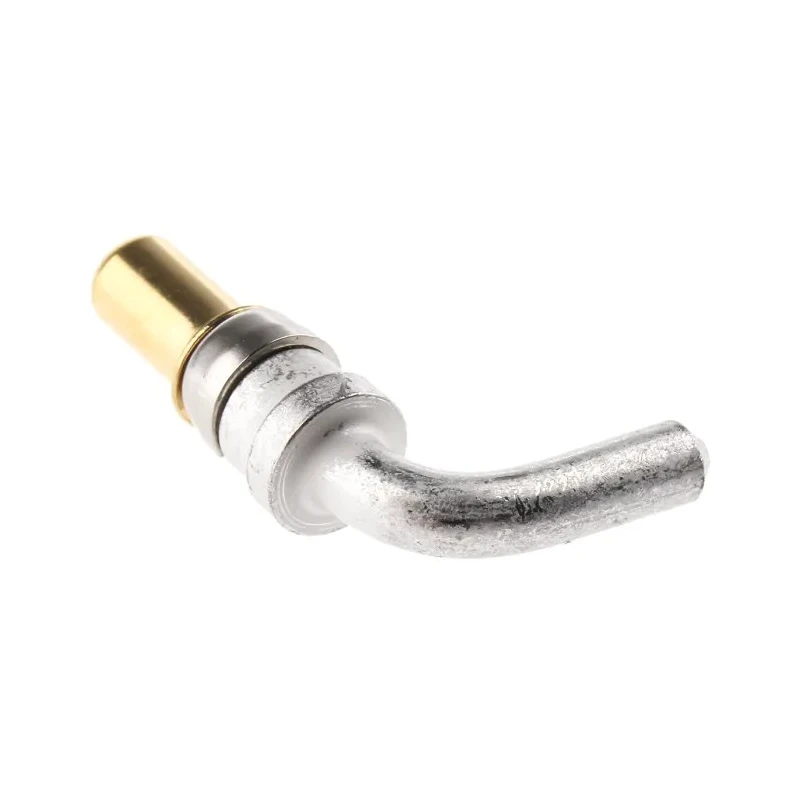

FCT from Molex 173112 Series Male Solder D-Sub Connector Power Contact Gold over Nickel 16 AWG FMP008P104 / 1731120079
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | FCT from Molex |
| Current | 20A |
| Length | 17.7mm |
| Model | FMP008P104 / 1731120079 |
| Gender | Male |
| Contact Material | Copper Alloy |
| Series | 173112 |
| Termination Type | Solder |
| Standards/Approvals | UL Recognised File No. 168813 |
| Contact Plating | Gold over Nickel |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 16AWG |
| Maximum Contact Resistance | 2.7mΩ |
| PCB holes for coax plug and socket | 4 holes 1.3mm dia. on 5.08mm ctrs, plus centre hole 1.3mm dia |
Key Features
- The contact is made from copper alloy for excellent conductivity and durability.
- It features a right-angle male pin for 90-degree PCB mounting.
- Suitable for solder termination ensuring a secure electrical connection.
- Compatible with wire sizes ranging from 20 AWG minimum to 16 AWG maximum.
- Gold-over-nickel plating reduces contact resistance and improves long-term reliability.
- Designed to meet UL Recognised standards, File No. 168813.
- Typical applications include computer networking, industrial automation, and machine building.
- Connector length measures 17.7 mm with precise termination and mating area microinch specifications.
Product Description
Constructed from a copper alloy base material, this male contact ensures excellent conductivity, while the gold-over-nickel plating enhances corrosion resistance and maintains a low contact resistance of 2.7 milliohms. The connector is rated for a continuous current of 20 amps, making it well suited for power and mixed signal applications.
The contact termination utilizes solder connection techniques, offering dependable mechanical and electrical joint performance. It supports termination wire sizes between 20 and 16 AWG, accommodating common PCB wiring standards.
Measuring 17.7 mm in length, the contact is designed with a right-angle pin, facilitating 90-degree PCB mounting which is ideal for compact assemblies. It complies with UL Recognised standards under File No. 168813, assuring quality and safety certification.
This contact is commonly used in applications such as computer networking hardware, industrial automation systems, machine building, and printed circuit board assemblies. The design allows for integration into mixed layout D-sub shells which unify power, coaxial, and signal contacts in a single connector housing, catering to military, commercial, and industrial sectors.
Technical details include precise termination and mating surface finishes measured at microinch levels, and specific PCB hole dimensions for mounting and coaxial plugs. Copper alloy construction for high conductivity. Gold-over-nickel plating for durability and corrosion resistance.
20A continuous current rating for power applications. Right-angle male pin for space-saving PCB mounting. Solder termination type ensures secure electrical connection. Compatible with 20 AWG to 16 AWG wire sizes. UL Recognised, File No. 168813 certified for safety.
Ideal in industrial automation, machine building, and network equipment. Discover the full range of D-Sub Connector Contacts and power contacts on EnvMart for reliable and versatile connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a continuous current rating of 20 amps, making it suitable for power and mixed signal applications.
The contact is constructed from a copper alloy, and features gold-over-nickel plating for enhanced conductivity and corrosion resistance.
The length of this connector contact measures 17.7 mm.
It is compatible with wire sizes ranging from 20 AWG minimum to 16 AWG maximum.
This model utilizes solder termination, ensuring a secure electrical connection.
The PCB holes for coax plug and socket include four holes with a diameter of 1.3 mm on 5.08 mm centers, plus a center hole also measuring 1.3 mm in diameter.
Yes, it is UL Recognised under File No. 168813, assuring compliance with safety standards.
Typical applications include computer networking hardware, industrial automation systems, and machine building.
The maximum contact resistance is 2.7 milliohms, which helps maintain efficient electrical performance.
This connector contact is male, designed for right-angle PCB mounting.
The country of origin for this model is Germany.
This connector contact belongs to the 173112 series from FCT from Molex.
