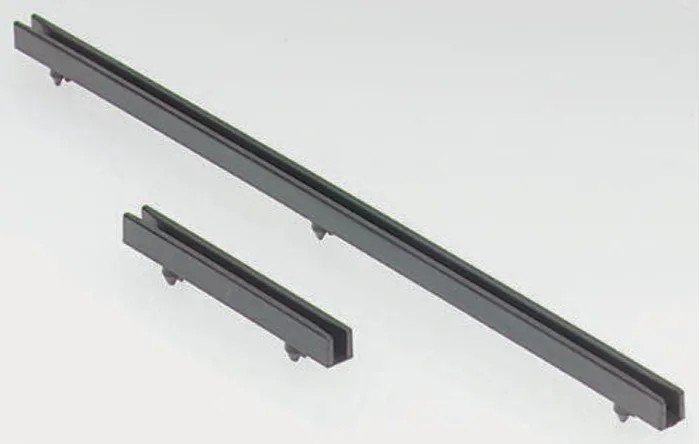

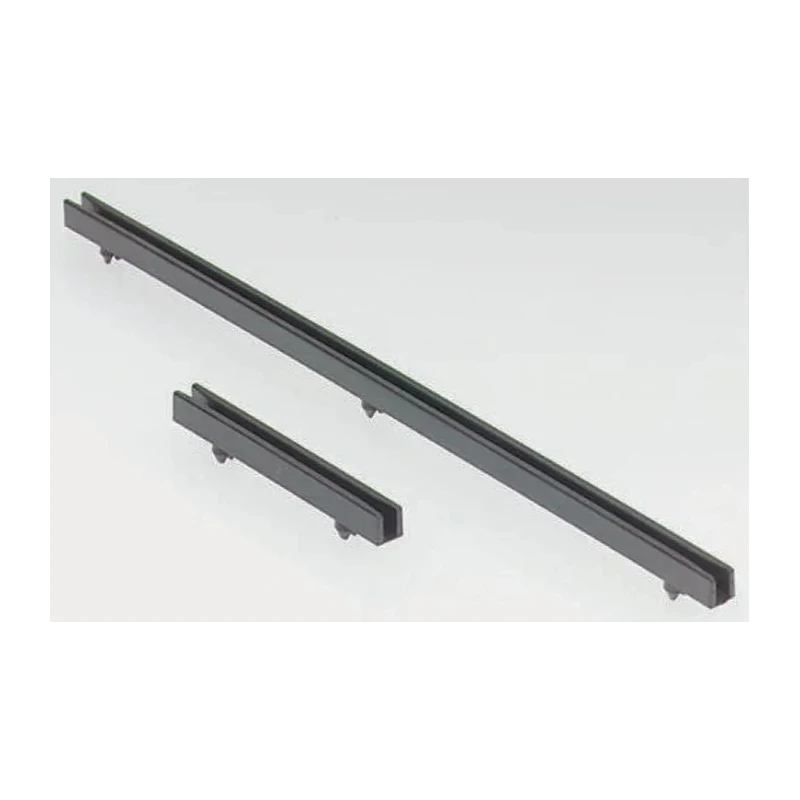

Essentra PCB Card Guide Vertical Mount 152.4 mm Length, 1.6 mm Maximum Thickness RDC 600
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Essentra |
| Colour | black |
| Length | 152.4mm |
| Model | RDC 600 |
| Sub Type | Vertical Mount |
| Standards/Approvals | RoHS |
| Maximum PCB Thickness | 1.6mm |
Key Features
- Deep channel design with 5.1 mm high slots ensures secure PCB support.
- Funnel entries allow effortless insertion of PCBs.
- Can be mounted end to end for longer PCB lengths.
- Constructed from flame retardant glass filled nylon with UL94 V-0 rating.
- Slim 6.4 mm width supports maximum airflow for passive cooling.
- Installation requires no tools; snaps into 4.8 mm standard holes.
- Compatible with metal, plastic chassis, or machine casing.
- Suitable for high shock and vibration environments.
Product Description
Essentra RDC 600 PCB Card Guide is a vertical mount guide designed to support printed circuit boards up to 152.4 mm in length with a maximum thickness of 1.6 mm. This component facilitates secure and stable PCB mounting in electronic assemblies.
The card guide features a deep channel design with 5.1 mm high slots and funnel-shaped entries that enable easy board insertion while ensuring a firm hold. Their design allows end-to-end mounting, providing extended support for longer boards without compromising retention even under high shock and vibration conditions.
Manufactured from flame retardant glass filled nylon material rated as UL94 V-0, these guides offer durable performance and contribute to passive cooling through their slim 6.4 mm profile, which allows optimal airflow.
The installation process is tool-free, as the guides snap securely into standard 4.8 mm holes commonly found in metal, plastic, or machine casings. This simplifies the assembly procedure while maintaining reliability.
Deep Channel and Funnel Entry Design for Secure PCB Holding. End-to-End Mounting Capability for Extended Board Support. Flame Retardant Glass Filled Nylon Construction with UL94 V-0 Rating. Slim 6.4 mm Width Design Ensures Maximum Passive Cooling.
Snap-Fit Installation into Standard 4.8 mm Mounting Holes. High Shock and Vibration Resistance for Industrial Applications. RoHS Compliant and Black Color Finish.
These card guides are essential for electronic, manufacturing, and assembly industries requiring dependable PCB support solutions. They are particularly useful in environments where vibration and shock resistance are critical.
Explore more PCB Card Guides and related electronic components in the Electronics & Electricals category at EnvMart for premium industrial quality and technical precision.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can support printed circuit boards up to 152.4 mm in length.
The maximum thickness of PCB that this guide can accommodate is 1.6 mm.
It is constructed from flame retardant glass filled nylon, rated as UL94 V-0.
Installation is tool-free; the guides snap securely into standard 4.8 mm mounting holes.
Yes, it is designed to withstand high shock and vibration conditions, ensuring reliable PCB support.
The card guide is available in a black color finish.
Yes, the card guide is RoHS compliant, meeting environmental safety standards.
This model has a slim width of 6.4 mm, which supports maximum airflow for passive cooling.
Yes, the design allows for end-to-end mounting, providing extended support for longer boards.
It is compatible with metal, plastic chassis, or machine casings.
The funnel-shaped entries enable effortless insertion of PCBs while ensuring a firm hold.
The card guide is manufactured in the United States.
