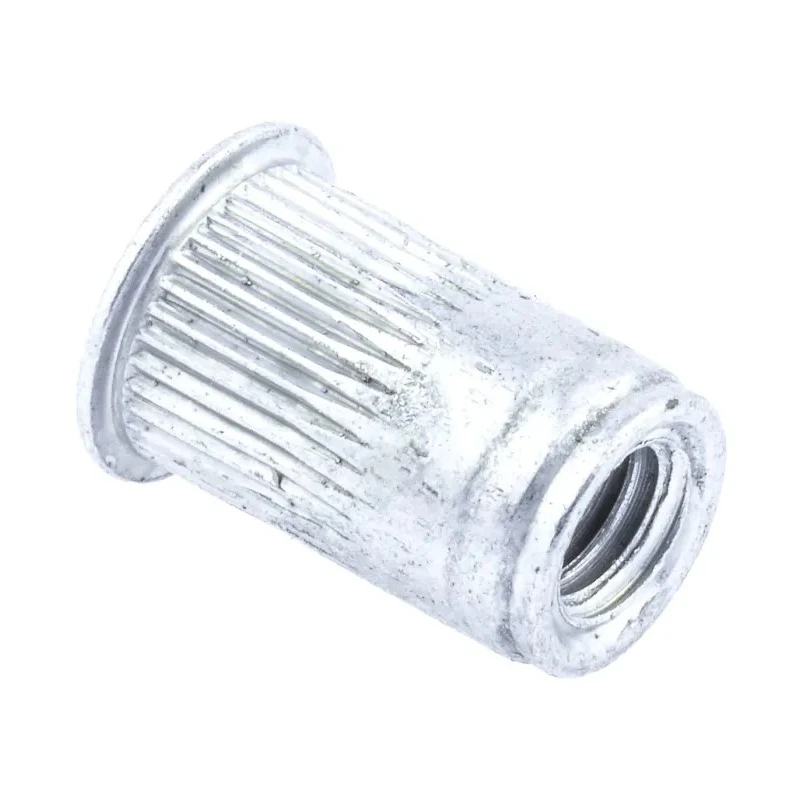

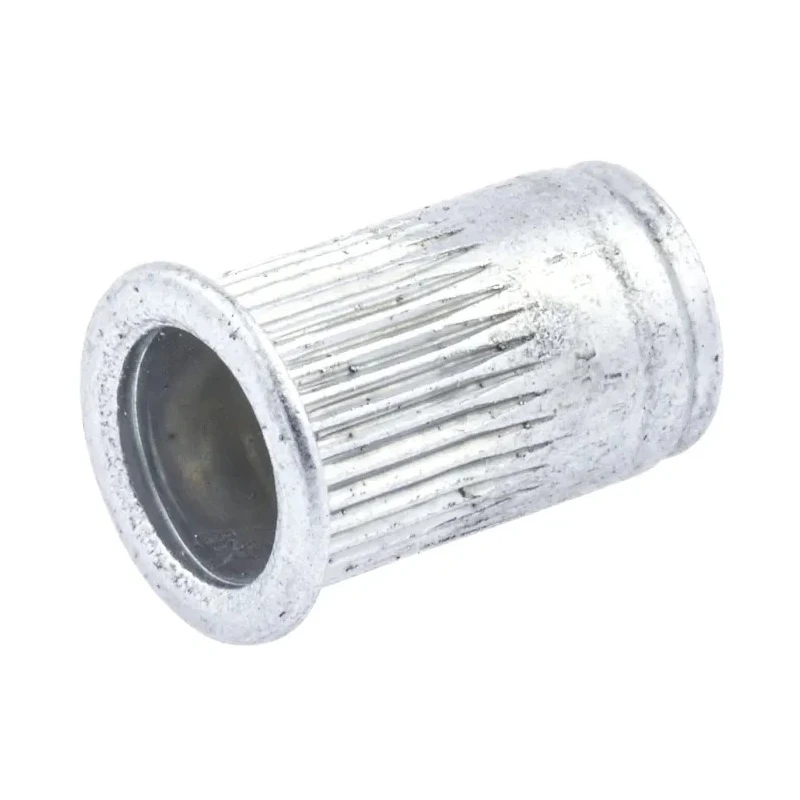

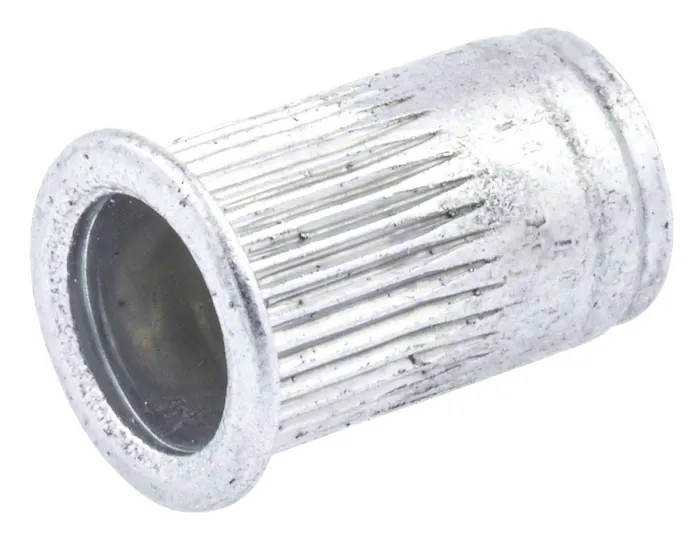

AVK Plain Flanged Threaded Insert M4, 7.87 mm Flange Diameter, 6.75 mm Fixing Hole Diameter, 7.75 mm Depth 194-405
Specifications
| Country of Origin | United States |
|---|---|
| Size | M4 |
| Brand | AVK |
| Model | 194-405 |
| Depth | 7.75mm |
| Finish | Plain |
| Outside diameter | 6.73mm |
| Sub Type | Flanged |
| Flange Diameter | 7.87mm |
| Standards/Approvals | RoHS |
| Fixing Hole Diameter | 6.75mm |
| Minimum Thickness of Material | 0.5mm |
| Maximum Thickness of Material | 2mm |
| AVK Plain, M5 Threaded Insert, 8.64mm diameter 7.6mm Depth 8mmBrand | AVK |
| Böllhoff Plain Stainless Steel Threaded Insert, 6.7 mm diameter 6 mm 11 mmBrand | Böllhoff |
Key Features
- The insert has a flange diameter of 7.87 mm ensuring secure fixing.
- The fixing hole diameter is 6.75 mm compatible with M4 screws.
- Depth of 7.75 mm accommodates material thicknesses up to 2 mm.
- Constructed with a plain finish optimal for various industrial applications.
- RoHS compliant and manufactured in the United States for quality assurance.
- Suitable for use in mechanical, fluid power, and tool fastening tasks.
- Small flanged low-profile version ideal for near-flush installation requirements.
- Larger flange accommodates out-of-round holes for better fitment.
Product Description
AVK 194-405 Plain Flanged Threaded Insert M4 is a precision-engineered fastening component designed for mechanical and fluid power industries. The insert features a flange diameter of 7.87 mm, a fixing hole diameter of 6.75 mm, and a depth of 7.75 mm, making it suitable for materials with thickness from 0.5 mm to 2 mm.
This threaded insert is finished with a plain surface offering reliable performance in sheet metal and panel fastener applications. The product is RoHS compliant, ensuring adherence to environmental regulations. Manufactured in the United States, it maintains high standards of quality and durability.
The insert is ideal for both near-flush mounting applications due to its low-profile flange and for installations involving out-of-round holes thanks to its larger flange variant. AVK also offers compatible tools for fixing, such as those included in kit stock no. 194-310 for M4, M5, and M6 inserts.
This product is commonly employed in industrial tooling, manufacturing, mechanical frameworks, and fluid power equipment assembly. Its versatile nature allows it to be used in a range of applications requiring secure, stable thread reinforcement in thin materials.
The insert features a precise 7.87 mm flange diameter for secure mounting. Fixing hole diameter of 6.75 mm matches standard M4 thread requirements. Depth of 7.75 mm allows for effective thread engagement. Plain finish suitable for various industrial environments.
RoHS compliant to meet international safety and environmental standards. Manufactured in the United States assuring premium quality. Compatible with AVK fixing tools for easy installation. Designed for sheet metal and panel fastening applications.
Explore a wide selection of industrial fasteners and accessories at EnvMart to complement this AVK threaded insert. Browse through high-quality Threaded Inserts selections to find the optimal fastening solutions for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The flange diameter of this insert is 7.87 mm, ensuring secure fixing.
The fixing hole diameter is 6.75 mm, which is compatible with M4 screws.
The depth of this model is 7.75 mm, accommodating material thicknesses from 0.5 mm to 2 mm.
This insert can accommodate a maximum thickness of 2 mm.
Yes, this threaded insert is RoHS compliant, ensuring adherence to environmental regulations.
It is manufactured in the United States, ensuring high standards of quality.
This insert is suitable for mechanical, fluid power, and tool fastening tasks.
The insert features a plain finish, making it optimal for various industrial applications.
The minimum thickness of material that this insert can accommodate is 0.5 mm.
The outside diameter of this threaded insert is 6.73 mm.
This threaded insert is classified as a flanged sub-type.
