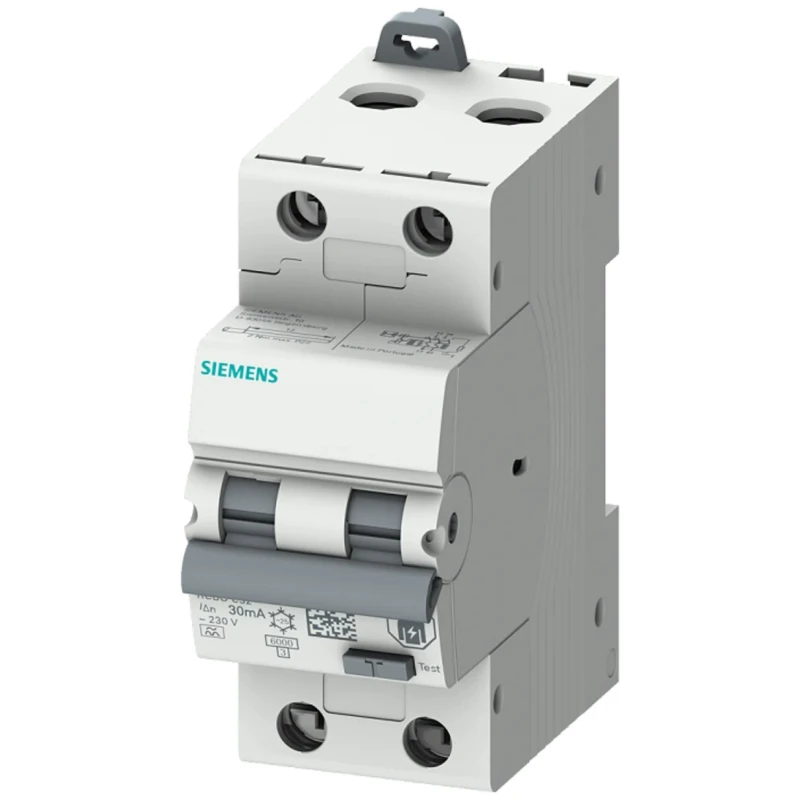

Siemens Residual Current Circuit Breaker with Overload Protection 16A Current Rating 2-Pole 30 mA Trip 5SU1326-7FP16

Siemens 5SU1326-7FP16 Residual Current Circuit Breaker (RCBO) with Overload Protection offers precise electrical safety control designed for general purpose and commercial electrical installations. It supports a current rating of 16A with a 2-pole configuration and trip sensitivity set at 30 mA, ensuring rapid response to residual currents and overloads.

The device operates at a rated AC voltage of 240V and incorporates a thermal magnetic tripping mechanism with Type C characteristics to effectively prevent electrical faults and protect connected equipment from damage. Its breaking capacity of 6kA provides robust fault-clearance capability under high short-circuit conditions.

Mounting is facilitated by a DIN rail system with secure screw terminals for reliable wiring connections. The earth leakage protection of Type A enables detection of AC and pulsating DC residual currents, extending protection measures beyond standard models.

Construction features include a compact form factor with dimensions of 90 mm height, 70 mm depth, and 53 mm width. The unit comes with an IP20 protection class, guarding internal components against solid objects and touch. Designed to meet environmental standards, the breaker is halogen free and silicon free, reducing harmful emissions in case of fire.

Compliance with internationally recognized certifications such as EAC, CE, RoHS, VDE, and CCC underscores the product's quality and safety assurance, suitable for industrial, commercial, and residential electrical systems. Made in Portugal, it supports sustainable use consistent with RS Better World Initiative claims for extended product life and reduced environmental impact.

Rated current: 16A at 240V AC. 2-pole design with 30 mA residual current trip sensitivity. Thermal magnetic Type C tripping characteristics. DIN rail mount with screw terminal type for ease of installation. Breaking capacity of 6kA for high fault tolerance.

Lever-type reset actuator for user-friendly operation. IP20 protection class for enhanced safety. Halogen-free and silicon-free construction. Certified to EAC, CE, RoHS, VDE, and CCC standards. Explore more world-class Siemens electrical protection devices in EnvMart's comprehensive catalog for industrial and commercial applications.
