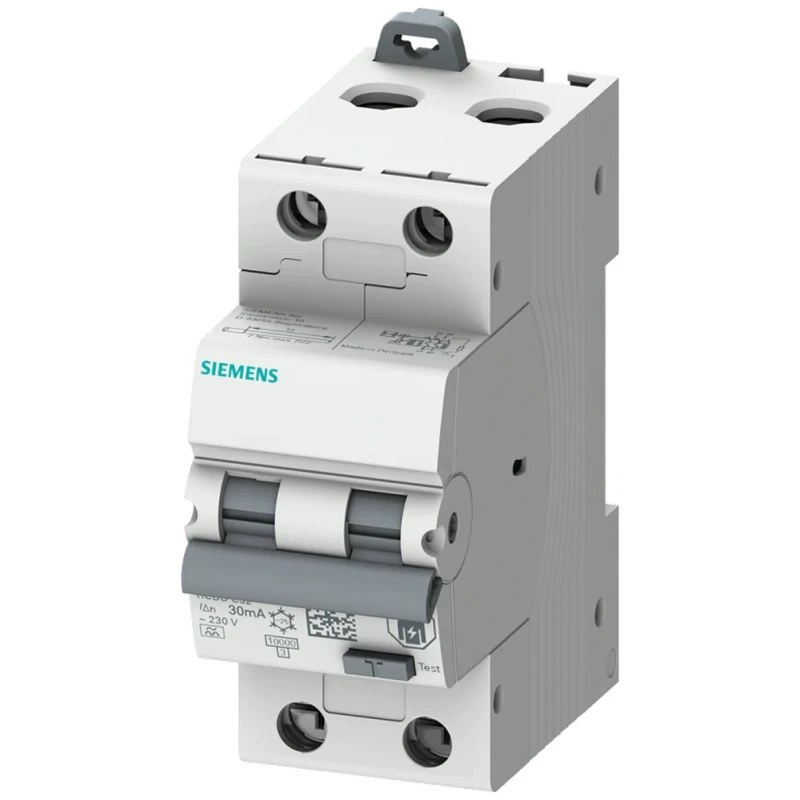

Siemens Residual Current Circuit Breaker with Overload Protection 20A 2-Pole 30 mA Trip Sensitivity Sentron 5SU1324-6FP20

Siemens 5SU1324-6FP20 Residual Current Circuit Breaker with Overload Protection is a high-quality circuit breaker designed for electrical safety in residential, commercial, and industrial applications. It combines residual current protection with overload tripping to guard electrical installations against ground faults and overload conditions effectively.

This RCBO features a current rating of 20A and operates at an AC voltage of 240V, making it versatile for general purpose electrical networks. The device is configured as a 2-pole breaker and trip sensitivity set at 30 mA provides precise earth leakage detection.

The tripping mechanism employs a thermal magnetic principle, delivering reliable and prompt disconnection to protect wiring and equipment. The device has a breaking capacity of 10kA, enabling it to safely interrupt high fault currents without damage.

Installation is simplified with mounting on a standard DIN rail and connection achieved via secure screw terminals. The reset actuator is a lever type, offering an intuitive manual reset after tripping events.

Constructed with halogen-free and silicon-free materials, this breaker supports enhanced environmental compliance. Dimensions are compact with a height of 90 mm, width of 53 mm, and depth of 70 mm, allowing integration into standard electrical panels.

It meets international safety and performance standards including CCC, CE, EAC, RoHS, and VDE certifications, assuring compliance and quality. The device is produced in Portugal, reflecting Siemens' global manufacturing standards.

Designed with thermal magnetic tripping mechanism for reliable protection. Supports mounting on standard DIN rail for easy installation. Rated AC voltage of 240V AC suitable for general purpose use. Breaking capacity of 10kA ensures high fault tolerance.

Equipped with screw terminal type for secure connections. Conforms to multiple standards including CCC, CE, EAC, RoHS, and VDE. Compact dimensions: 90mm height, 53mm width, and 70mm depth. Features Type A earth leakage protection with Type B tripping characteristics.

Reset actuator is a lever type, enhancing operational convenience. Halogen and silicon free construction supports environmental safety.

This Residual Current Circuit Breaker is well suited for industrial, commercial, and residential electrical systems requiring robust protection against earth fault currents and overloads. For more Siemens products and electrical protection devices, explore the full range at EnvMart.
