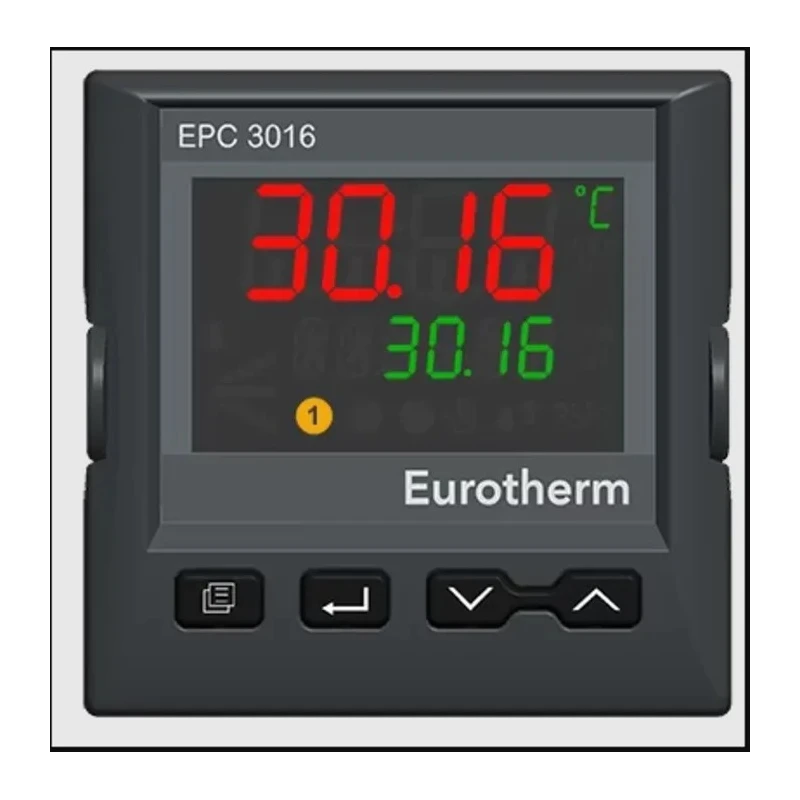

Eurotherm Panel Mount PID Controller 1 Input Logic/SSR, 2 Relay 230V AC EPC3016

Eurotherm EPC3016 Panel Mount PID Controller delivers advanced thermal control for industrial and manufacturing processes. The single loop PID controller features 1 versatile input compatible with thermocouple, current, or voltage signals, and offers output via logic/SSR and 2 relays, making it adaptable to various automation requirements.

This PID controller operates with a 230V AC max supply voltage, enabling reliable power across settings. Designed for panel mounting, it boasts an IP65 ingress protection rating, safeguarding it against dust and water ingress in challenging industrial environments.

Equipped with a clear LCD display, the controller offers straightforward reading and configuration of temperature and process parameters. Its compact form factor with 101mm length, 48mm width, and 90mm panel depth enables easy integration into control panels.

The EPC3016 supports fast and precise temperature response through enhanced Eurotherm PID algorithms with a cutback function that reduces overshoot. It meets high-precision accuracy requirements up to aerospace standards (AMS2750 and CQI 9), ensuring consistent process quality.

Connectivity is enhanced by native high-speed Ethernet with an RJ45 connector, facilitating Industrial Internet of Things (IIoT) and Industry 4.0 applications via Modbus, Ethernet/IP, and BACNet protocols. The range is Achilles Level 1 certified to withstand cyberattack resilience.

Additional features include up to 20 configurable ramp or soak program profiles, enabling complex thermal process control and optimization of production yields. Factory Mutual approved temperature limit options provide enhanced safety and compliance.

Equipped with 1 input supporting thermocouple, current, or voltage signals. Provides logic/SSR output plus 2 relay outputs for versatile control integration. Designed with panel mount IP65-rated enclosure for harsh environment durability.

Features LCD display for easy monitoring and control configuration. Includes native high-speed Ethernet interface for Industry 4.0 integration. Supports multiple industrial communication protocols including Modbus and BACNet.

Precision control with aerospace-grade accuracy standards compliance. Offers 20 ramp or soak program profiles for advanced process management. Factory Mutual approved temperature limit option available.

Eurotherm PID Controllers are well suited for applications in industrial manufacturing, laboratory testing, water treatment, HVAC systems, and other temperature-critical processes requiring precise, reliable, and network-enabled control solutions. This product supports digitized process control architectures in Automation and Control Gear systems.
