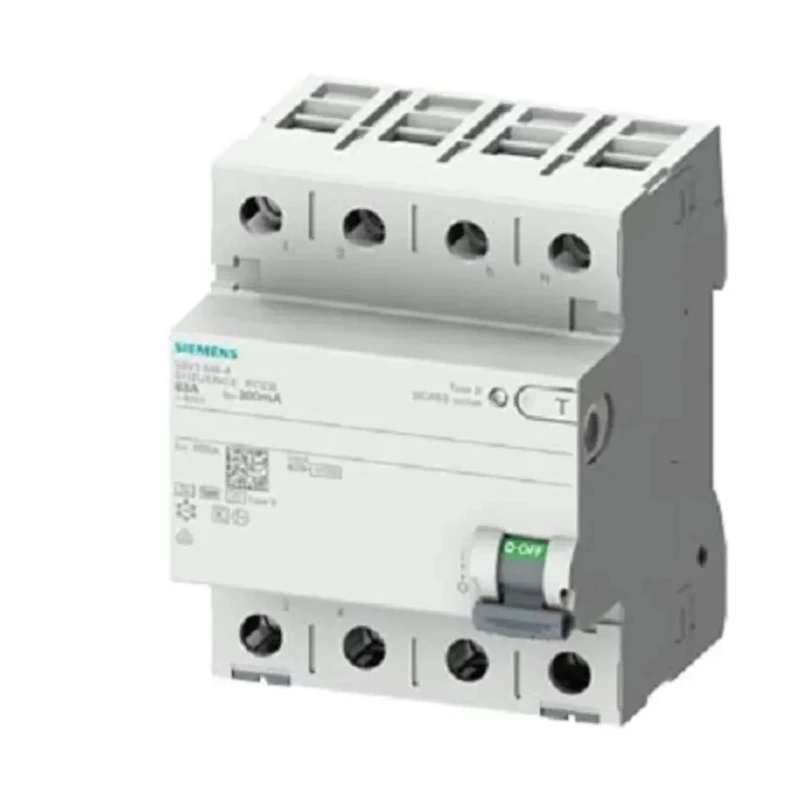

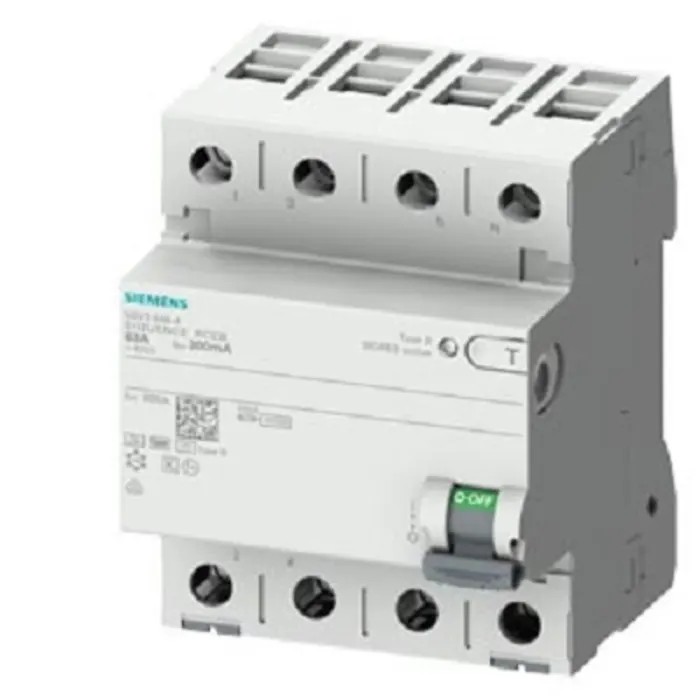

Siemens Residual Current Circuit Breaker SENTRON 5SV3746-5 63A 4-Pole 500 mA Type B 0.8 kA 400V AC

Free Delivery in India | Lowest Global Shipping Charges

Siemens Residual Current Circuit Breaker SENTRON 5SV3746-5 63A 4-Pole 500 mA Type B 0.8 kA 400V AC

Name: Siemens Residual Current Circuit Breaker SENTRON 5SV3746-5 63A 4-Pole 500 mA Type B 0.8 kA 400V AC
Brand: Siemens
SKU: 115084
Price: 1844.97 USD
Availability: InStock



Category Residual Current Circuit Breaker Brand Siemens Condition New

Specifications

Country of Origin	Germany
Range	SENTRON
Brand	Siemens
Height	90mm
Model	5SV3746-5
Depth	70mm
Width	72mm
Mount Type	DIN Rail
Current Rating	63A
Series	SENTRON 5SV3xxx
Terminal type	Screw
Breaking Capacity	0.8kA
Number of Poles	4
Standards/Approvals	IEC 61008-1
Rated AC Voltage	400V ac
Tripping Characteristics	Type B
Better World Claim	Extended Product Life
Reset Actuator Type	Lever
Trip Sensitivity	500mA
Break Time	Short
Earth Leakage Protection Type	Type B

Key Features

Designed for DIN Rail mounting with screw terminal type for secure connections.
Trip sensitivity set at 500 mA ensuring reliable earth leakage protection.
Rated for 400V AC voltage and a breaking capacity of 0.8 kA.
Compact dimensions of 90mm height, 72mm width, and 70mm depth for efficient panel installation.
Mechanical service life supports up to 10,000 switching cycles for durability.
Short break time enhances safety during fault conditions.
Reset actuator is lever type for easy manual operation.
Complies with IEC 61008-1 standards ensuring high quality and safety.

Product Description

Siemens 5SV3746-5 Residual Current Circuit Breaker is part of the SENTRON 5SV3xxx series, designed to provide robust electrical protection in industrial, commercial, and residential installations. Featuring a current rating of 63A and 4 poles, this RCCB is engineered to maintain safety by quickly disconnecting supply to prevent electrical hazards.

The device operates at a rated AC voltage of 400V and exhibits a breaking capacity of 0.8 kA, capable of handling fault currents effectively. Its trip sensitivity is calibrated at 500 mA with Type B tripping characteristics, which offers protection against AC, pulsating DC, and smooth DC residual currents, making it suitable for circuits with electronic loads or frequency converters.

Constructed for easy DIN Rail mounting, it ensures a reliable screw terminal connection. The mechanical life expectancy reaches 10,000 switching cycles, highlighting its durability for long-term use. The compact size with 90mm height, 72mm width, and 70mm depth allows for efficient panel space utilization.

Safety is enhanced by short break time and the lever-type reset actuator design promotes convenient manual resets. The circuit breaker is compliant with IEC 61008-1 standard, affirming its quality and adherence to international safety norms.

Manufactured in Germany, this RCCB also incorporates eco-friendly features under the Better World Claim, including an extended product life that supports sustainability. It is ideally suited for industrial automation, electrical distribution systems, HVAC applications, water treatment plants, and commercial buildings requiring earth leakage protection.

Designed for DIN Rail mounting with secure screw terminals. Robust 63A current rating for medium load applications. Trip sensitivity of 500 mA for dependable leakage detection. Supports Type B tripping characteristics, safe for electronic and mixed loads.

Compact dimensions save space in electrical panels. Durable mechanical life with 10,000 cycles. IEC 61008-1 compliant for assured safety and performance. Lever reset actuator for easy manual control. Manufactured in Germany with sustainability features.

Breaking capacity of 0.8 kA for effective fault interruption. Explore the Siemens SENTRON range on EnvMart for professional-grade circuit breakers and electrical safety solutions tailored to your industrial and commercial needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model has a current rating of 63A, making it suitable for medium load applications.

The trip sensitivity is set at 500 mA, ensuring reliable earth leakage protection.

It has a breaking capacity of 0.8 kA, which allows it to effectively handle fault currents.

The dimensions are 90mm in height, 72mm in width, and 70mm in depth, allowing for efficient panel installation.

It is designed for DIN Rail mounting, providing secure screw terminal connections.

This RCCB features Type B tripping characteristics, suitable for circuits with electronic loads and mixed loads.

This model has 4 poles, enhancing its capability to provide robust electrical protection.

It complies with IEC 61008-1 standards, ensuring high quality and safety in electrical installations.

The reset actuator is lever type, allowing for easy manual operation.

This circuit breaker is manufactured in Germany, reflecting its adherence to high manufacturing standards.

It supports a mechanical service life of up to 10,000 switching cycles, indicating its durability for long-term use.

It is ideally suited for industrial automation, electrical distribution systems, HVAC applications, and water treatment plants requiring earth leakage protection.
