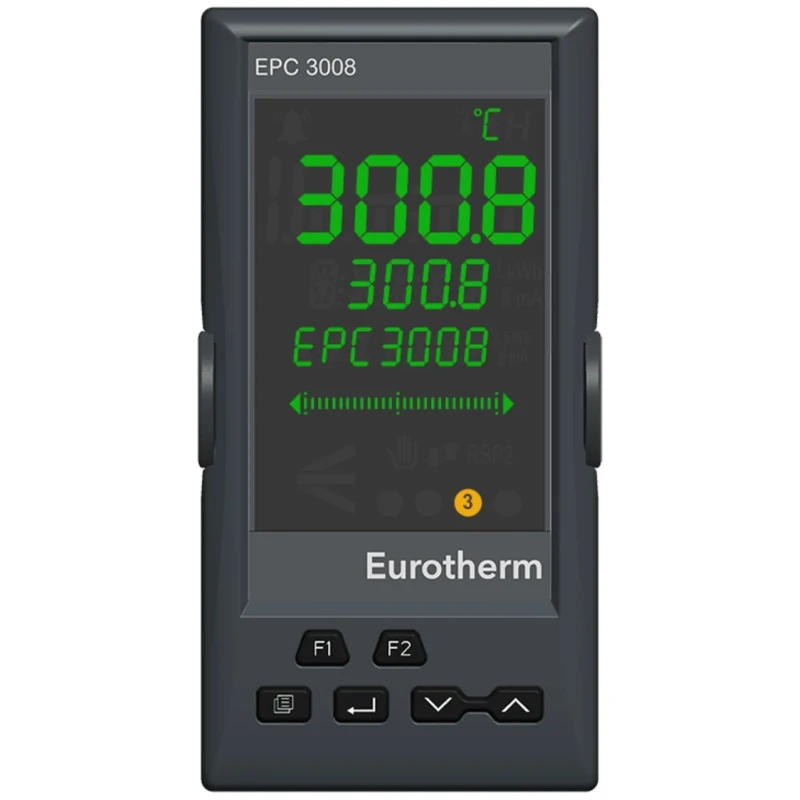

Eurotherm Panel PID Controller DC 24V, 1 Input 1 Relay, LCD Display, IP65 EPC3008

Eurotherm EPC3008 is a panel mounted, programmable single loop PID controller designed for precise and repeatable control in thermal and other process applications. Operating at DC 24V with 1 input and 1 relay output, it offers robust performance with an LCD display for easy monitoring.

Built to meet stringent industrial standards, the EPC3008 features an IP65 rated enclosure ensuring reliable protection against dust and water ingress, making it suitable for industrial, manufacturing, HVAC, and laboratory automation environments.

The controller supports multiple input types including voltage, thermocouple, and current, allowing versatile application across different process signals. Its control system utilizes enhanced Eurotherm PID algorithms with cutback function, enabling fast response times and minimal overshoot.

Connectivity is enhanced with fast Ethernet via an RJ45 connector, supporting Modbus, Ethernet/IP, and BACNet protocols for seamless integration into Industry 4.0 and Industrial Internet of Things (IIoT) systems. Additionally, it is certified to Achilles Level 1 for cyber-security resilience, ensuring safe and reliable operation in digitalized production setups.

Physical dimensions allow easy panel mounting with a compact form factor of 101mm length, 48mm width, and 90mm depth. The device employs screw terminals for secure and straightforward installation. Operating temperature ranges from 0°C to 55°C, suitable for varied industrial conditions.

The Eurotherm EPC3008 PID controller is RoHS compliant and includes precision functionality meeting aerospace quality standards such as AMS2750 and CQI-9. It further supports advanced features such as wireable function blocks for math, logic, and control, along with up to 20 ramp/soak programming profiles.

Equipped with an LCD display for clear monitoring and control. Designed for panel mounting with an IP65 rating for ingress protection. Supports input types including voltage, thermocouple, and current. Complies with RoHS standards and meets industrial accuracy requirements.

Operates within a temperature range of 0°C to 55°C for diverse industrial environments. Includes fast Ethernet connectivity with RJ45 for IIoT and Industry 4.0 applications. Features screw terminal connections for secure wiring.

Compact dimensions: 101mm length, 48mm width, and 90mm panel depth. Highly configurable with native high-speed Ethernet and cyber-attack resilience certified to Achilles Level 1.

This PID controller is ideal for industrial automation, process control in manufacturing, laboratory instrumentation, and HVAC systems. Its compliance certifications and advanced features make it a reliable solution for temperature control in critical and digitized industrial environments.
