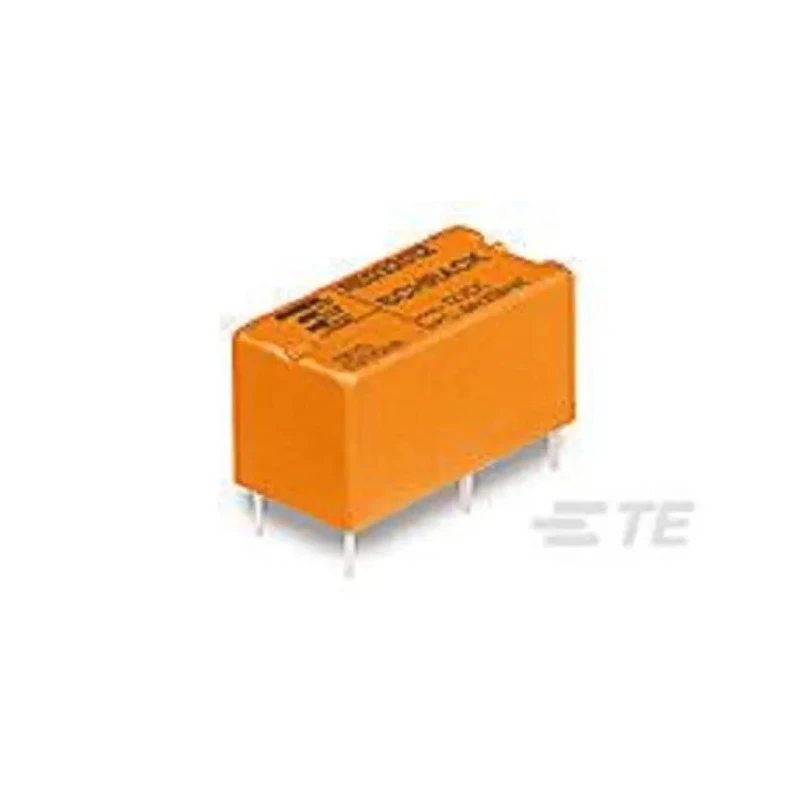

TE Connectivity PCB Monostable Relay 5V DC Coil 6A Switching Current SPST 2-1416010-3
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Height | 15mm |
| Length | 20mm |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Solder |
| Contact Resistance | 50mΩ |
| Standards/Approvals | UL, RoHS |
| Coil Resistance | 100Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 400mW |
Key Features
- Single-pole single-throw (SPST) contact configuration designed for PCB mounting.
- Supports switching voltages up to 250V AC and 30V DC.
- Coil resistance of 100Ω and coil power consumption of 400mW ensures low energy operation.
- Compact dimensions of 20mm length, 10mm width, and 15mm height.
- Contacts made from silver alloy with a contact resistance of just 50mΩ.
- Operates efficiently within a temperature range of -40°C to 85°C.
- Complies with UL and RoHS standards for safety and environmental compliance.
- Ideal for electrical, automation, and signal conditioning applications.
Product Description
TE Connectivity 2-1416010-3 PCB Monostable Relay is engineered for precise and dependable switching in industrial and electrical systems. Featuring a 5V DC coil voltage and a 6A switching current, it offers effective control in a compact footprint suitable for printed circuit boards.
This relay utilizes a single-pole single-throw (SPST) contact configuration with silver alloy contacts, providing low contact resistance of 50mΩ for minimal signal loss. Its switching voltage ratings are 250V AC and 30V DC, suitable for various power relay functions.
The coil operates at 400mW power consumption with a resistance of 100Ω, minimizing energy use. Designed to function reliably in harsh environments, the relay has an operating temperature range of -40°C to 85°C and is UL and RoHS certified, ensuring safety and compliance with industry standards.
Compact dimensions of 20mm x 10mm x 15mm make installation on PCBs straightforward without occupying excess space. The solder-type terminals facilitate secure and reliable connections.
This product is ideal for automation, electrical control systems, power switching, and signal conditioning applications in industries such as manufacturing, HVAC, and industrial automation.
Single-pole single-throw (SPST) contact configuration designed for PCB mounting. Supports switching voltages up to 250V AC and 30V DC. Coil voltage of 5V DC with 100Ω resistance and 400mW power rating. Compact dimensions: 20mm length, 10mm width, 15mm height.
Silver alloy contacts with 50mΩ contact resistance for optimal performance. Operating temperature range from -40°C to 85°C for durable usage. Compliance with UL and RoHS standards for safety and environmental protection.
Explore further TE Connectivity relays and power control devices at EnvMart for robust industrial and electrical solutions.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a coil voltage of 5V DC.
It can handle a maximum switching current of 6A.
The relay has compact dimensions of 20mm in length, 10mm in width, and 15mm in height.
It features a single-pole single-throw (SPST) contact configuration.
This unit is equipped with solder-type terminals for secure connections.
The contact resistance is 50mΩ, which helps minimize signal loss.
It operates efficiently within a temperature range of -40°C to 85°C.
It supports switching voltages up to 250V AC and 30V DC.
The coil resistance is 100Ω.
The coil power consumption is rated at 400mW.
Yes, it complies with UL and RoHS standards for safety and environmental compliance.
The relay is manufactured in the Czech Republic.
