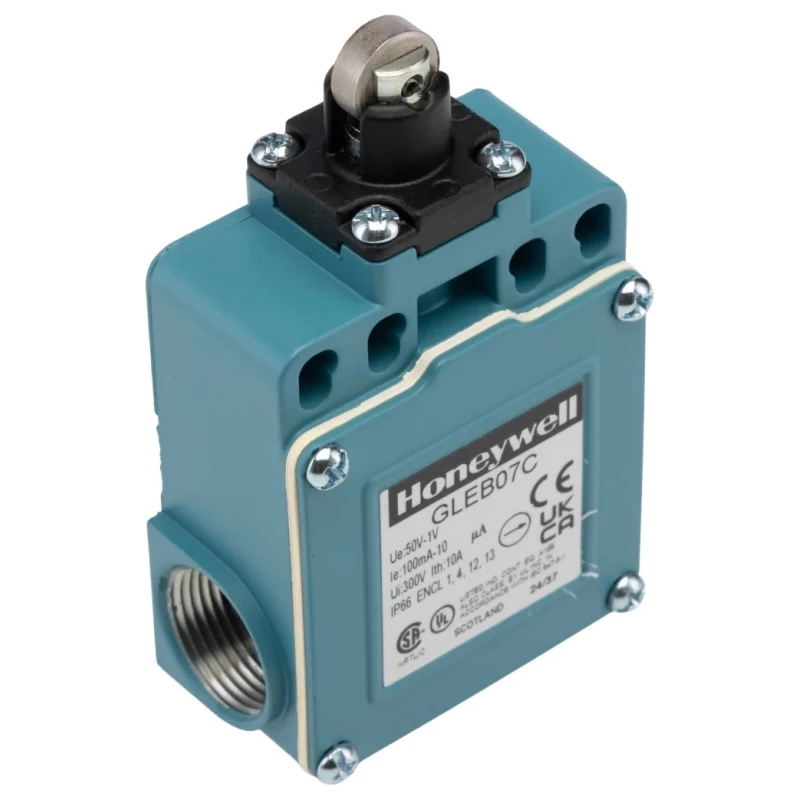

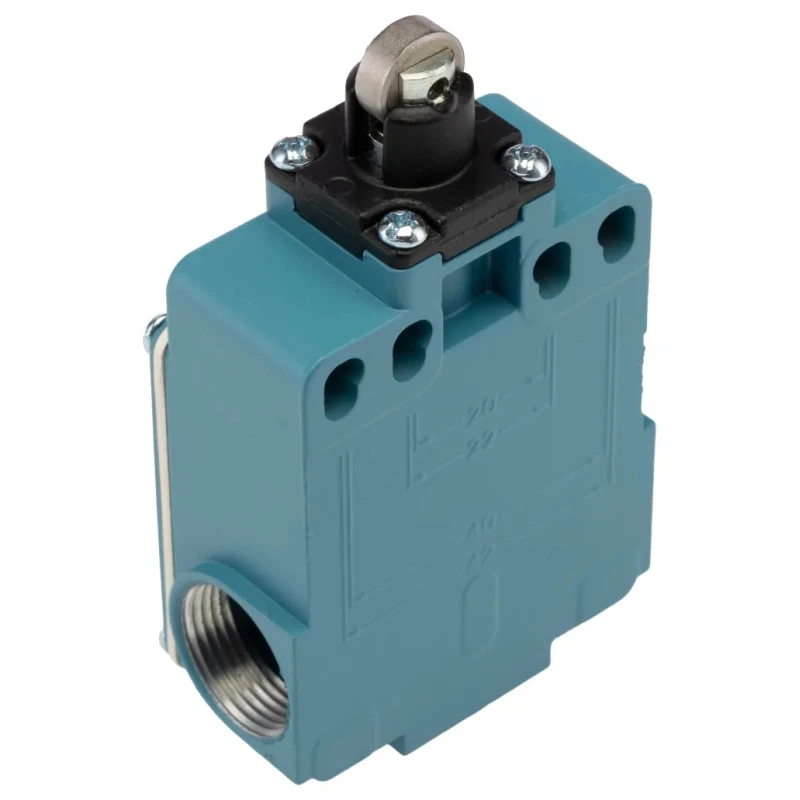

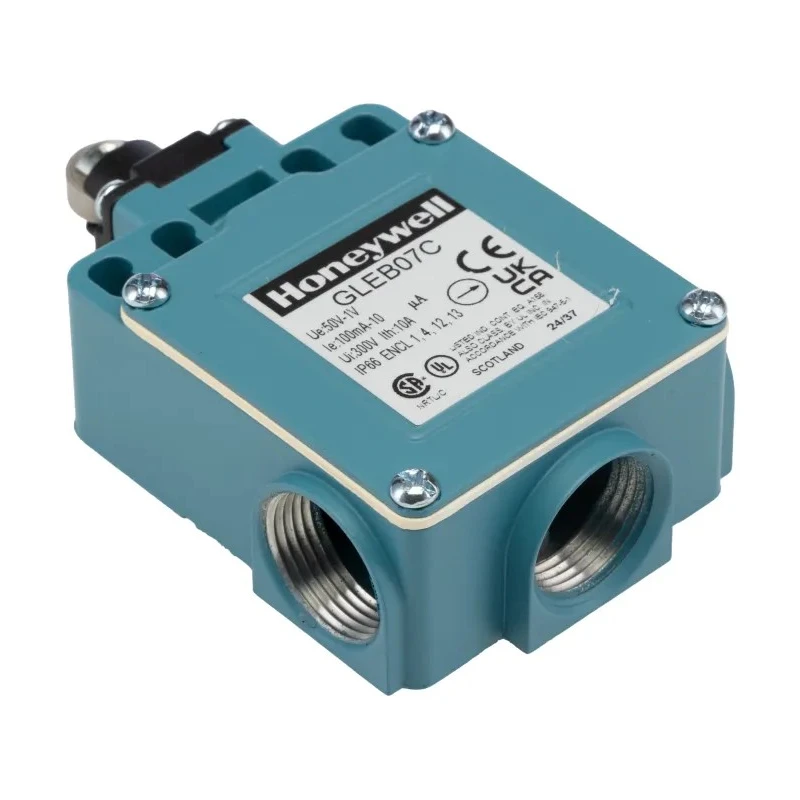

Honeywell Technologies GLE Series Plunger Limit Switch 1 NO/1 NC Snap Action Contact 24V DC 50V AC Die Cast Zinc Epoxy IP67

Honeywell Technologies GLEB07C is a GLE Series plunger limit switch designed for industrial and automation applications requiring reliable mechanical position sensing and robust environmental protection. The device features a die cast zinc epoxy coated housing rated at IP67, providing exceptional resistance to corrosion, dust, and water ingress, suitable for harsh industrial environments.

The switch incorporates a plunger actuator with snap action contacts arranged as 1 Normally Open (NO) and 1 Normally Closed (NC), enabling versatile control logic integration. It supports switching voltages of 24V DC and 50V AC, covering a broad range of control circuit requirements.

With a mechanical life expectancy of 10 million cycles and an operating force of 16N, this limit switch ensures high durability and consistent performance even in demanding automation systems. The device operates effectively across a wide temperature range from -40°C up to +85°C, making it usable in varied ambient conditions.

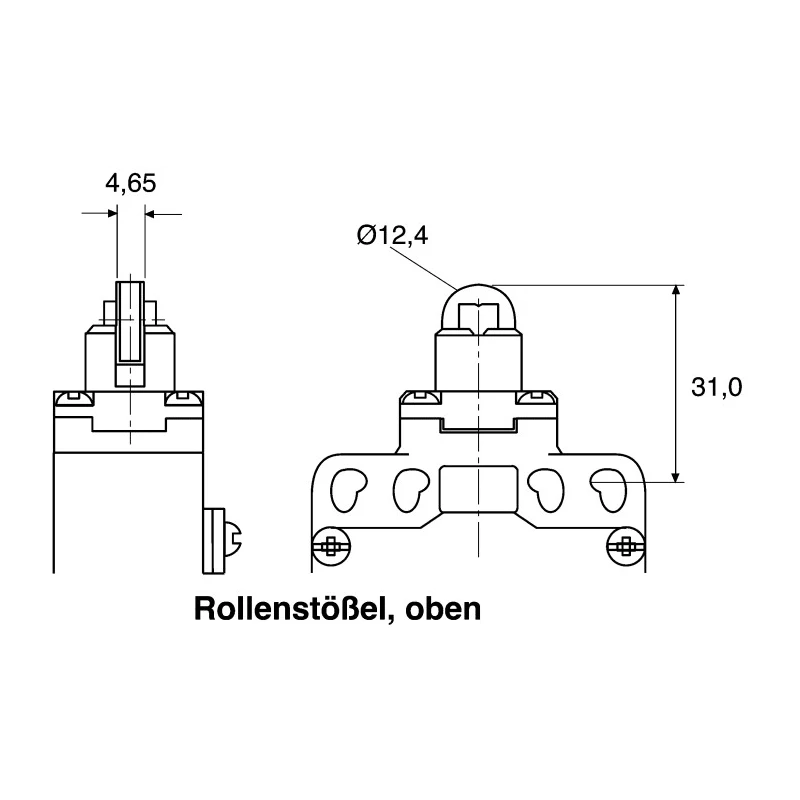

Installation is simplified through screw terminal connections and a PG13.5 conduit entry, compatible with standard industrial cable glands for secure and safe cable routing. Dimensionally compact, it measures 60mm in length, 65mm in width, and 30mm in depth, fitting standard mounting arrangements.

This limit switch complies with multiple international standards including UL, cURus, IEC/EN 60947-5-1, CCC, CE, and CSA, ensuring safety and interoperability in control systems. Common industrial applications include conveyor end-of-travel detection, gate and door interlocks, position feedback in automated assembly, and harsh environment monitoring.

Robust die cast zinc epoxy coated housing offers superior corrosion resistance. Compact plunger actuator enables precise mechanical position detection. Rated for switching at 24V DC and 50V AC control circuits. IP67 ingress protection ensures reliability in wet or dust-prone environments.

High mechanical durability with 10 million operating cycles. Wide operating temperature range from -40 °C to 85 °C for diverse applications. Screw terminal connections simplify installation and wiring. Certified to UL, cURus, IEC/EN 60947-5-1, CCC, CE, and CSA standards.

PG13.5 conduit entry accepts standard industrial cable glands for secure wiring. Explore the range of Limit Switches and control devices at EnvMart for industrial automation and control system needs.
