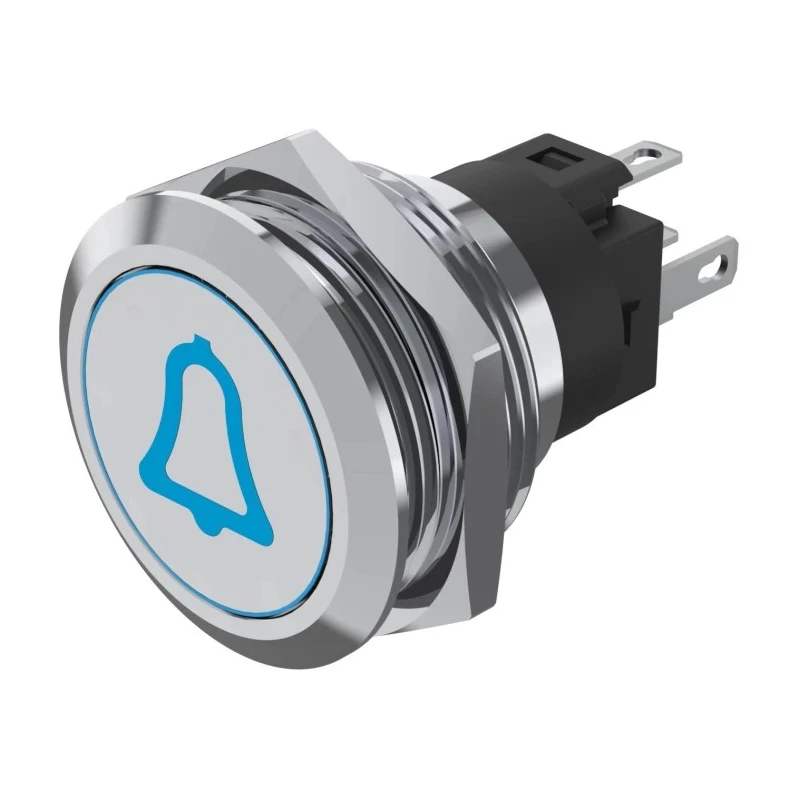

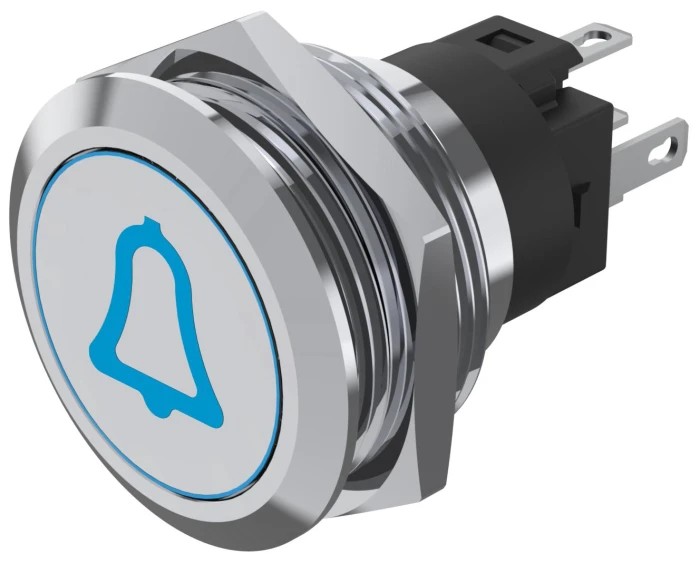

EAO Illuminated Push Button Switch Panel Mount SPDT Blue LED Momentary 31 x 31 mm Cutout IP65 IP67 240 V dc 82-6151.1A24.B005



Category Push Button Switch Brand EAO Condition New

Specifications

Country of Origin	Switzerland
Brand	EAO
Model	82-6151.1A24.B005
IP Rating	IP65, IP67
Mount Type	Panel
Series	82
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Switch Configuration	Momentary
Minimum Operating Temperature	-30°C
Panel Cutout Size	31 x 31 mm
Standards/Approvals	CCC, CB, cUL, UL
LED Colour	Blue
Switch Operation	Momentary
Actuator Colour	Silver
Contact DC Voltage	240V dc
Switch Contact Current	3A
Contact AC Voltage	240V ac
Legend	Bell (Symbol)

Key Features

This push button switch features a 31 x 31 mm panel cutout size with a silver actuator.
It operates at 240 V dc/ac with a maximum contact current of 3A.
The switch is momentary type with a bell symbol legend.
It is constructed for durability with stainless steel and offers vandal-resistant IK10 impact resistance.
The device is suitable for industrial, building, and medical equipment applications requiring robust panel switching solutions.
Offers excellent tactile feedback and a long service life exceeding one million cycles.
Suitable for exposed public environments including ticketing and vending machines.

Product Description

EAO 82-6151.1A24.B005 is a high-quality illuminated push button switch designed for panel mounting with a standard 31 x 31 mm cutout size. Featuring a durable silver actuator and blue LED illumination, this momentary SPDT switch operates at 240 V dc and ac, providing reliable performance in demanding environments.

The switch housing offers IP65 and IP67 front protection, ensuring resistance against dust and water ingress, making it suitable for both indoor and outdoor use. It also has IK10 vandal-resistant impact resistance, ideal for exposed public areas such as ticketing and vending machines.

Constructed with stainless steel 304 and an anodised aluminium or brass finish, this switch is robust and built to last, providing excellent tactile feedback and a long operational lifecycle of over one million cycles. The bell symbol on the actuator lens clearly indicates its function in control and signaling applications.

Typical applications include industrial machinery, factory equipment, building management systems, access control, audio-video equipment, medical apparatus, and food industry environments. The switch complies with industry standards including CCC, CB, cUL, and UL certifications for safety and reliability.

This push button switch features a 31 x 31 mm panel cutout size with a silver actuator. It operates at 240 V dc/ac with a maximum contact current of 3A. The switch is momentary type with a bell symbol legend. It is constructed for durability with stainless steel and offers vandal-resistant IK10 impact resistance.

The device is suitable for industrial, building, and medical equipment applications requiring robust panel switching solutions. Offers excellent tactile feedback and a long service life exceeding one million cycles. Suitable for exposed public environments including ticketing and vending machines.

Explore more EAO Push Button Switches and related electrical control devices at EnvMart to find tailored solutions for your industrial and commercial needs.
