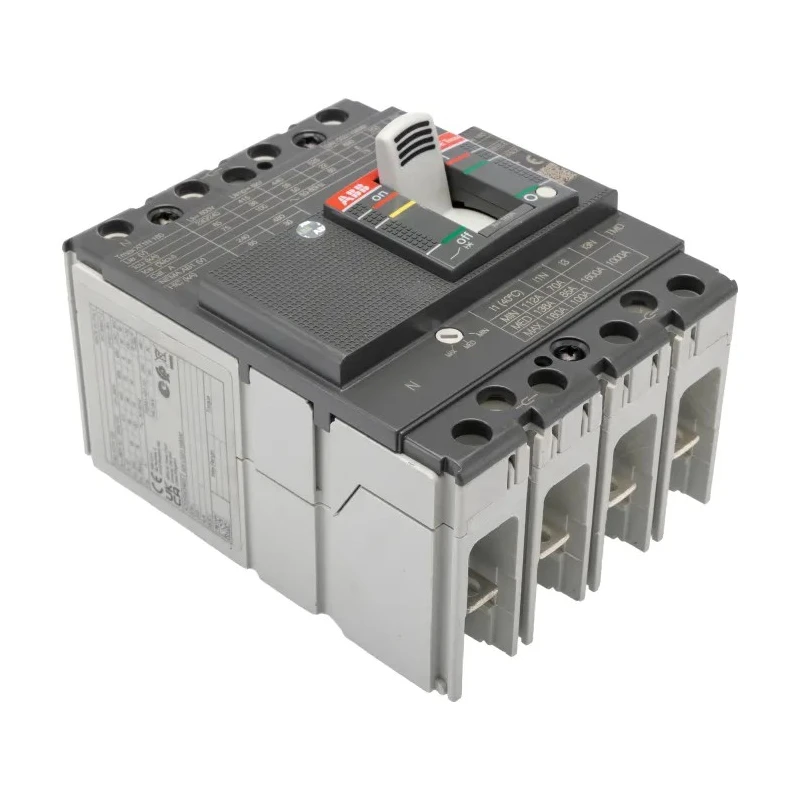

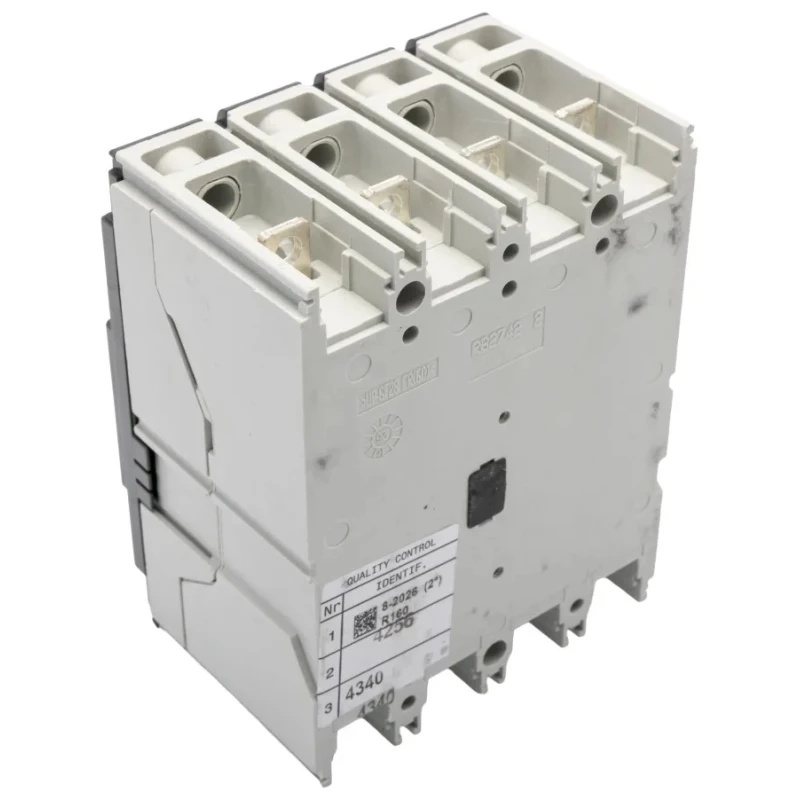

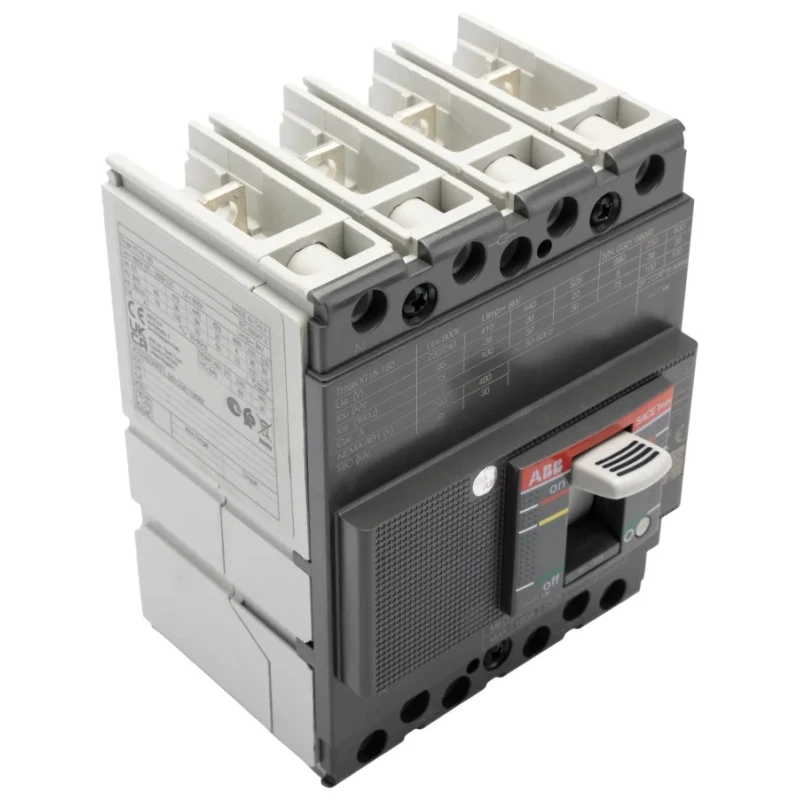

ABB Tmax XT Molded Case Circuit Breaker 4-Pole 160A 690V AC 500V DC Thermomagnetic 1SDA067426R1 XT1N 160 TMD 160A 3P+N FF
Specifications
| Country of Origin | Italy |
|---|---|
| Range | Tmax XT |
| Brand | ABB |
| Height | 130mm |
| Model | 1SDA067426R1 XT1N 160 TMD 160A 3P+N FF |
| Depth | 70mm |
| Width | 101.6mm |
| Mount Type | Fixed |
| Current Rating | 160A |
| Series | 1SDA06 |
| Terminal type | Screw |
| Breaking Capacity | 5kA |
| Number of Poles | 4 |
| Standards/Approvals | IEC |
| Rated AC Voltage | 690V ac |
| Rated DC Voltage | 500V dc |
| Tripping Mechanism | Thermomagnetic |
| Break Time | Instantaneous |
Key Features
- Designed for industrial three-phase systems with an additional neutral pole for selective isolation.
- Offers 5 kA breaking capacity suitable for moderate fault clearing.
- Operates up to 690V AC and compatible with 500V DC applications.
- Features screw terminal connections for secure wiring.
- Thermomagnetic trip mechanism ensures overload and short-circuit protection.
- Compact form factor with a depth of 70mm suits confined panel spaces.
- Constructed to IEC standards for reliable industrial use.
- Intended for fixed mounting in control panels and distribution assemblies.
Product Description
ABB 1SDA067426R1 XT1N 160 TMD 160A 3P+N FF Molded Case Circuit Breaker is part of the Tmax XT series designed for industrial and commercial electrical protection applications. This fixed mounting device supports four poles including a neutral pole, rated for 160 amps current and a breaking capacity of 5 kiloamperes. It operates reliably at 690 volts AC and can handle DC voltages up to 500 volts, making it suitable for both AC and DC supply systems.
The breaker uses a combined thermomagnetic trip mechanism to provide effective overload and short-circuit protection. Its screw terminal type connections ensure secure and stable conductor connections essential for high safety standards in industrial environments. The compact dimensions facilitate installation in restricted panel spaces, with height 130mm, width 101.6mm, and depth 70mm, conforming to IEC construction and performance standards.
This breaker is ideal for motor control and protection, distribution board applications in manufacturing and industrial sites, particularly where neutral isolation is required. It is commonly applied in automation panels, service-entrance switching, and DC supply isolation up to 500 volts.
Thermomagnetic tripping offers dual protection against overloads and short circuits. Rated for continuous operation at 160A for steady current handling. Breaking capacity of 5kA supports moderate fault clearing scenarios.
Suitable for industrial control panels and distribution assemblies. Complies with IEC standards ensuring safety and reliability. Compact fixed mounting format enables versatile panel installation. Screw terminal connections provide safe and reliable wiring.
ABB products are recognized for quality and performance in electrical distribution and protection. For users seeking robust circuit protection for industrial applications, this molded case breaker offers a reliable solution. Explore related ABB Circuit Breakers and electrical protection devices on EnvMart for comprehensive system setups.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This molded case circuit breaker has a current rating of 160A.
It has a breaking capacity of 5kA, suitable for moderate fault clearing scenarios.
This circuit breaker operates at a rated voltage of 690V AC and is compatible with 500V DC applications.
It features a total of 4 poles, including an additional neutral pole for selective isolation.
It utilizes a thermomagnetic trip mechanism for effective overload and short-circuit protection.
The dimensions are 130mm in height, 101.6mm in width, and 70mm in depth.
It features screw terminal connections for secure wiring.
Yes, it is designed for fixed mounting in control panels and distribution assemblies.
It complies with IEC standards, ensuring reliability for industrial applications.
It is ideal for motor control, distribution board applications, and automation panels.
The country of origin for this product is Italy.
This circuit breaker is part of the Tmax XT series.
