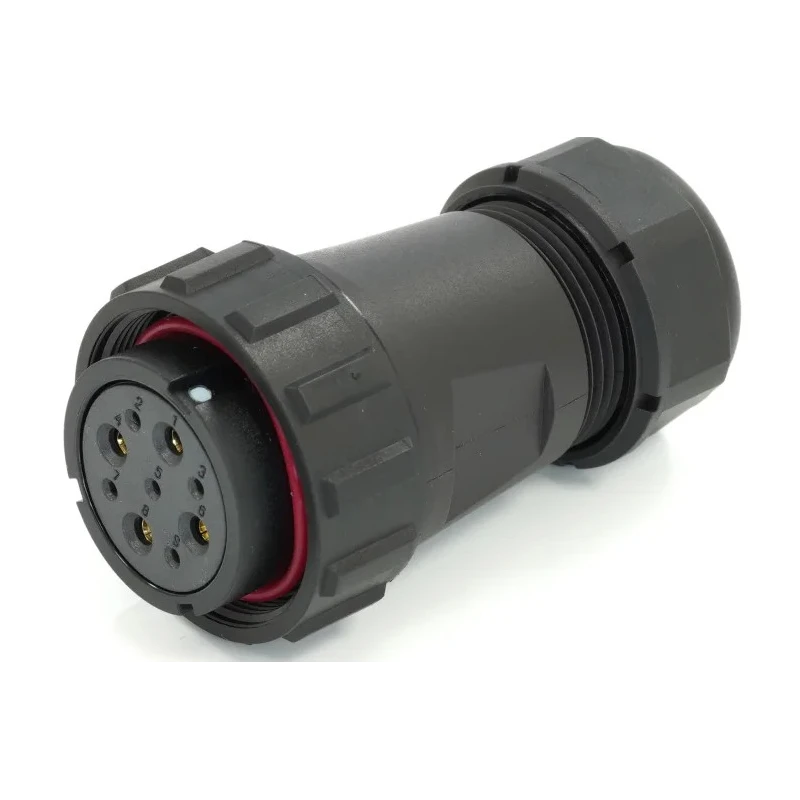

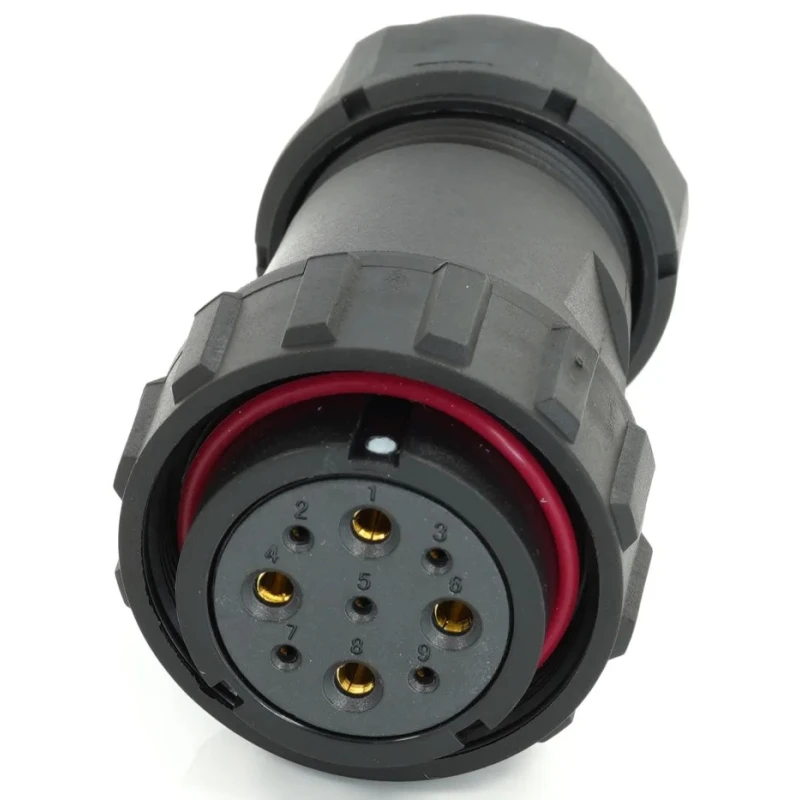

RS PRO Industrial Circular Connector Cable Mount Plug, Female, 9 Contacts, 29 mm, IP68, Threaded, 500V, 25.5A 233-8353
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 500V |
| Brand | RS PRO |
| Orientation | Straight |
| Current | 25, 5A |
| Model | 233-8353 |
| IP Rating | IP68 |
| Mount Type | Cable |
| Housing Material | Nylon, Polycarbonate |
| Contact Material | Brass |
| Series | SP29 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | CE, RoHS |
| Pole Format | 4+5P |
| Contact Plating | Gold |
| Number of Contacts | 9 |
| Contact Gender | Female |
| Mating Type | Threaded |
| Connector Size | 29 mm |
| Plug/Socket | Plug |
Key Features
- Designed with a threaded interface to prevent miss-mating.
- IP68 rated for waterproof and dustproof performance.
- Constructed from durable Nylon 66 and polycarbonate materials.
- Supports a current rating of 25.5A and voltage up to 500V.
- Contact plating is gold with brass contact material for reliable conductivity.
- Suitable for solder termination and straight orientation.
- Operates reliably between -40°C and 85°C temperature range.
- Ideal for industrial automation, robotics, and testing environments.
Product Description
RS PRO 233-8353 industrial circular connector cable mount plug, featuring 9 female contacts and a 29 mm connector size. This high-quality connector is IP68 rated for exceptional waterproofing and dust resistance, making it suited for challenging industrial and manufacturing environments. It operates at 500V and a current capacity of 25.5A, ensuring stable electrical performance.
The connector has a threaded mating type that provides secure coupling and prevents mismating, which simplifies installation and enhances reliability. It is made from Nylon 66 and polycarbonate housing materials, providing corrosion resistance, impact durability, and long service life in medium-duty applications.
Designed primarily for automation, robotics, testing, and audio applications, this circular connector ensures reliable transmission of signals and power in machinery and control systems. The connector supports solder termination, has a straight orientation for cable mounting, and is suitable for equipment exposed to extreme temperatures from -40°C up to 85°C.
The contacts are brass with gold plating to ensure excellent conductivity and resistance to corrosion. It holds certifications such as CE and RoHS, ensuring adherence to safety and environmental standards.
This RS PRO circular connector is an ideal choice for industrial use cases including instrumentation, process control, assembly lines, and industrial automation where robust, waterproof, and reliable electrical connections are critical.
Designed with a threaded interface to prevent miss-mating. IP68 rated for waterproof and dustproof performance. Constructed from durable Nylon 66 and polycarbonate materials. Supports a current rating of 25.5A and voltage up to 500V.
Contact plating is gold with brass contact material for reliable conductivity. Suitable for solder termination and straight orientation. Operates reliably between -40°C and 85°C temperature range. Ideal for industrial automation, robotics, and testing environments.
CE and RoHS certified to comply with industry standards. Explore EnvMart for more RS PRO Industrial Circular Connectors and related components designed for demanding industrial and electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 25.5A.
It can handle a voltage of up to 500V.
The connector is rated IP68, making it waterproof and dustproof.
It is constructed from Nylon 66 and polycarbonate materials.
This model features 9 female contacts.
It operates reliably between -40°C and 85°C.
It supports solder termination.
The connector has a size of 29 mm.
It uses a threaded mating type to prevent miss-mating.
This connector is CE and RoHS certified, ensuring compliance with safety and environmental standards.
It is ideal for industrial automation, robotics, and testing environments.
The contacts are made of brass with gold plating for reliable conductivity.
